| Model |

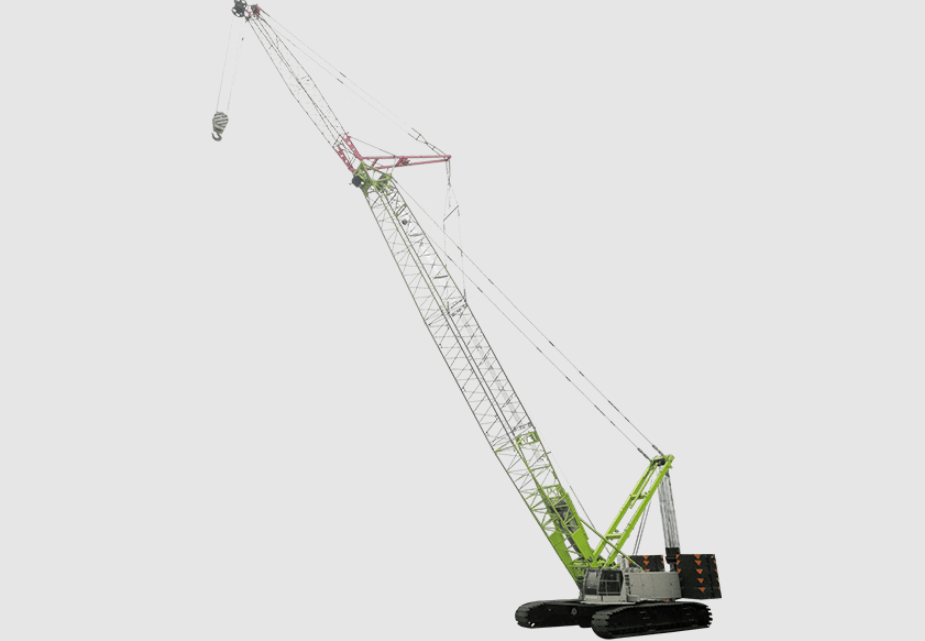

ZCC2600-2 |
| Max. lifting capacity(t) |
260 |
| Max. lifting moment(t·m) |
1332 |
| Main boom length(m) |
20～86 |
| Luffing jib operating mode |
Luffing jib length(m) |
21～80 |
| Max. lifting capacity(t) |
70 |
| Main boom angle(°) |
85、75、65 |
| Connection length of main boom(m) |
23～59 |
| Max. length of main boom + luffing jib(m) |
53+60/59+45 |
| Fixed jib operating mode |
Fixed jib length(m) |
12～30 |
| Max. lifting capacity(t) |
34.8 |
| Main boom angle(°) |
10,30 |
| Connection length of main boom(m) |
29～71 |
| Max. length of main boom + fixed jib(m) |
71 + 30 |
| Main hoisting winch (H1) |
Max. single rope speed(m/min) |
143 (the outermost layer) |
| Rope diameter(mm) |
Φ28 |
| Secondary hoisting winch (H2) |
Max. single rope speed(m/min) |
124 (the outermost layer) |
| Rope diameter(mm) |
Φ28 |
| Main boom derricking winch (E) |
Max. single rope speed(m/min) |
65×2 (the outermost layer) |
| Rope diameter(mm) |
Φ24 |
| Luffing jib derricking winch (W1) |
Max. single rope speed(m/min) |
43 (the outermost layer) |
| Rope diameter(mm) |
Φ28 |
