Inverter

H.S.8504 4030 90

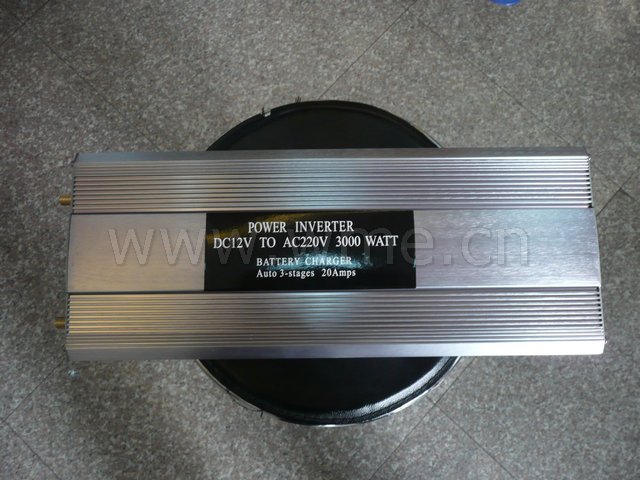

Inverter P3000.jpg (69KB)







An inverter is an electrical device that converts direct current (DC) to alternating current (AC); the converted AC can be at any required voltage and frequency with the use of appropriate transformers, switching, and control circuits.

Static inverters have no moving parts and are used in a wide range of applications, from small switching power supplies in computers, to large electric utility high-voltage direct current applications that transport bulk power. Inverters are commonly used to supply AC power from DC sources such as solar panels or batteries.

The electrical inverter is a high-power electronic oscillator. It is so named because early mechanical AC to DC converters were made to work in reverse, and thus were "inverted", to convert DC to AC.

The inverter performs the opposite function of a rectifier.



Main range:

12V TO 220V

24V TO 220V

12V TO 110V

24V TO 110V



optional:

1) with USB 5V slot.

2) UPS transfer bidirectionally. (work as inverter / charger)





Model Power Surge Power Dimension
L * W * H
Weight Note Photo
P500 500W 1000W 180*150*65mm
P600 600W 1200W 180*150*65mm
P800 800W 1600W 180*150*65mm
P1000 1000W 2000W 270*150*65mm
P1200 1200W 2400W 270*150*65mm
P1500 1500W 3000W 270*150*65mm
P2000 2000W 4000W 270*150*135mm
P2500 2500W 5000W 380*150*135mm
P3000 3000W 6000W 440*220*200mm     Inverter P3000.jpg (69KB)
P6000 6000W 18000W 598*218*178mm 40kg

All specifications are approximate. Specifications are subject to change without notice.
