Smart Garage

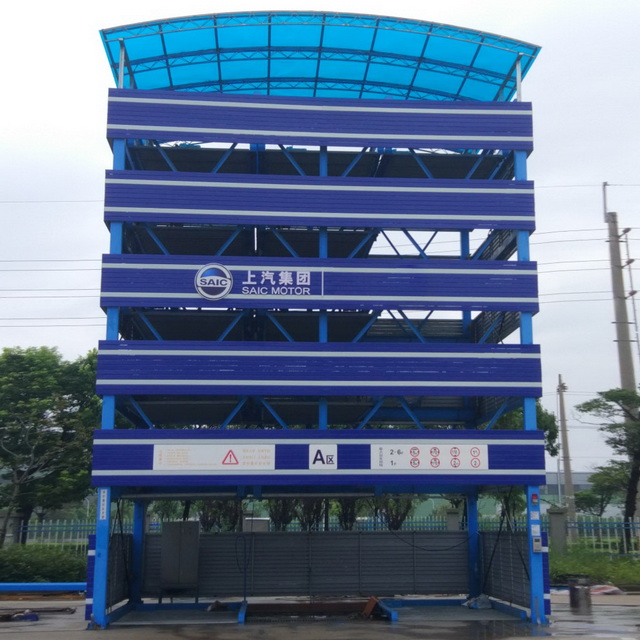

PSH-6

It is suitable for open land. High use rate for land. Big capacity for more cars. Easy installation and maintenance with low cost.

max car dimensions 5000*1850*1550mm
max car weight 1F: 2000KGS; 2F-6F: 1800KGS
drive system chain / wire rope
horizontal speed 8m/min
lifting speed 2F-3F: 5.5m/min; 4F-6F: 7m/min
entry reverse / forward
power 3 phase 5 line alternating current 380V/50HZ

* It can be customized.

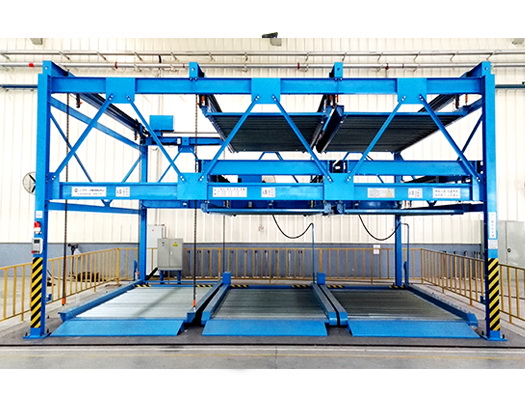

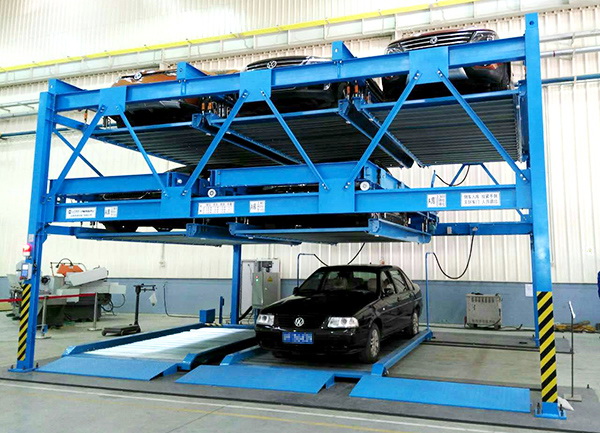

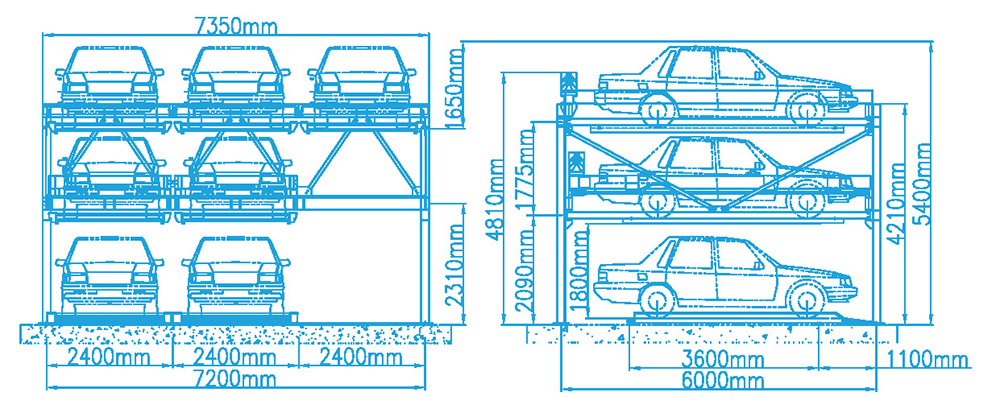

PSH-3

It is suitable for open land. High use rate for land. Big capacity for more cars. Easy installation and maintenance with low cost. It is quick and convenient to get cars.

max car dimensions 5000*1850*1550mm
max car weight 1F: 2000KGS; 2F-3F: 1800KGS
drive system electrical motor, sproket, chain.
horizontal speed 8.2m/min
lifting speed 2F-3F: 4m/min;
max time for loading / unloading 130s
control operation push button
entry reverse / forward
safety quick stop, manual release, anti-fall, car stop, Over-length detection, safety nets.
power 3 phase 5 line alternating current 380V/50HZ

* It can be customized.

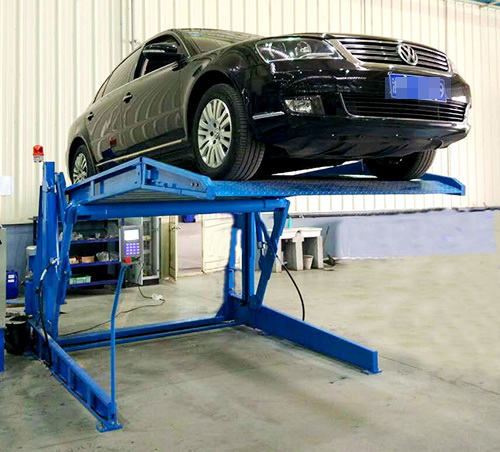

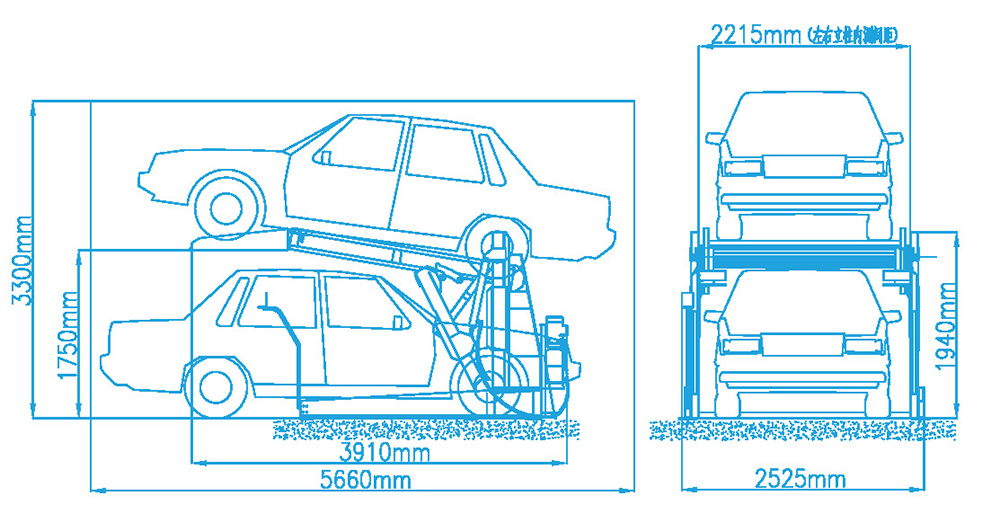

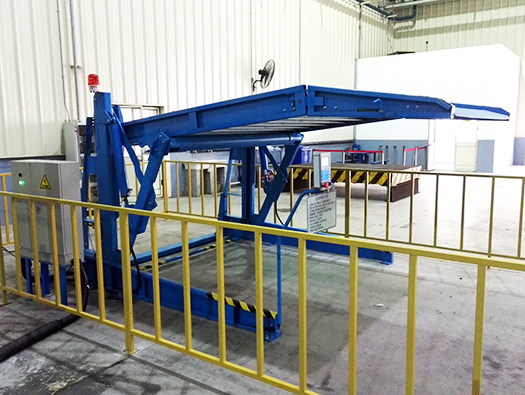

PJS-2Z

Easy lifting, easy operation, high use rate for land, quick installation.

max car dimensions 5000*1850*1550mm
max car weight 1700KGS
drive system hydraulic
raise speed empty 22s/ full load 24s
descend speed empty 30s/ full load 11s
control operation push button
entry reverse / forward
safety quick stop, manual release, anti-fall, car stop
power 1 phase 3 line alternating current 220V/50HZ

* It can be customized.

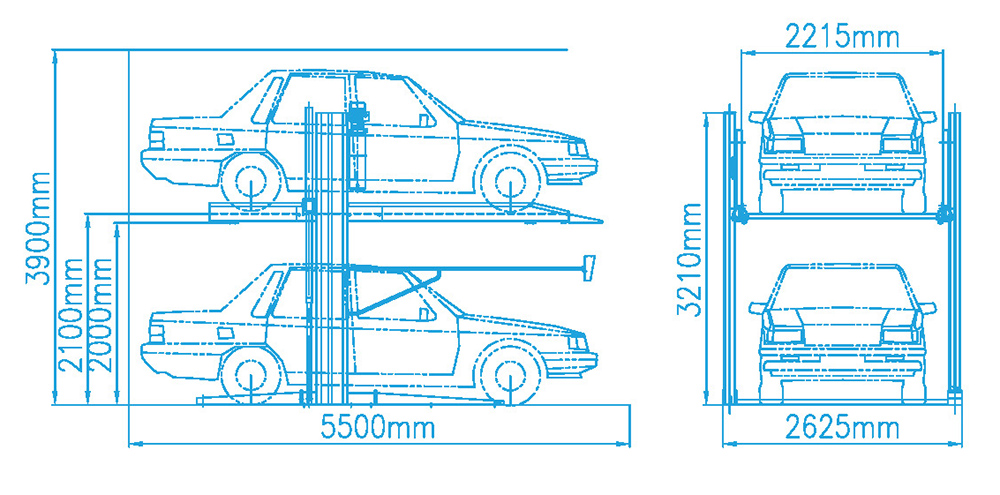

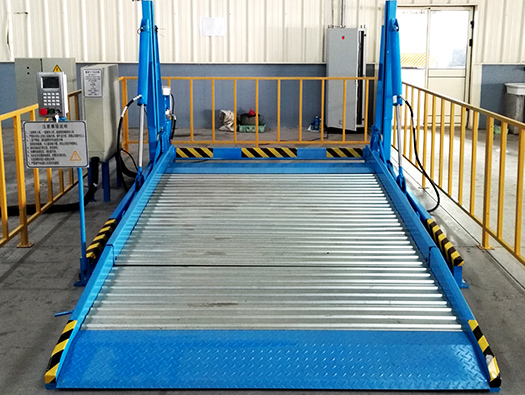

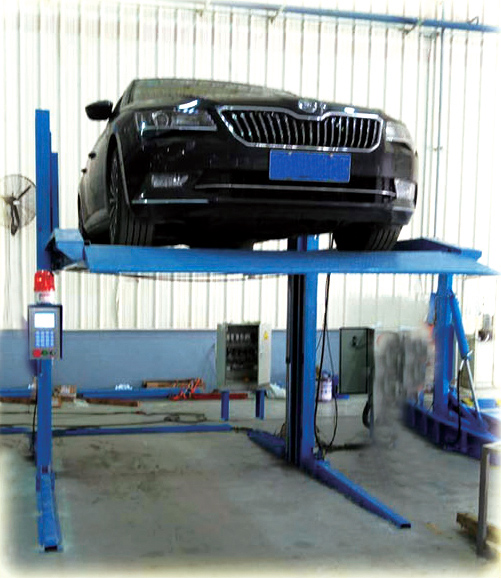

PJS-2S

Easy lifting, easy operation, high use rate for land, quick installation.

max car dimensions 5000*1850*1750mm
max car weight 1700KGS
drive system hydraulic
raise speed 1.4m/min
descend speed 6m/min
control operation push button
entry reverse / forward
safety quick stop, manual release, anti-fall, car stop
power 1 phase 3 line alternating current 220V/50HZ

* It can be customized.
