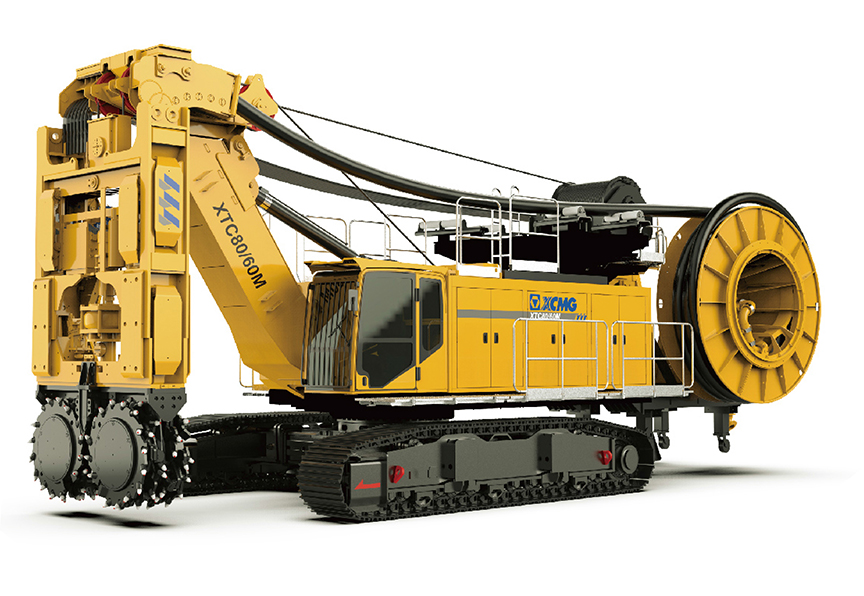

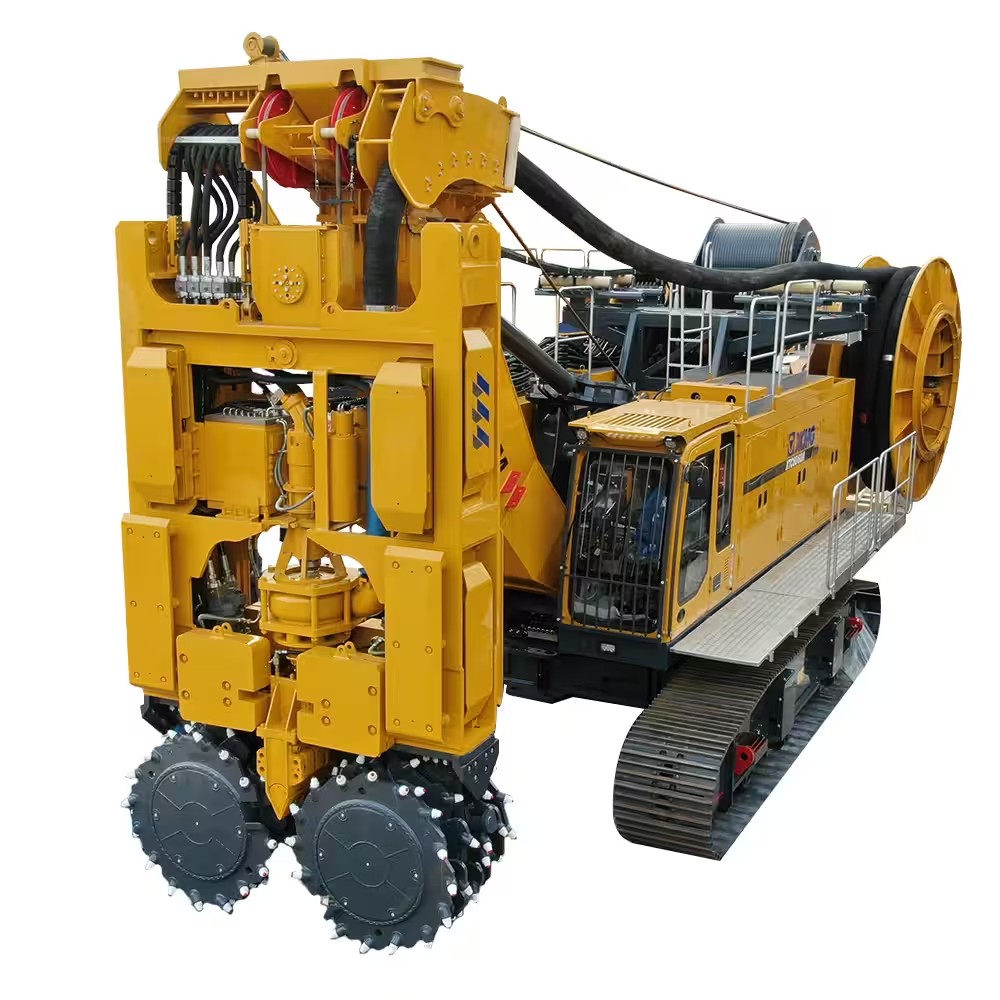

XCMG XTC80/60M

XTC80/60M - XCMG XTC80/60M - trench cutter XTC80/60M

Model	XTC80/60M
power	Cummins QSK19 567kw@2100rpm
trench width	800~1500mm
max wall depth	60m
trench length	2800mm
trench accuracy	2‰
max torque	2x80kN.m
rotary speed	0~25rpm
max pull-down piston pull	630kN
rope diameter	32mm
slag discharge way	pump lift discharge
type of base machine	special
system pressure	32Mpa
working radius	4900~5100mm
track shoe width	800mm
traveling speed	1.3km/h
max grade ability	30%
min clearance	450mm
dimension in working	1365065756000mm
dimension in transporation	1160035003416mm
total weight	125t

XCMG trench cutter

XCMG XTC100/105

XCMG rotary drilling rig

XCMG multi-function drilling rig

XCMG diaphragm wall grab

All specifications are approximate. Specifications are subject to change without notice.
