| Model |

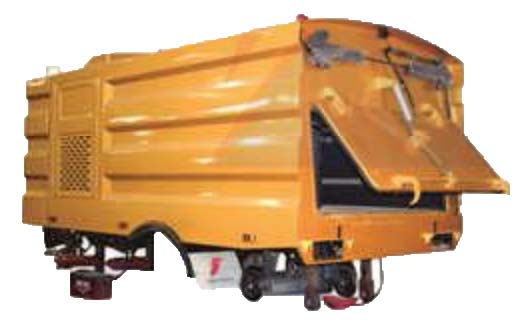

4CBM-SWEEPER |
| Chassis Brand |
ISUZU, Hino, Nissan (Any brand) |
| Overall Dimension |
According to Design
|
| Drive Type |
4X2,6x4 (LHD or RHD) |
| Tech Drawing |
Necessary |
| Wheelbase/No. of axle |
From 2600 mm to 5000 mm /2 |
| Tire Specification |
7.00-16 or optional |
| Operation Panel |
English |
| Dustbin Capacity |
4 CBM (can be optional) |
| Dustbin Material |
Stainless Steel |
| Water Tank volume |
1,000 Liters (can be optional) |
| Water Tank Material |
Stainless Steel |
| Sweeping Capacity |
45,000 m3/h |
| Sweeping Speed |
3-15 km/h |
| Max Sweeping Width |
2800 mm~3500 mm |
| Brooms |
2 sets at each side |
| Sweeping efficiency |
≥96% |
| Garbage dump angle |
50° |
| Max suction capacity |
Suction density 2.0g/cm3
Suction fineness 100mm |
| Auxiliary Engine |
ISUZU tech engine 77 HP (57 KW), super powerful |
|
|
