Bitcoin Mining Hardware

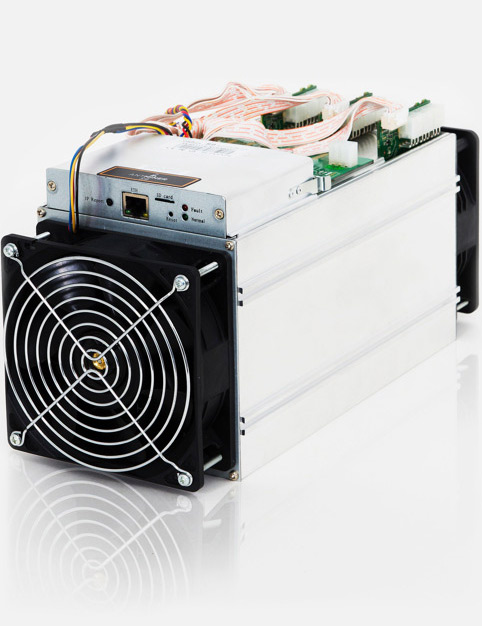

China Bitcoin Mining Hardware: AntMinder S9

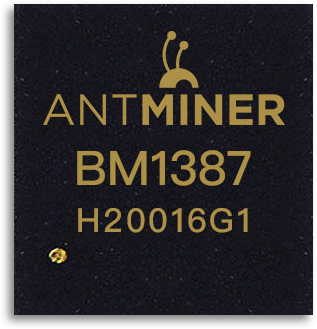

The BM1387 ASIC Chip

The world's first bitcoin mining ASIC based on the 16nm process node

Bitmain's BM1387 chip is built using TSMC's 16nm FinFET technology and, delivering a record-breaking 0.098 J/GHs, is the world's most efficient bitcoin mining chip in the consumer market.

Each Antminer S9 employs 189 such chips to deliver more hashrate and efficiency than any bitcoin miner ever made.





A Compact Time-tested Design

World's most powerful bitcoin miner, yet smaller than many portable boom-boxes

The Antminer S9 follows the same form factor as that of the hugely popular Antminer S7 and is nearly the same size. Yet it has more than thrice the power and twice the efficiency of the S7.

Each Antminer S9 employs 189 such chips to deliver more hashrate and efficiency than any bitcoin miner ever made.





Controlled by a Dual ARM® Cortex®-A9 Microprocessor

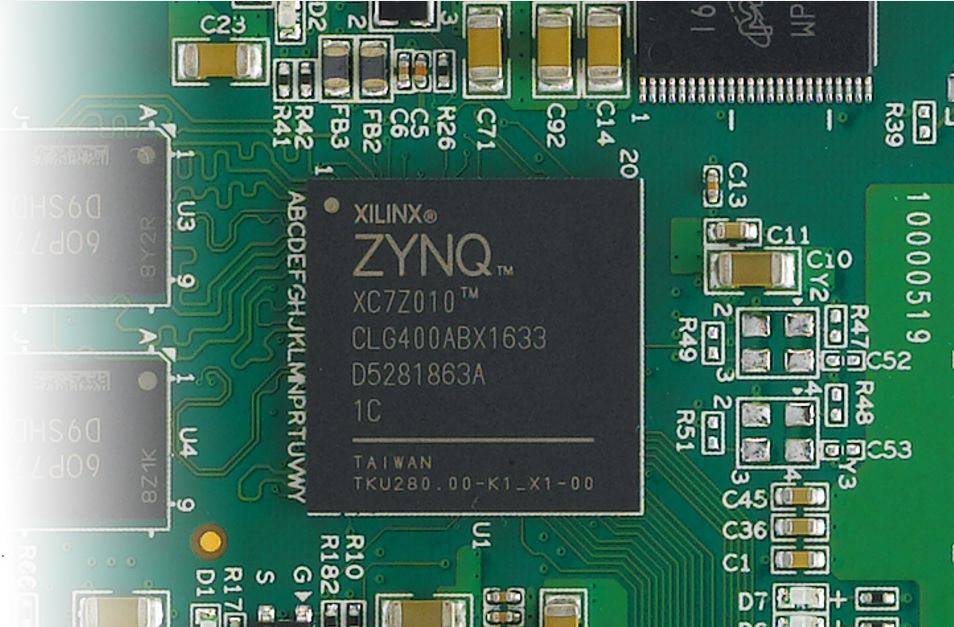

S9's control board uses a Xilinx® Zynq®-7000 series FPGA with a Dual ARM® Cortex®-A9 microprocessor

Bitmain's engineering team understood the importance of every detail while working to make the world's most power-efficient yet powerful Bitcoin miner. The Antminer S9's control board employs the fast Dual ARM® Cortex®-A9 microprocessor with CoreSight™ and supports Gigabit Ethernet to ensure that mined blocks are submitted instantly.





Engineered to Remain Powerful Yet Cool

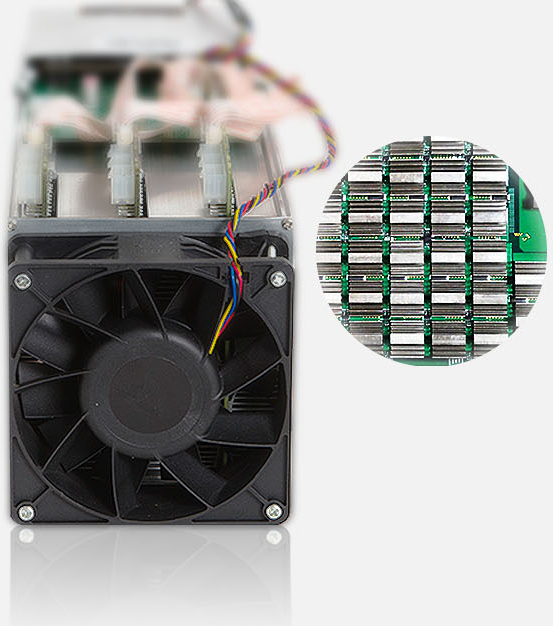

A high-grade aluminium case, customized heat-sinks and two computer-controlled fans to keep it cool

The S9 utilizes a combination of conduction and convection cooling to make the world's most powerful miner perform best without getting hotter than any other terahash bitcoin miner.

Every chip of the S9 is fitted with custom-made heat sinks that are made of a high-grade Aluminium alloy. The case of the S9 is made of the same material. Two computer-controlled high speed fans on both ends of the "tube" ensure that the hot air is rapidly replaced by cooler air at the required pace.





Ease of Use

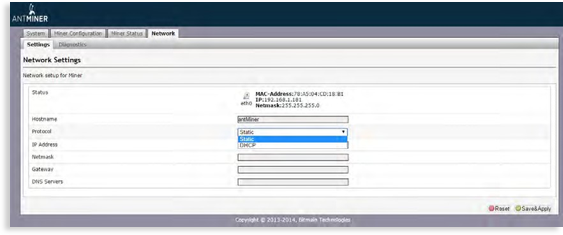

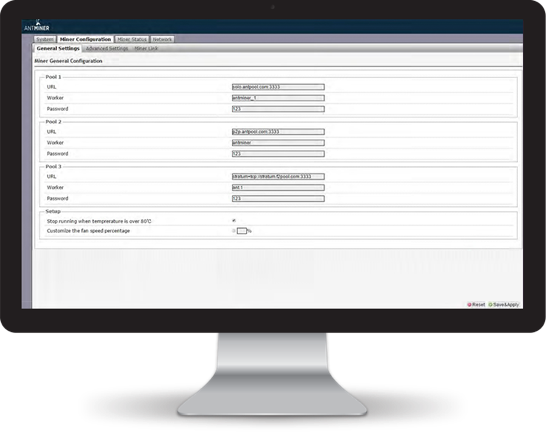

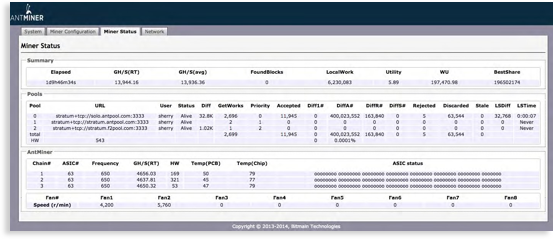

Antminer's user interface has been carefully designed keeping in mind the needs of our users

After you have accessed the Antminer's user interface, all you have to do is to enter your wallet address and mining pool settings before you start mining. The user interface also allows you to customize settings and can be upgraded to new releases from Bitmain.
