DEUTZ engine

made in

DEUTZ China factory

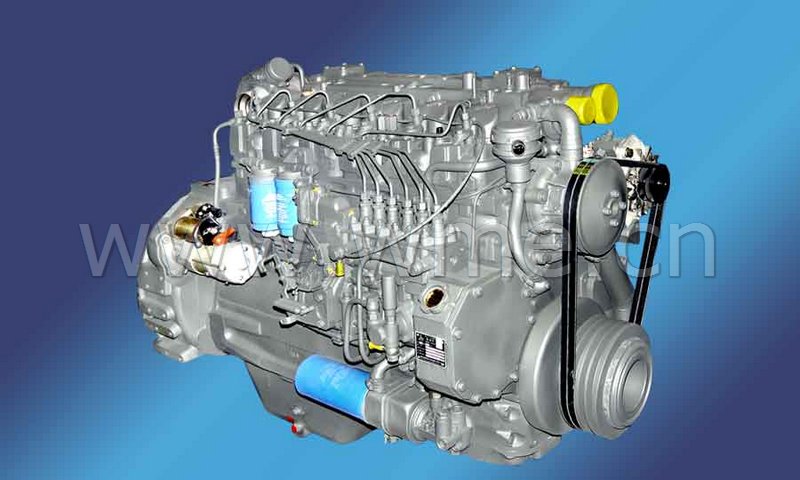

DEUTZ engine, DEUTZ China factory, 226B series





DEUTZ engine 226B series for gen-sets are produced in our DEUTZ China factory. Cylinder diameter 105mm, stroke 120mm. These engines are with 3, 4, or 6 cylinders.



There are two type for 3-cylinder engine: 1) natural air-in, 2) charged.

4-cylinder engine is charged.

There are two type for 6-cylinder engine: 1) charged, 2) charged and with intercooler.



Power range: 30~145KW. Running speed: 1500rpm or 1800rpm.

Flywheel are with popular SAE1 or SAE3.

24V electrical starter system. (12V system available on request)







226B系列发电用柴油机型谱表
226B Series Diesel Engine Range for Gen-sets
型号
Model		 D226B-3D D226B-4D TD226B-3D TD226B-4D TD226B-6D TBD226B-6D TBD226B-6D5 D226B-3D1 D226B-4D1 TD226B-3D1 TD226B-4D1 TD226B-6D1 TBD226B-6D1
型式Type 直列、直喷、四冲程、湿式气缸套
In-Line，Direct-Injection，Four -Stroke，Wet -Cylinder Liner
缸径/行程
Bore/stroke(mm)		 105/120
总排量
Displacement(L)		 3 4 3 4 6 6 6 3 4 3 4 6 6
气缸数
Cylinder numbers 		3 4 3 4 6 6 6 3 4 3 4 6 6
常用功率/转速
Prime power/speed
(kW/r/min)		 30/1500 40/1500 45/1500 60/1500 90/1500 120/1500 132/1500 36/1800 46/1800 50/1800 70/1800 105/1800 135/1800
备用功率
Standby power(kW)		 33 44 50 66 99 132 145 40 51 55 77 116 149
起动方式Starting method 电起动Electric
冷却方式 Cooling method 闭式水冷
Closed water cooled
调速方式
Governing method		 机械/电子Mechanical/Electronic
进气方式
Aspiration method 		自然吸气
Natural apirated 		自然吸气
Natural apirated 		增压
Turbocharged 		增压
Turbocharged		 增压
Turbocharged		 增压中冷
Turbocharged intercooled		 增压中冷Turbocharged intercooled 自然吸气
Natural apirated		 自然吸气
Natural apirated		 增压
Turbocharged		 增压
Turbocharged		 增压
Turbocharged		 增压中冷Turbocharged intercooled
额定工况燃油耗
Fuel consumption(g/kW.h)		 ≤208 ≤208 ≤208 ≤208 ≤208 ≤205 ≤205 ≤208 ≤208 ≤208 ≤208 ≤208 ≤205
噪声
Noise @ 1m dB(A)		 ≤105
曲轴旋转方向Rotation direction of crankshaft 逆时针(面向飞轮端)
Counter clockwise(face to flywheel end)

All specifications are approximate. Specifications are subject to change without notice.

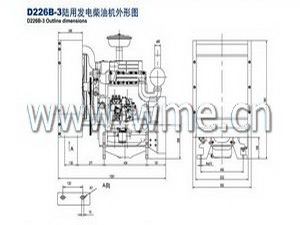

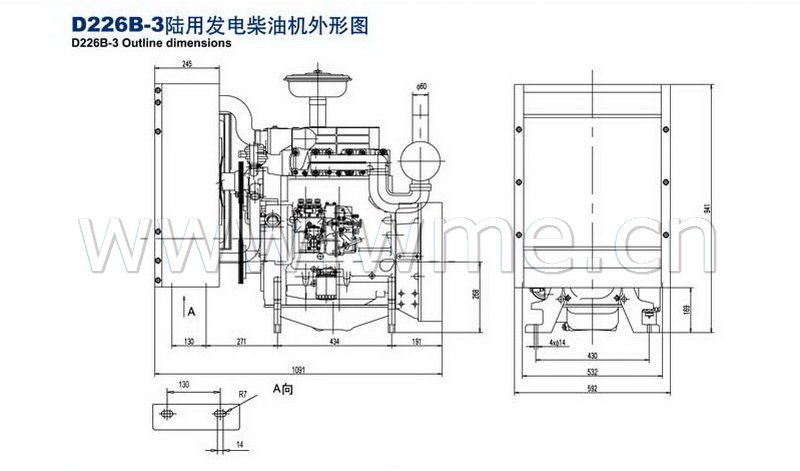

DEUTZ engine D226B-3 outline dimensions

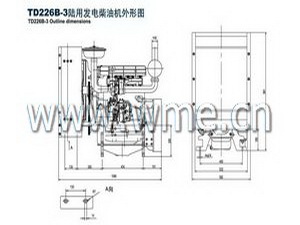

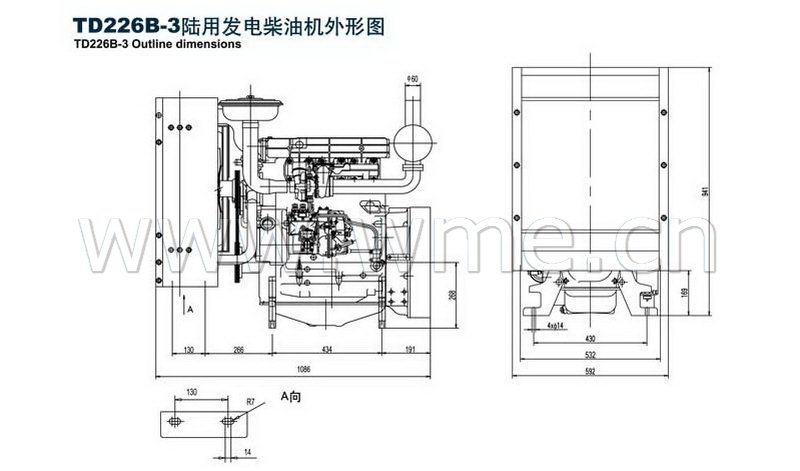

DEUTZ engine D226B-3 outline dimensions		 DEUTZ engine TD226B-3 outline dimensions

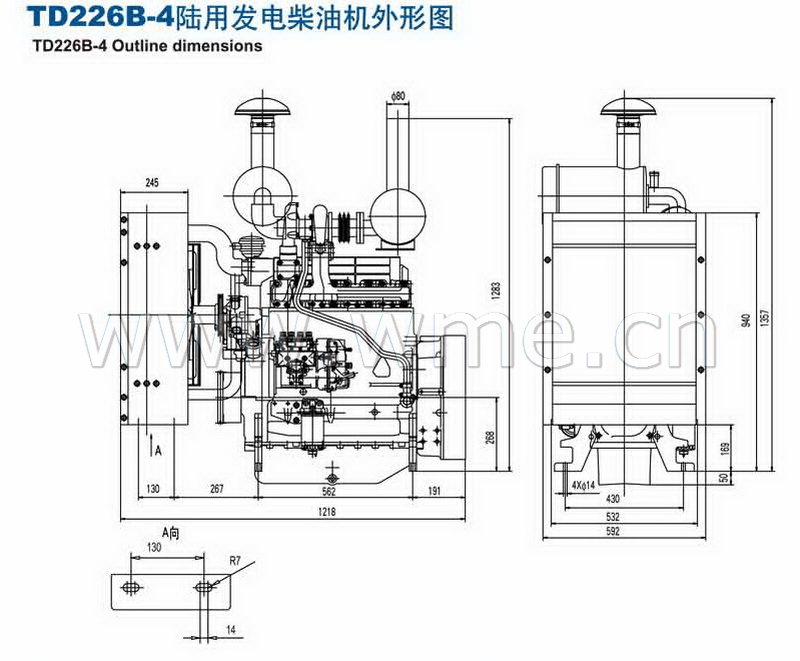

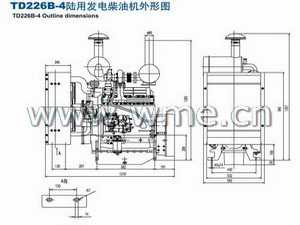

DEUTZ engine TD226B-3 outline dimensions		 DEUTZ engine TD226B-4 outline dimensions
DEUTZ engine TD226B-4 outline dimensions

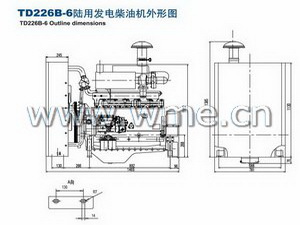

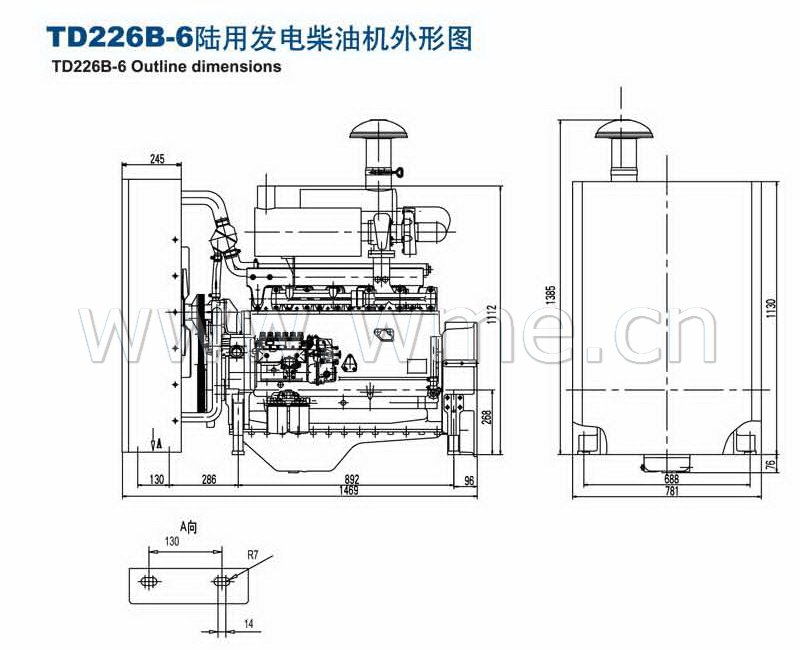

DEUTZ engine TD226B-6 outline dimensions

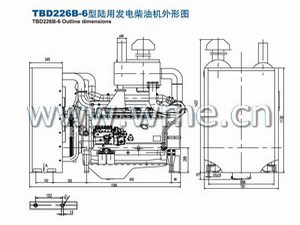

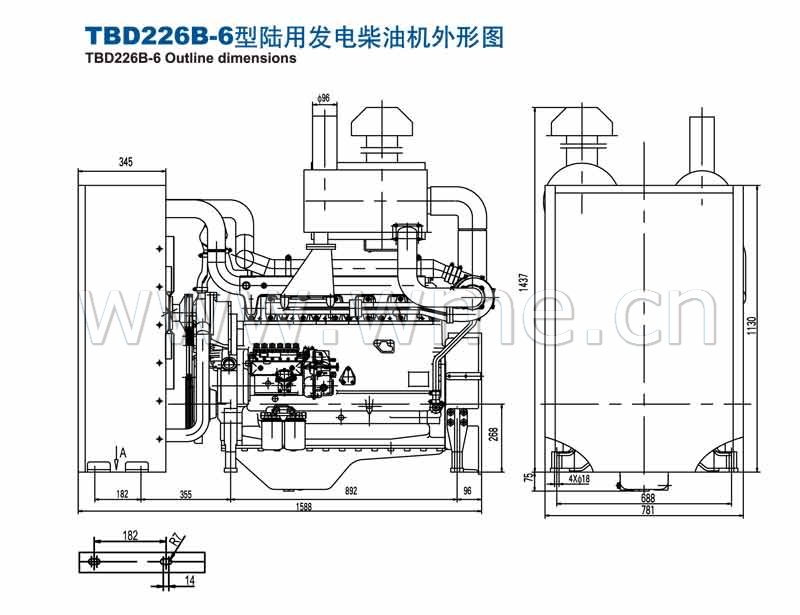

DEUTZ engine TD226B-6 outline dimensions		 DEUTZ engine TBD226B-6 outline dimensions

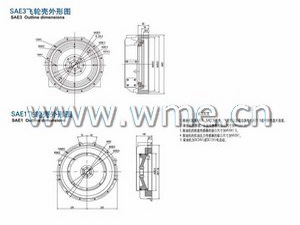

DEUTZ engine TBD226B-6 outline dimensions		 DEUTZ engine flywheel outline dimensions

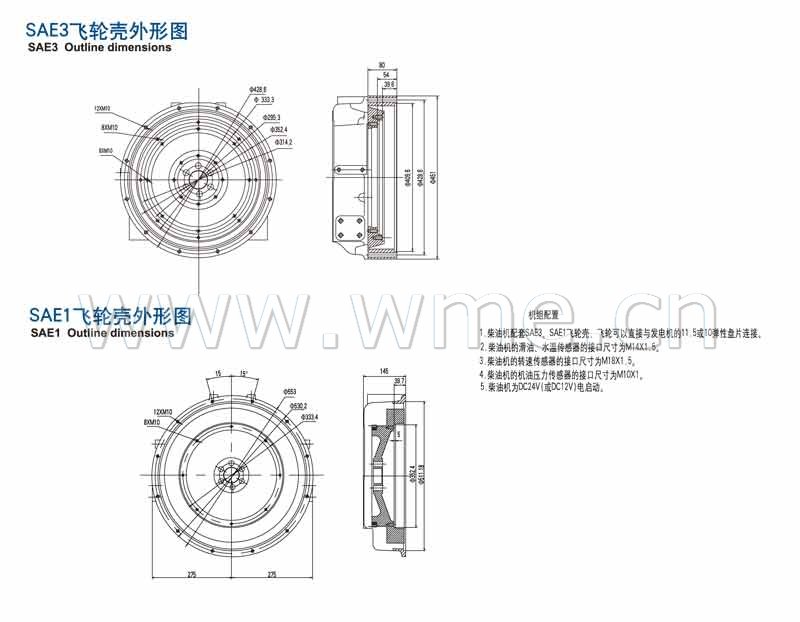

DEUTZ engine flywheel outline dimensions





DEUTZ engine family for construction equipment

Model Rated Power Weight Dimension
L * W * H		 Note Photo
BF6L913C 141KW@2500rpm 510KGS 1134*711*990mm   DEUTZ engine BF6L913C
BF6L913 118KW@2500rpm 485KGS 1134*711*910mm   DEUTZ engine BF6L913
F6L913 85KW@2500rpm 420KGS 1120*673*815mm   DEUTZ engine F6L913
BF4L913 78KW@2500rpm 350KGS 865*692*845mm   DEUTZ engine BF4L913
F4L913 56KW@2500rpm 310KGS 860*673*820mm   DEUTZ engine F4L913

F6L912T 85KW@2500rpm 420KGS 1125*673*815mm   DEUTZ engine F6L912T
F6L912 78KW@2500rpm 410KGS 1120*673*815mm   DEUTZ engine F6L912
F4L912T 52KW@2500rpm 315KGS 865*673*815mm   DEUTZ engine F4L912T
F4L912 51KW@2500rpm 300KGS 860*673*815mm   DEUTZ engine F4L912
F3L912 38KW@2500rpm 275KGS 730*673*815mm   DEUTZ engine F3L912
F2L912 22KW@2500rpm 245KGS 678*704*872mm   DEUTZ engine F2L912





Model Rated Power Weight Dimension
L * W * H		 Note Photo
F6L912W 69KW@2500rpm 410KGS 1120*673*815mm   DEUTZ engine F6L912W
F4L912W 44KW@2500rpm 300KGS 860*673*815mm   DEUTZ engine F4L912W
F3L912W 33KW@2500rpm 275KGS 730*673*815mm   DEUTZ engine F3L912W

CA498 62.5KW@3600rpm 245KGS 684*603*722mm   DEUTZ engine CA498
CA4D32 66~68KW@2900~3400rpm 265/290KGS 855*740*775mm   DEUTZ engine CA4D32
CA4DC 76~88KW@3200rpm 260/290KGS 790*784*796mm   DEUTZ engine CA4DC

CA6DE2 117KW@2300rpm 650KGS 1284*680*1023mm   DEUTZ engine CA6DE2
CA6DE3 132~162KW@2300rpm 680KGS 1284*680*1023mm   DEUTZ engine CA6DE3

CA4DF 96~125KW@2500rpm 570KGS 952*622*921mm   DEUTZ engine CA4DF
CA6DF 177~206KW@2300rpm 700KGS 1358*975*1148mm   DEUTZ engine CA6DF
CA6DFL 197~251KW@2300rpm 800KGS 1358*975*1178mm   DEUTZ engine CA6DFL

BF6M2012 118~170KW@2500rpm 509KGS 1027*595*907mm   DEUTZ engine BF6M2012
BF4M2012 90~118KW@2500rpm 391KGS 799*601*832mm   DEUTZ engine BF4M2012
BF6M1013 162~220KW@2300rpm 650KGS 1266*600*952mm   DEUTZ engine BF6M1013
BF4M1013 117~140KW@2300rpm 520KGS 913*600*950mm   DEUTZ engine BF4M1013





DEUTZ engine family for generator set

Model Rated Power Weight Dimension
L * W * H		 Note Photo
BFM1015C series

power range 231~490kw

can be started -35℃

low noise <98dB

 DEUTZ engine BFM1015C
B/FL413F/513 series         DEUTZ engine B/FL413F/513
HC4132 series         DEUTZ engine HC4132





explosion-proof DEUTZ engine

Model Rated Power Weight Dimension
L * W * H		 Note Photo

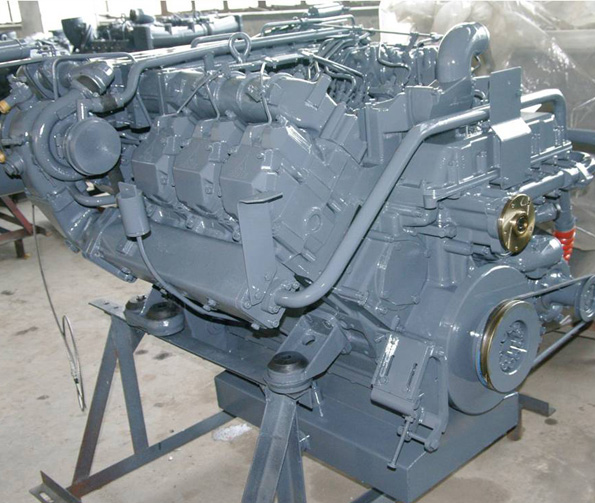

BF6M1015C 200~261kW@2100rpm

allowed height 2000m above sea level

 DEUTZ engine BF6M1015C





DEUTZ engine for natural gas

Model Rated Power Weight Dimension
L * W * H		 Note Photo

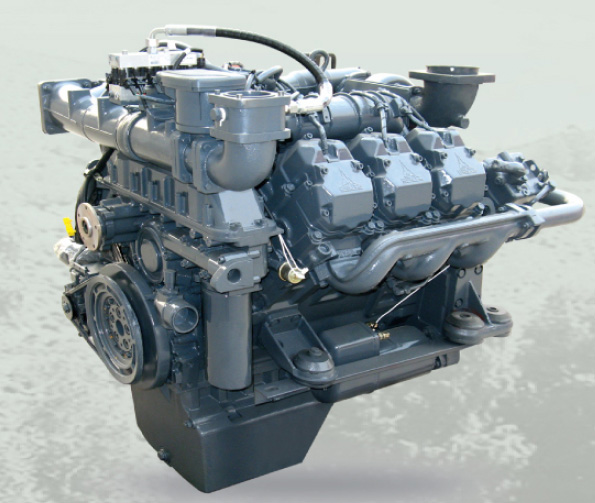

BF6M1015GCP

For truck use: 279kW~308kW(6 cylinder)/400kW(8 cylinder)@2100rpm

For generator set use: 300kW(6 cylinder)/400kW(8 cylinder)@1500rpm

 DEUTZ engine BF6M1015GCP





DEUTZ engine family for truck

Model Rated Power Weight Dimension
L * W * H		 Note Photo

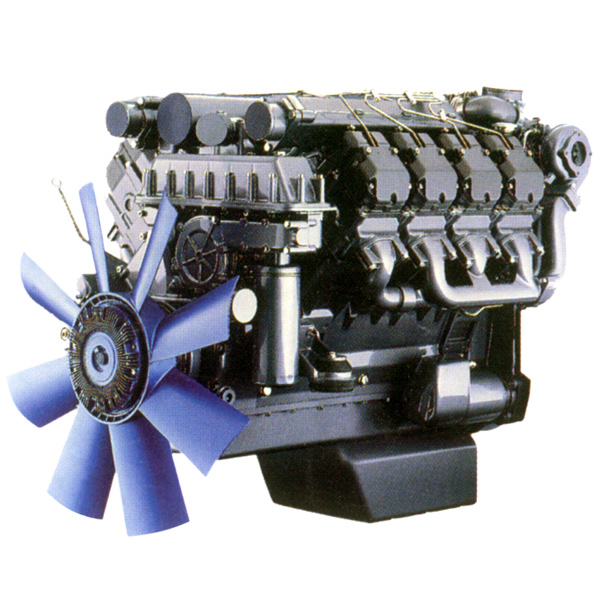

BF8M1015C         DEUTZ engine BF8M1015C
BF6M1015C         DEUTZ engine BF6M1015C

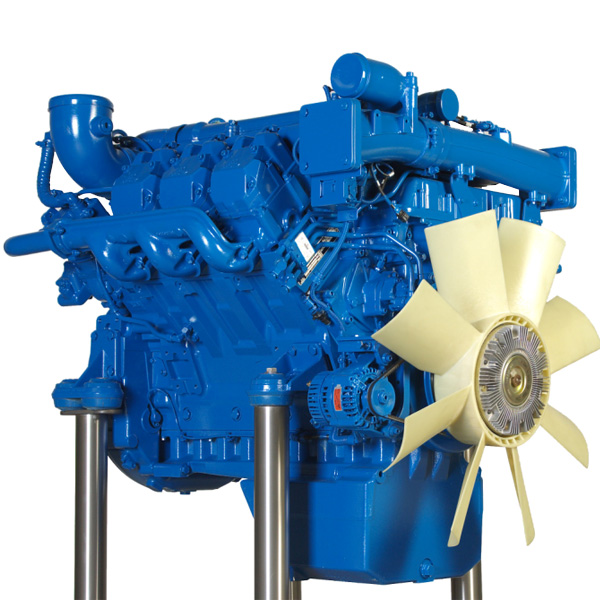

TCD2015V06         DEUTZ engine TCD2015V06

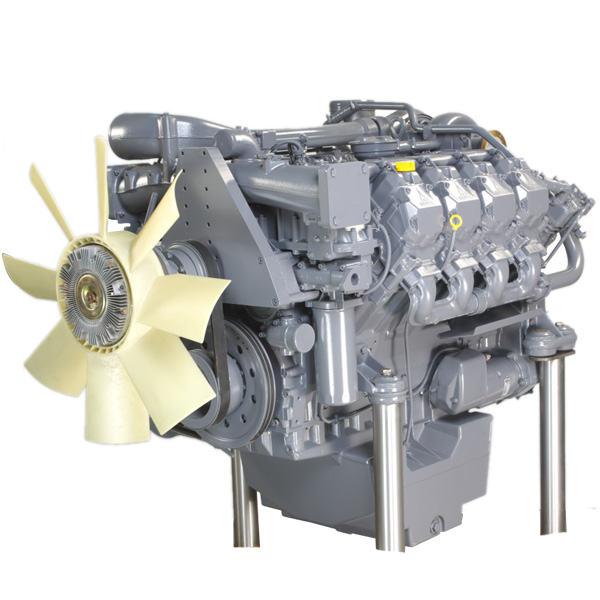

TCD2015V08         DEUTZ engine TCD2015V08





DEUTZ engine family for truck

Model Aspiration   Bore*Stroke Rated Power Max Torque Fuel System Weight Dimension
L * W * H		 Note
CA498 air-in naturally EUⅠ 98*105mm 62.5KW@3600rpm 192N.m@2100rpm Mechanical in-line pump, VE pump 245KGS 684*603*722mm
CA498Z Turbocharged EUⅡ 98*105mm 62.5KW@3600rpm 196N.m@2100rpm Mechanical in-line pump, VE pump
CA4D32TC Turbocharged Inter-Cooled EUⅡ 98*105mm 66~88KW@3200rpm 210~300N.m@2000rpm Mechanical in-line pump, VE pump
CA4D32 Turbocharged Inter-Cooled EUⅡ 98*105mm 66~88KW@3200rpm 210~300N.m@2000rpm Mechanical in-line pump, VE pump 265/290KGS 855*740*775mm
CA4DC Turbocharged Inter-Cooled EUⅢ 98*105mm 76~88KW@3200rpm 245~320N.m@2000rpm Electronic controlled common rail 260/290KGS 790*784*796mm
CA4110/125Z Turbocharged EUⅡ 110*125mm 88~102KW@2500rpm 420~480N.m@1500rpm Mechanical in-line pump
CA4DF2 Turbocharged Inter-Cooled EUⅡ 110*125mm 96~125KW@2300rpm 450~610N.m@1500rpm Mechanical in-line pump
CA4DF3 Turbocharged Inter-Cooled EUⅢ 110*125mm 96~125KW@2300rpm 450~610N.m@1500rpm Electronic controlled unit pump
BF4M2012 Turbocharged Inter-Cooled EUⅡ 101*126mm 90~103KW@2500rpm 410~530N.m@1500rpm Mechanical in-line pump 391KGS 799*601*832mm
BF4M2012E3 Turbocharged Inter-Cooled EUⅢ 101*126mm 90~118KW@2500rpm 410~590N.m@1500rpm Electronic controlled unit pump
BF4M1013 Turbocharged Inter-Cooled EUⅡ 108*130mm 117~140KW@2300rpm 580~700N.m@1400rpm Mechanical in-line pump 520KGS 913*600*950mm
BF4M1013E3 Turbocharged Inter-Cooled EUⅢ 108*130mm 117~140KW@2300rpm 580~700N.m@1400rpm Electronic controlled unit pump
CA6DE1 Turbocharged Inter-Cooled EUⅠ 106*125mm 117~177KW@2300rpm 560~890N.m@1400rpm Mechanical in-line pump
CA6DE2 Turbocharged Inter-Cooled EUⅡ 106*125mm 117~177KW@2300rpm 560~890N.m@1400rpm Mechanical in-line pump 650KGS 1284*680*1023mm
CA6DE3 Turbocharged Inter-Cooled EUⅢ 106*125mm 132~162KW@2300rpm 650~770N.m@1400rpm Electronic controlled unit pump 680KGS 1284*680*1023mm
CA6DF4 Turbocharged Inter-Cooled EUⅢ 101*126mm 132~162KW@2300rpm 650~770N.m@1400rpm Electronic controlled unit pump
BF6M2012 Turbocharged Inter-Cooled EUⅡ 101*126mm 118~163KW@2500rpm 590~770N.m@1500rpm Mechanical in-line pump 509KGS 1027*595*907mm
BF6M2012E3 Turbocharged Inter-Cooled EUⅢ 101*126mm 118~170KW@2500rpm 590~850N.m@1500rpm Electronic controlled unit pump
BF6M2013 Turbocharged Inter-Cooled EUⅡ 108*130mm 162~220KW@2300rpm 770~1100N.m@1400rpm Mechanical in-line pump
BF6M1012E3 Turbocharged Inter-Cooled EUⅢ 108*130mm 162~220KW@2300rpm 770~1100N.m@1400rpm Electronic controlled unit pump
CA6DF1 Turbocharged Inter-Cooled EUⅠ 110*125mm 177~206KW@2300rpm 890~960N.m@1400rpm Mechanical in-line pump
CA6DF2 Turbocharged Inter-Cooled EUⅡ 110*125mm 177~206KW@2300rpm 890~960N.m@1400rpm Mechanical in-line pump
CA6DF3 Turbocharged Inter-Cooled EUⅢ 110*125mm 177~192KW@2300rpm 890~930N.m@1400rpm Electronic controlled unit pump
CA6DF2L Turbocharged Inter-Cooled EUⅡ 113*135mm, 113*140mm 196~251KW@2300rpm 1150~1350N.m@1400rpm Mechanical in-line pump
CA6DF3L Turbocharged Inter-Cooled EUⅢ 113*135mm, 113*140mm 196~251KW@2300rpm 1150~1350N.m@1400rpm Electronic controlled unit pump
CA4SC1 Turbocharged Inter-Cooled EUⅢ 98*105mm   245N.m@2000rpm Electronic controlled
CA6SF Turbocharged Inter-Cooled EUⅢ, EUⅠ 110*125mm 132~170KW@2300rpm 650~800N.m@1400rpm Electronic controlled
CA6SE Turbocharged Inter-Cooled EUⅢ, EUⅠ 106*125mm   700N.m@1400rpm Electronic controlled





DEUTZ engine family for bus

Model Aspiration   Bore*Stroke Rated Power Max Torque Fuel System Weight Dimension
L * W * H		 Note
CA4D32TC Turbocharged Inter-Cooled EUⅡ 98*105mm 66~88KW@3200rpm 210~300N.m@2000rpm Mechanical in-line pump, VE pump
CA4D32 Turbocharged Inter-Cooled EUⅡ 98*105mm 66~88KW@3200rpm 210~300N.m@2000rpm Mechanical in-line pump, VE pump 265/290KGS 855*740*775mm
CA4DC Turbocharged Inter-Cooled EUⅢ 98*105mm 76~88KW@2500rpm 245~320N.m@2000rpm Electronic controlled common rail 260/290KGS 790*784*796mm
CA4DF2 Turbocharged Inter-Cooled EUⅡ 110*125mm 96~125KW@2300rpm 450~610N.m@1500rpm Mechanical in-line pump
CA4DF3 Turbocharged Inter-Cooled EUⅢ 110*125mm 96~125KW@2300rpm 450~610N.m@1500rpm Electronic controlled unit pump
BF4M2012 Turbocharged Inter-Cooled EUⅡ 101*126mm 90~103KW@2500rpm 410~530N.m@1400rpm Mechanical in-line pump 391KGS 799*601*832mm
BF4M2012E3 Turbocharged Inter-Cooled EUⅢ 101*126mm 90~118KW@2500rpm 410~590N.m@1400rpm Electronic controlled unit pump
BF4M1013 Turbocharged Inter-Cooled EUⅡ 108*130mm 117~140KW@2300rpm 580~700N.m@1500rpm Mechanical in-line pump 520KGS 913*600*950mm
BF4M1013E3 Turbocharged Inter-Cooled EUⅢ 108*130mm 117~140KW@2300rpm 580~700N.m@1500rpm Electronic controlled unit pump
CA6DE2 Turbocharged Inter-Cooled EUⅡ 106*125mm 117~177KW@2300rpm 560~890N.m@1500rpm Mechanical in-line pump 650KGS 1284*680*1023mm
CA6DE3 Turbocharged Inter-Cooled EUⅢ 106*125mm 132~162KW@2300rpm 650~770N.m@1500rpm Electronic controlled unit pump 680KGS 1284*680*1023mm
CA6DE4 Turbocharged Inter-Cooled EUⅢ 106*125mm 132~162KW@2300rpm 650~770N.m@1500rpm Electronic controlled unit pump
BF6M2012 Turbocharged Inter-Cooled EUⅡ 101*126mm 118~162KW@2500rpm 590~770N.m@1400rpm Mechanical in-line pump 509KGS 1027*595*907mm
BF6M2012E3 Turbocharged Inter-Cooled EUⅢ 101*126mm 118~170KW@2500rpm 590~850N.m@1400rpm Electronic controlled unit pump
BF6M1013 Turbocharged Inter-Cooled EUⅡ 108*130mm 162~220KW@2300rpm 770~1100N.m@1400rpm Mechanical in-line pump 650KGS 1266*600*952mm
BF6M1013E3 Turbocharged Inter-Cooled EUⅢ 108*130mm 162~220KW@2300rpm 770~1100N.m@1400rpm Electronic controlled unit pump
CA6DF2 Turbocharged Inter-Cooled EUⅡ 110*125mm 177~206KW@2300rpm 890~960N.m@1400rpm Mechanical in-line pump
CA6DF3 Turbocharged Inter-Cooled EUⅢ 110*125mm 177~192KW@2300rpm 890~960N.m@1400rpm Electronic controlled unit pump
CA6DF2L Turbocharged Inter-Cooled EUⅡ 113*135mm, 113*140mm 197~251KW@2300rpm 1150~1350N.m@1400rpm Mechanical in-line pump
CA6DF3L Turbocharged Inter-Cooled EUⅢ 113*135mm, 113*140mm 197~251KW@2300rpm 1150~1350N.m@1400rpm Electronic controlled unit pump
CA4SC1 Turbocharged Inter-Cooled EUⅢ 98*105mm 76KW@3400rpm 245N.m@2000rpm Electronic controlled
CA6SF Turbocharged Inter-Cooled EUⅢ, EUⅡ 110*125mm 132~170KW@2300rpm 650~800N.m@1400rpm Electronic controlled
CA6SE Turbocharged Inter-Cooled EUⅢ, EUⅡ 116*125mm 155KW@2300rpm 700N.m@1400rpm Electronic controlled





DEUTZ engine family for construction equipment

Model Usage
BF4M2012, BF6M2012, BF4M1013, BF6M1013 excavator
BF4M2012, BF6M2012, BF4M1013, BF6M1013 road roller
BF4M2012, BF6M2012, BF4M1013, BF6M1013 air compressor
BF4M2012, BF6M2012, BF4M1013, BF6M1013 paver
BF4M2012, BF6M2012, BF4M1013, BF6M1013 concrete pump
BF4M2012, BF6M2012, BF4M1013, BF6M1013 agricultural machine / tractor

BF4M2012, BF6M2012, BF4M1013, BF6M1013, CA498, CA4DF

BFM1015C, B/FL413F/513, HC4132

 generator set
BF4M2012, BF6M2012, BF4M1013, BF6M1013, CA498 forklift

BFM1015HC marine
BF6M1015GCP natural gas engine
BF6M1015C explosion-proof engine
BF8M1015CP
