Pipelayer

H.S. 8426 9900 00

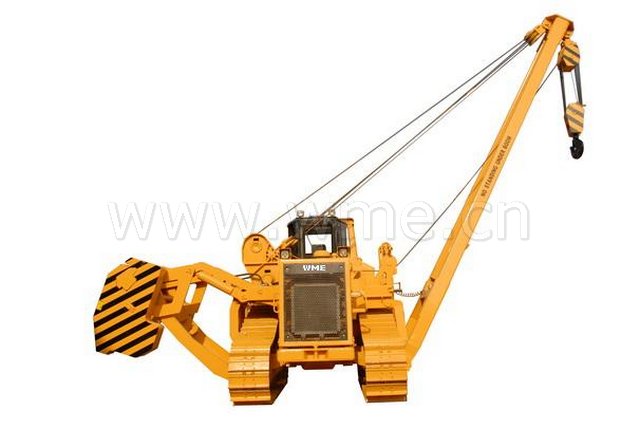

Pipelayer DGY55



* Pipelayer is the important equipment in petroleum and gas pipeline construction project. Pipelayer is usually with sideboom. The pipelayer is mainly for laying, fitting, connecting big diameter pipe. So the pipelayer can lift up and down the pipe, and the pipelayer's arm can swing for adjusting the pipe, and the pipelayer's counter weight can be lift up and down.

Our pipelayer is with track type specialized chassis as bulldozer chassis. The pipelayer's track shoe is wider and longer. Our pipelayer can make small move easily for better adjusting work and quick pipe fitting work.

For the basis pipelayer work, usually at least every 2 unit pipelayer as one group for pipelayer work.



Model Engine max Lifting Capacity Machine
Weight
Note Photo
P15 Weichai 15t 20t
P25 Weichai 25t 22t
P45 Cummins 45t 34t

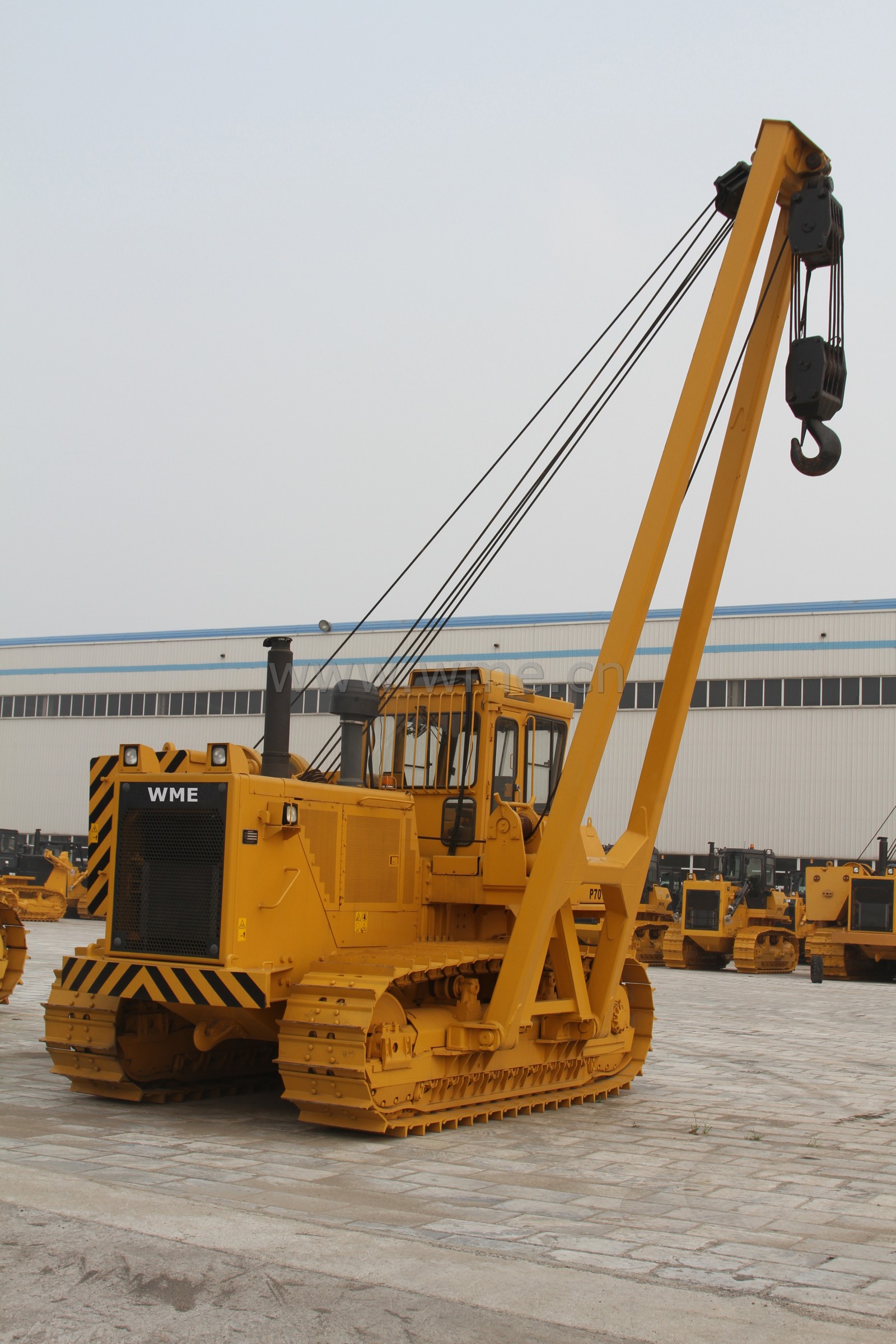

P70 Cummins 70t 47.5t   Pipelayer P70.jpg (587KB)
P90 Cummins 90t 57.5t

DGY15 Weichai 15t 19.7t Pilot Control

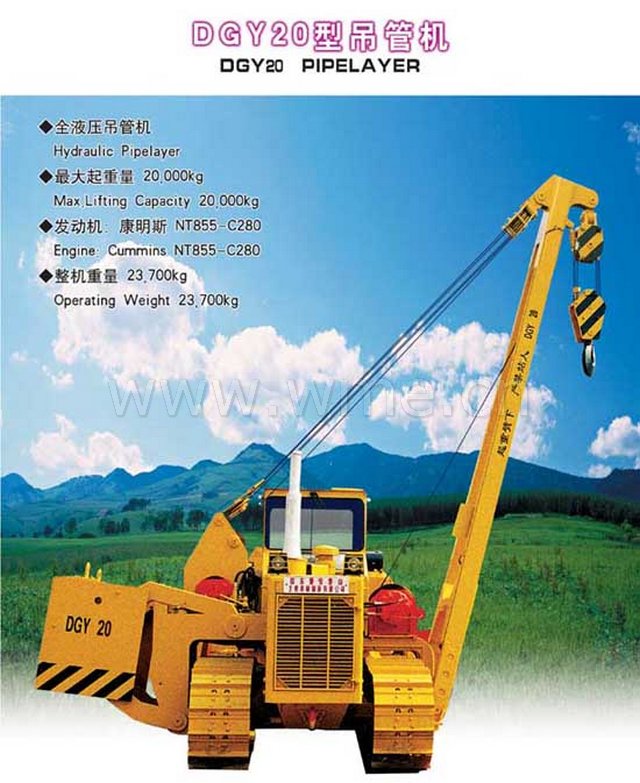

DGY20 Cummins 20t 23.7t Pilot Control Pipelayer DGY20.jpg (114KB)

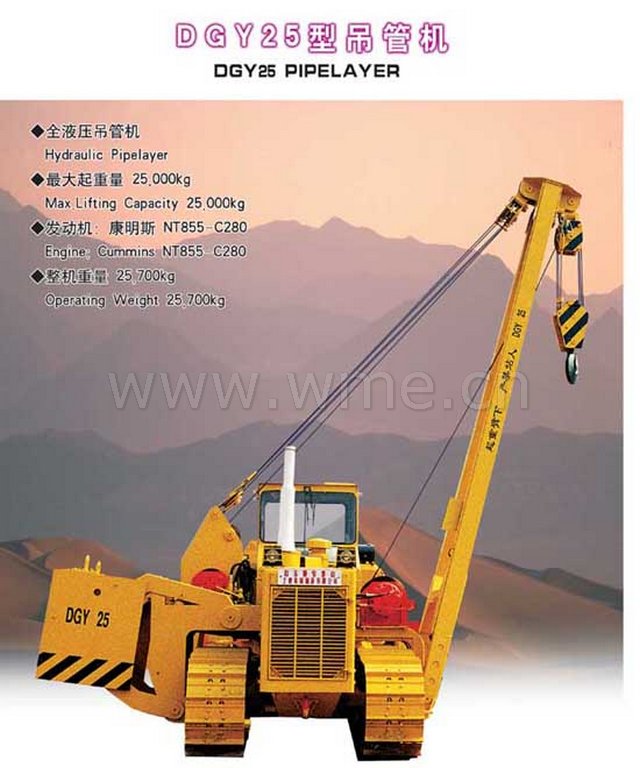

DGY25 Cummins 25t 25.7t Pilot Control Pipelayer DGY25.jpg (90KB)

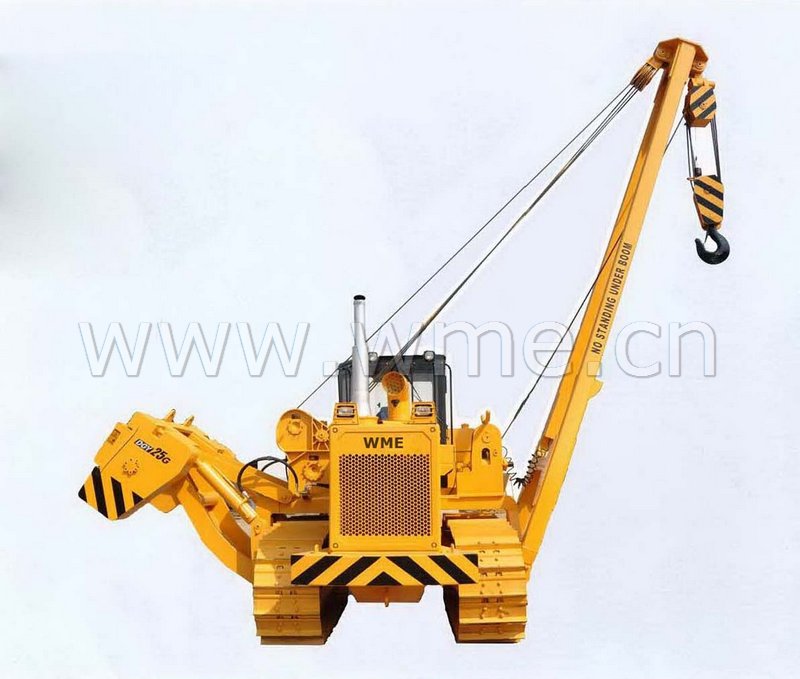

DGY25G Cummins 25t 26.5t Pilot Control Pipelayer DGY25G.jpg (86KB)
DGY30 Weichai 30t 27t Pilot Control

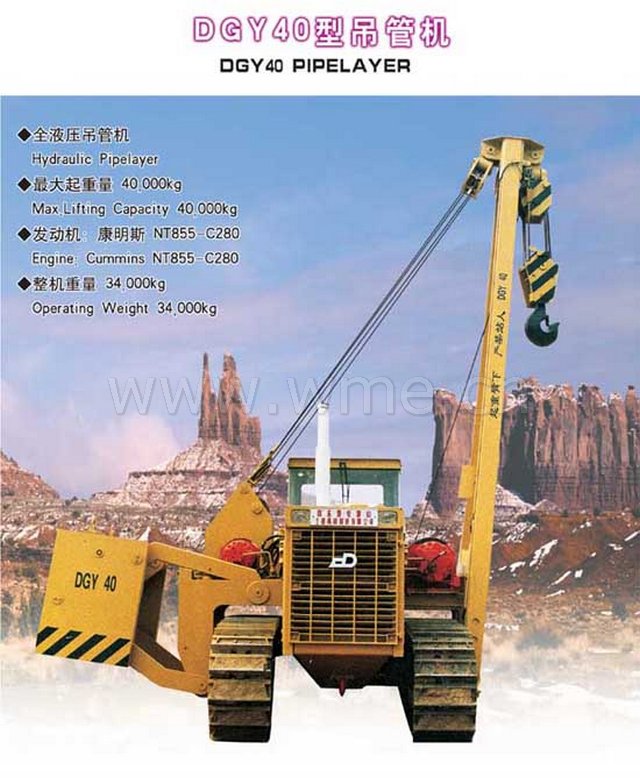

DGY40 Cummins 40t 34t Pilot Control Pipelayer DGY40.jpg (110KB)

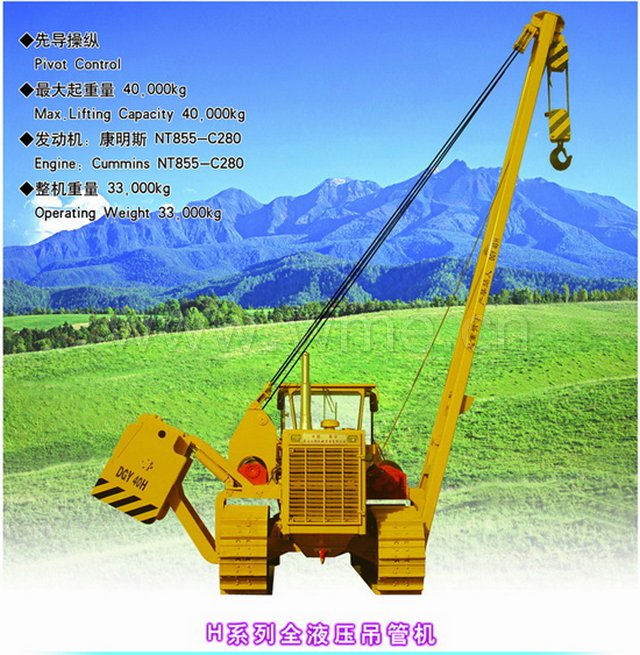

DGY40H Cummins 40t 33t Pilot Control Pipelayer DGY40H.jpg (128KB)

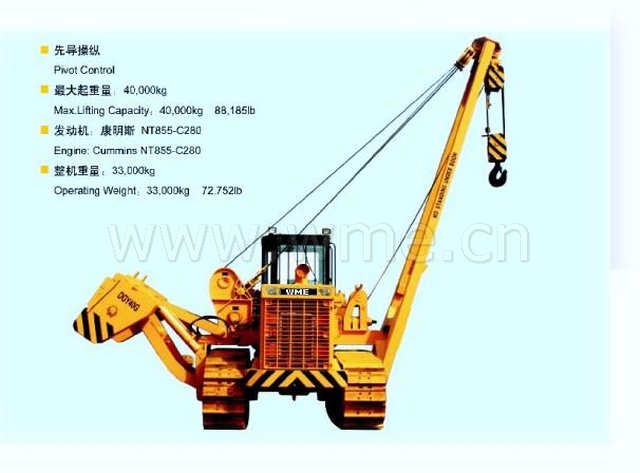

DGY40G Cummins 40t 34.6t Pilot Control Pipelayer DGY40G.jpg (50KB)
DGY55 Cummins 55t 41t Pilot Control Pipelayer DGY55.jpg (34KB)

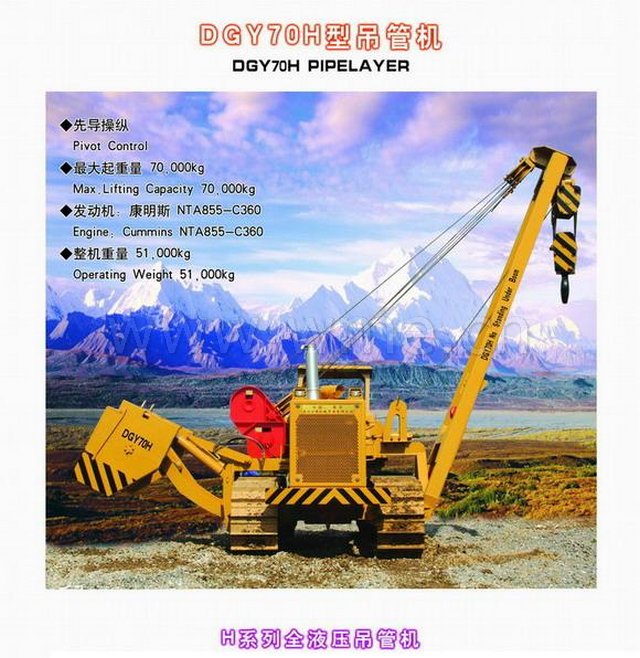

DGY70H Cummins 70t 51t Pilot Control Pipelayer DGY70H.jpg (103KB)

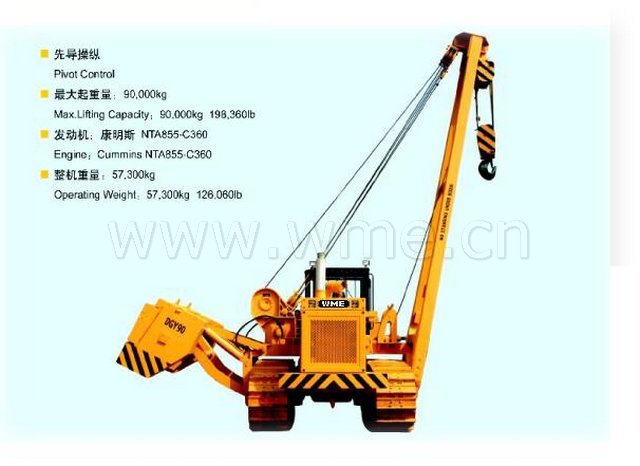

DGY90 Cummins 90t 57.3t Pilot Control Pipelayer DGY90.jpg (48KB)

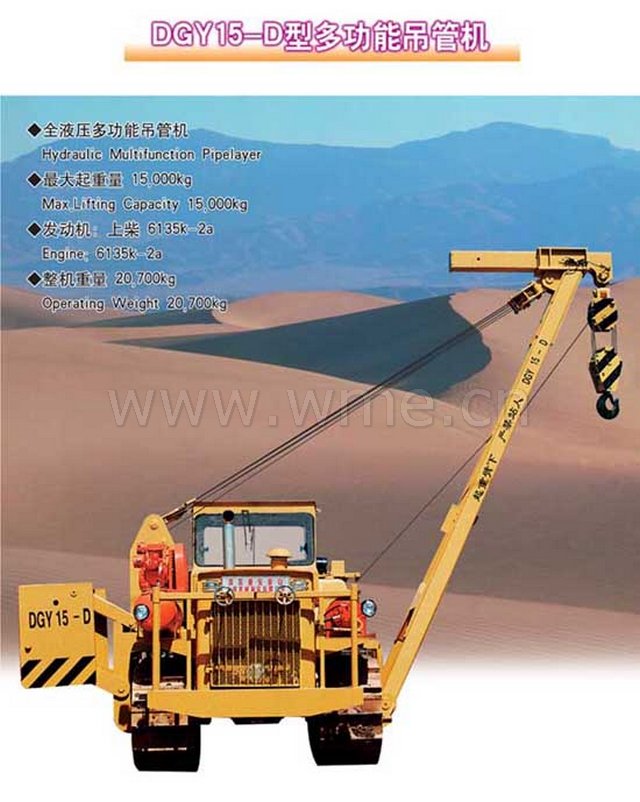

DGY15-D Shanghai Diesel 15t 20.7t Pilot Control,
Multifunctional pipelayer
Multifunctional Pipelayer DGY15-D.jpg (96KB)

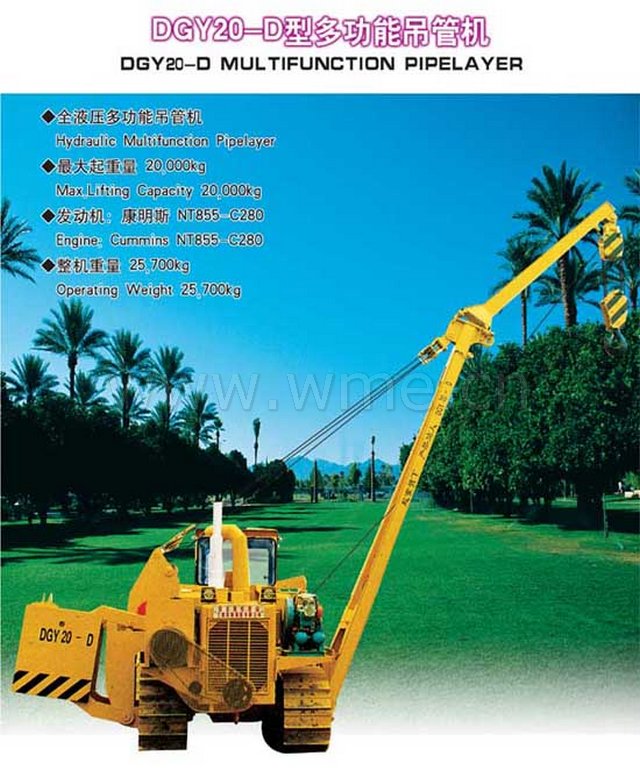

DGY20-D Cummins 20t 25.7t Pilot Control,
Multifunctional pipelayer
Multifunctional Pipelayer DGY20-D.jpg (122KB)

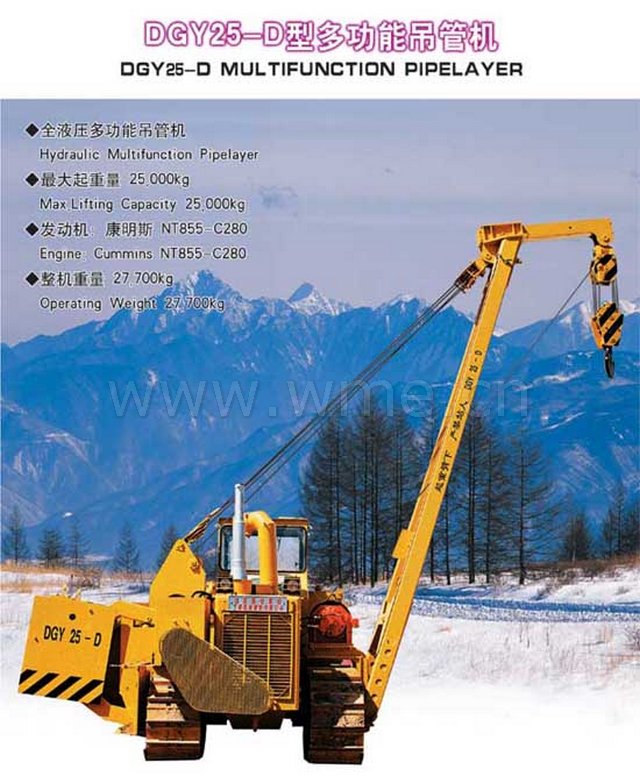

DGY25-D Cummins 25t 27.7t Pilot Control,
Multifunctional pipelayer
Multifunctional Pipelayer DGY25-D.jpg (118KB)

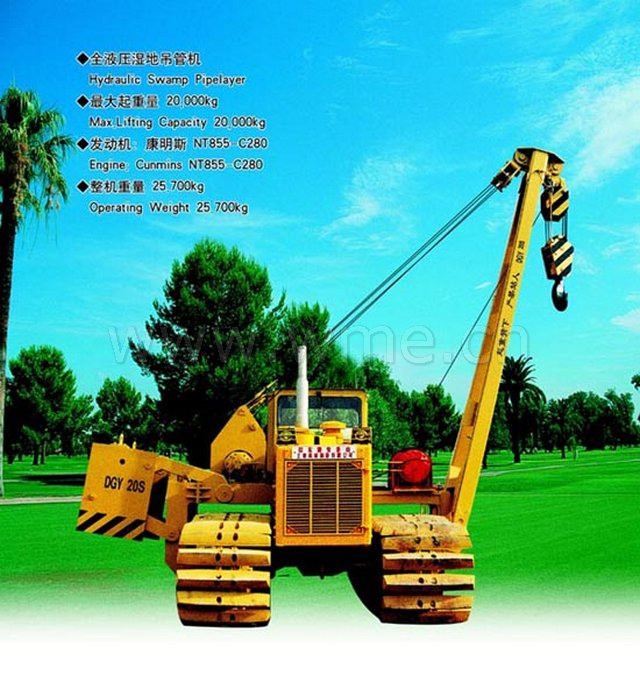

DGY20S Cummins 20t 25.7t Pilot Control,
Marsh pipelayer
Marsh Pipelayer DGY20S.jpg (113KB)

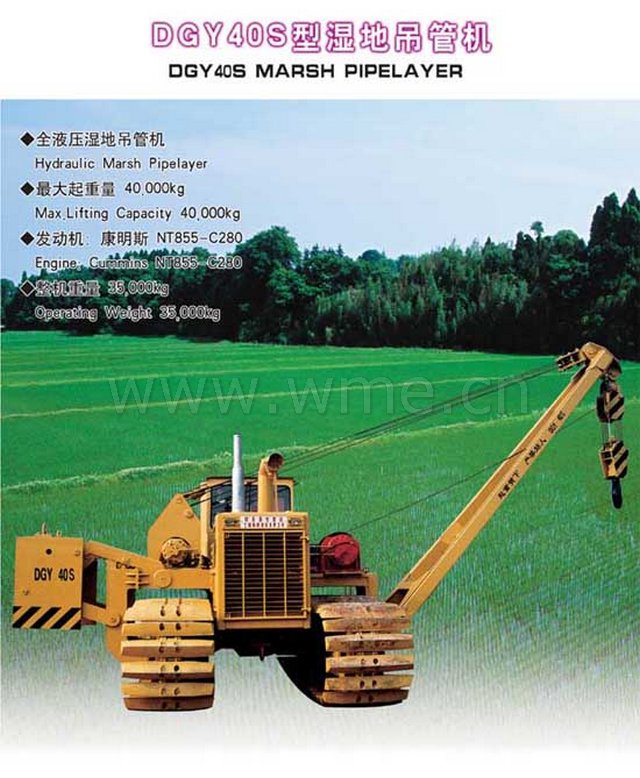

DGY40S Cummins 40t 35t Pilot Control,
Marsh pipelayer
Marsh Pipelayer DGY40S.jpg (115KB)

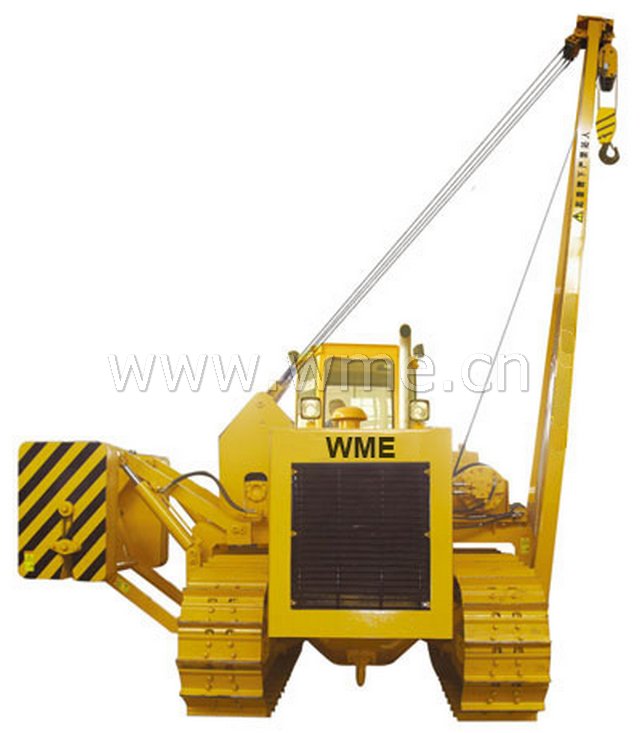

PMG20 Cummins 20t 23t   Pipelayer PMG20.jpg (64KB)
PMG20D   20t     Pipelayer PMG20D.jpg (64KB)
PMG30 Cummins 30t 27t

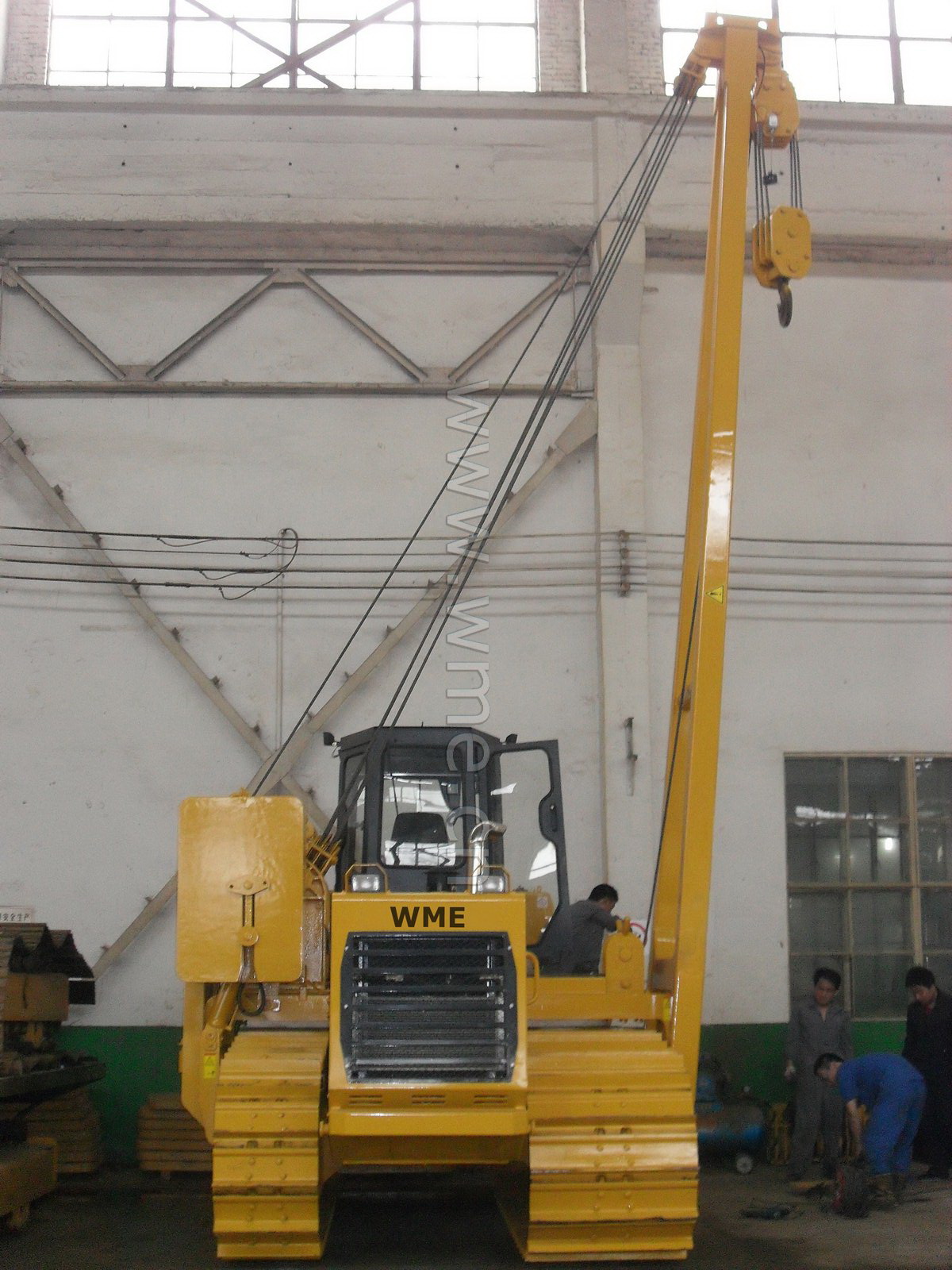

PMGY30 Cummins 30t 27t   Pipelayer PMGY30.jpg (456KB)
PMGY30D   30t

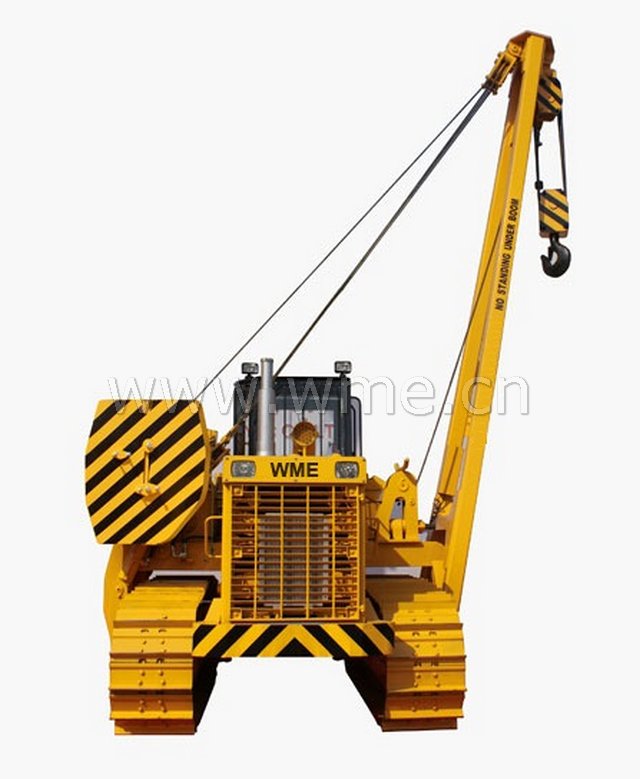

PMG40 Cummins 40t 33t   Pipelayer PMG40.jpg (73KB)
PMG40G Shanghai Diesel 40t 34t   Pipelayer PMG40G.jpg (362KB)
PMG70 Cummins 70t 49t
PMGY70   70t     Pipelayer PMGY70.jpg (166KB)
PMG90 Cummins 90t 55t
PMGY90   90t

SP25Y
SP45Y
SP70Y
SP90Y

All specifications are approximate. Specifications are subject to change without notice.

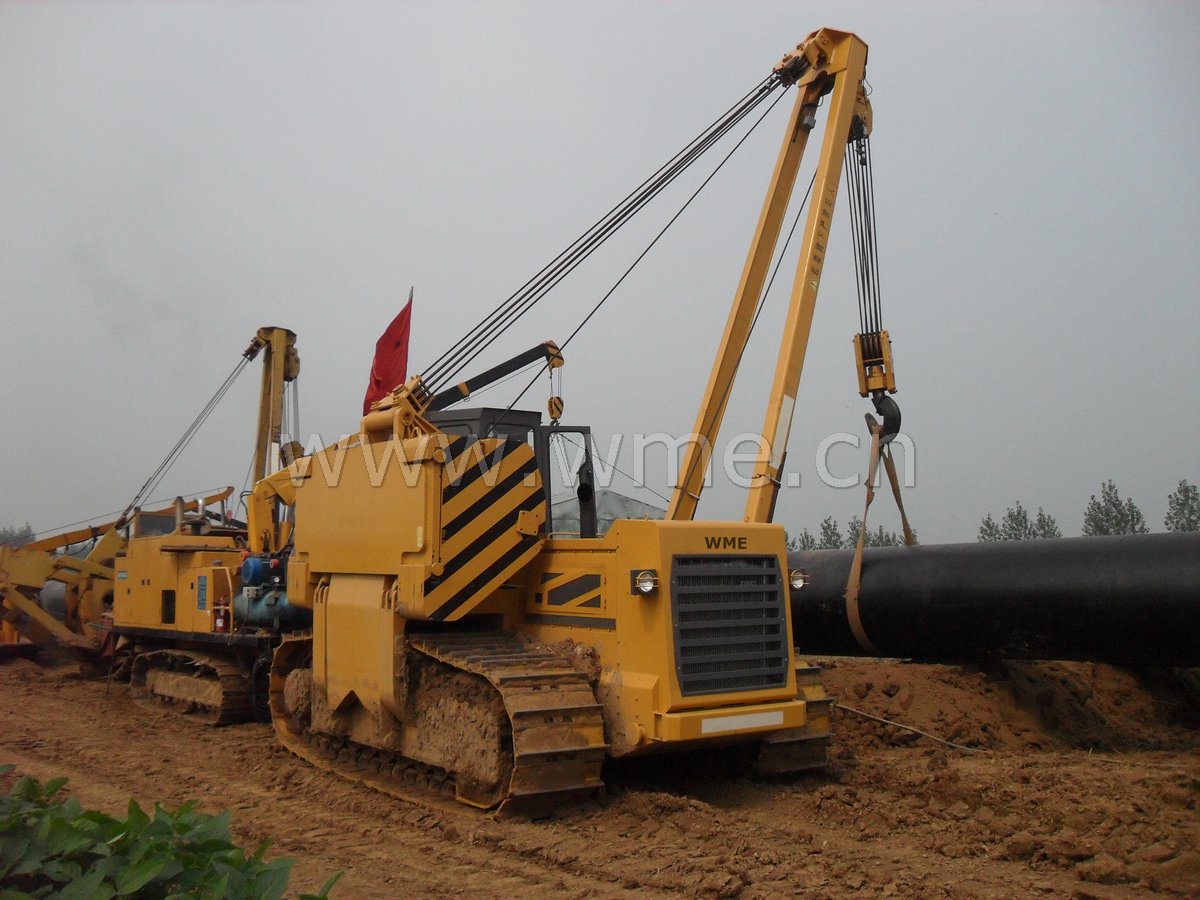

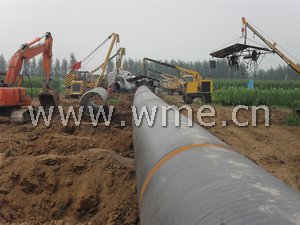

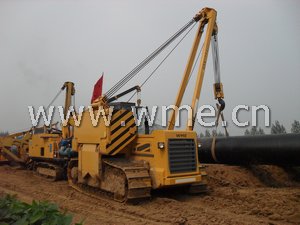

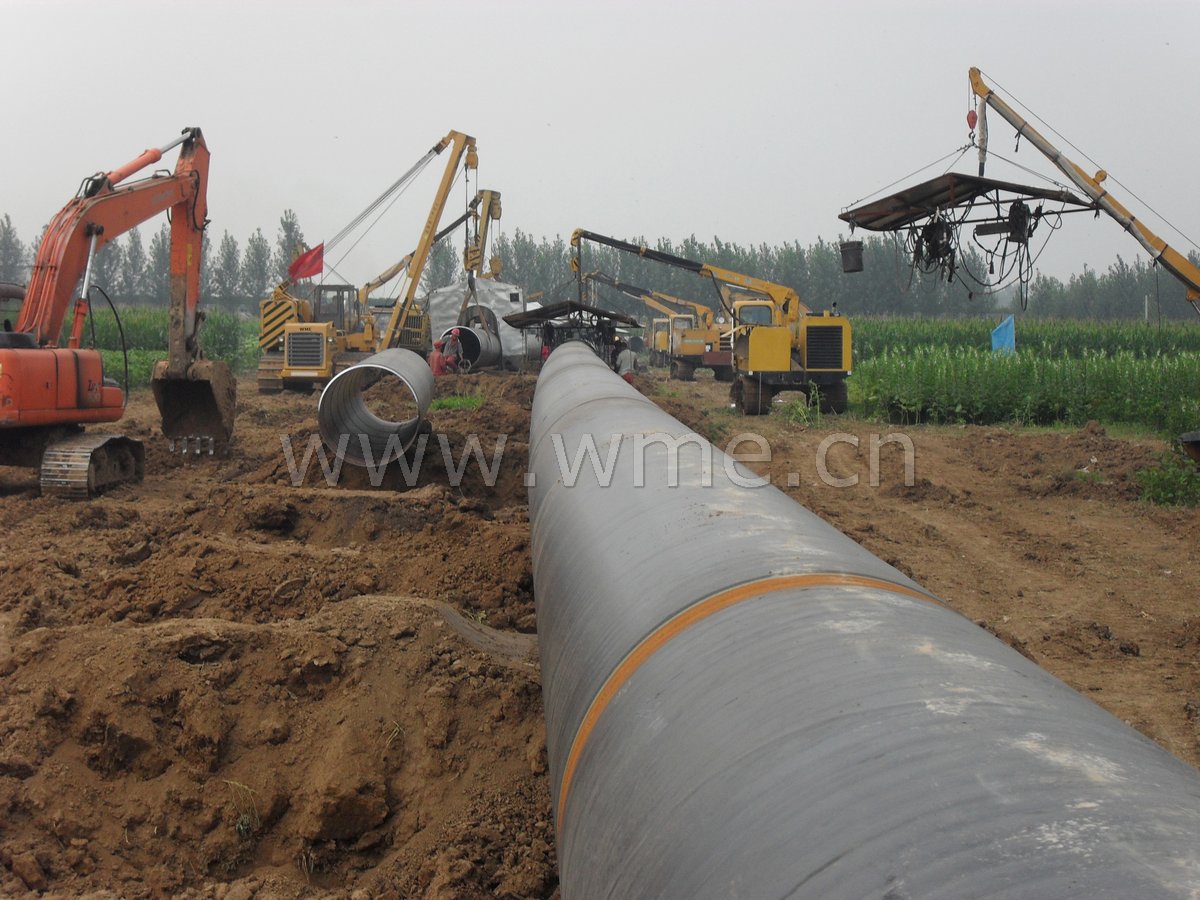

Pipelayer work site
Pipelayer work site
Pipelayer work site
Pipelayer work site

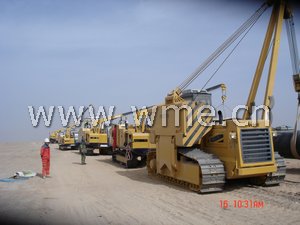

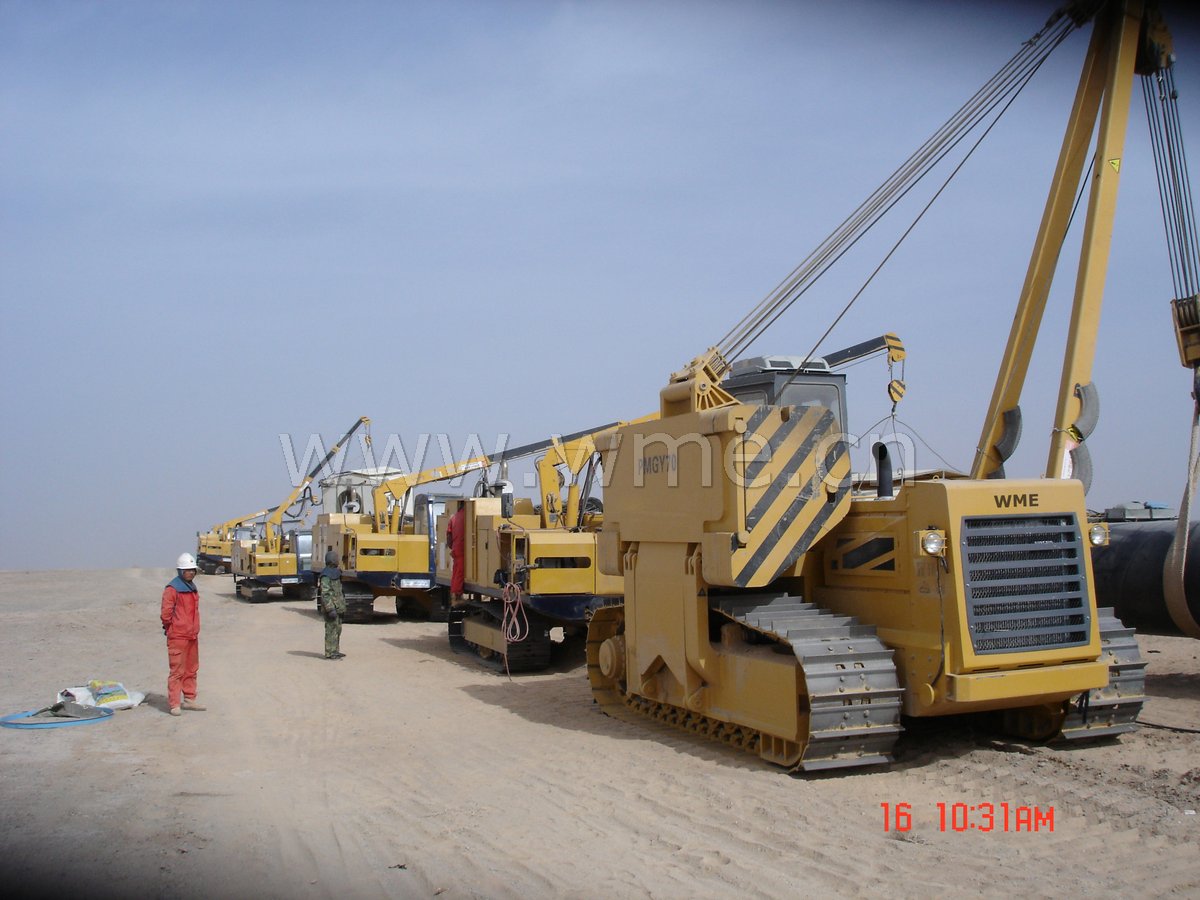

Pipelayer PMGY70
Pipelayer PMGY70

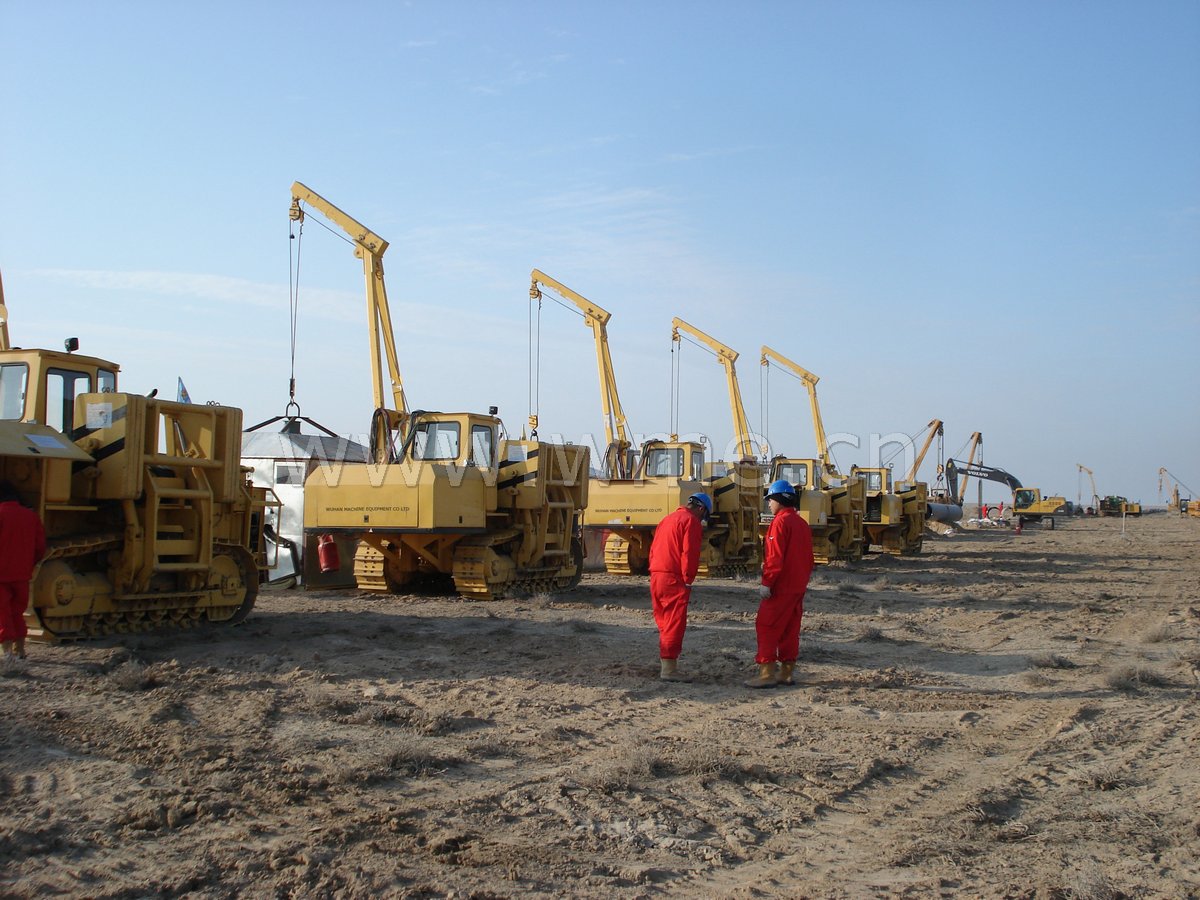

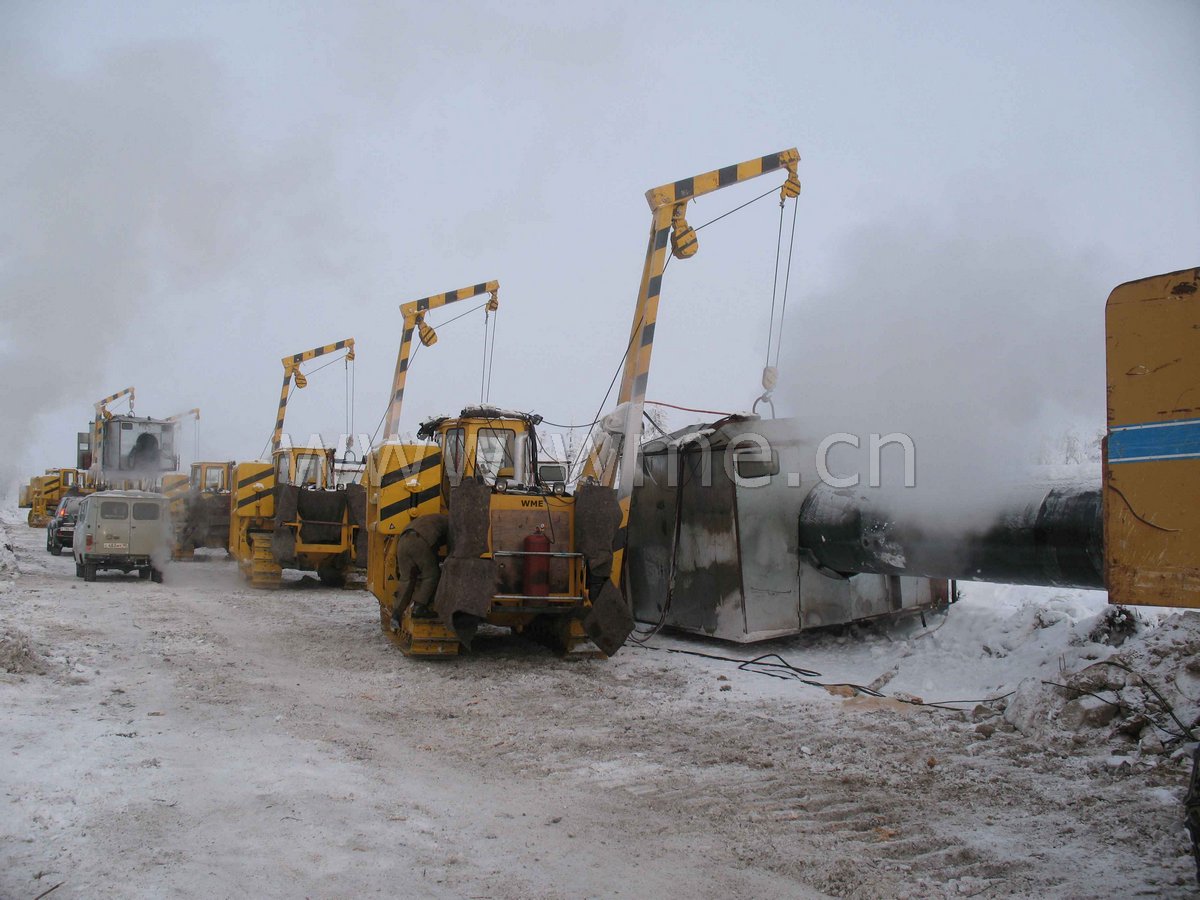

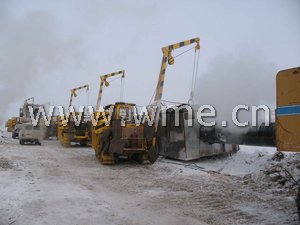

Pipelayer PMG20 in work site
Pipelayer PMG20 in work site
Pipelayer PMG20 in work site
Pipelayer PMG20 in work site

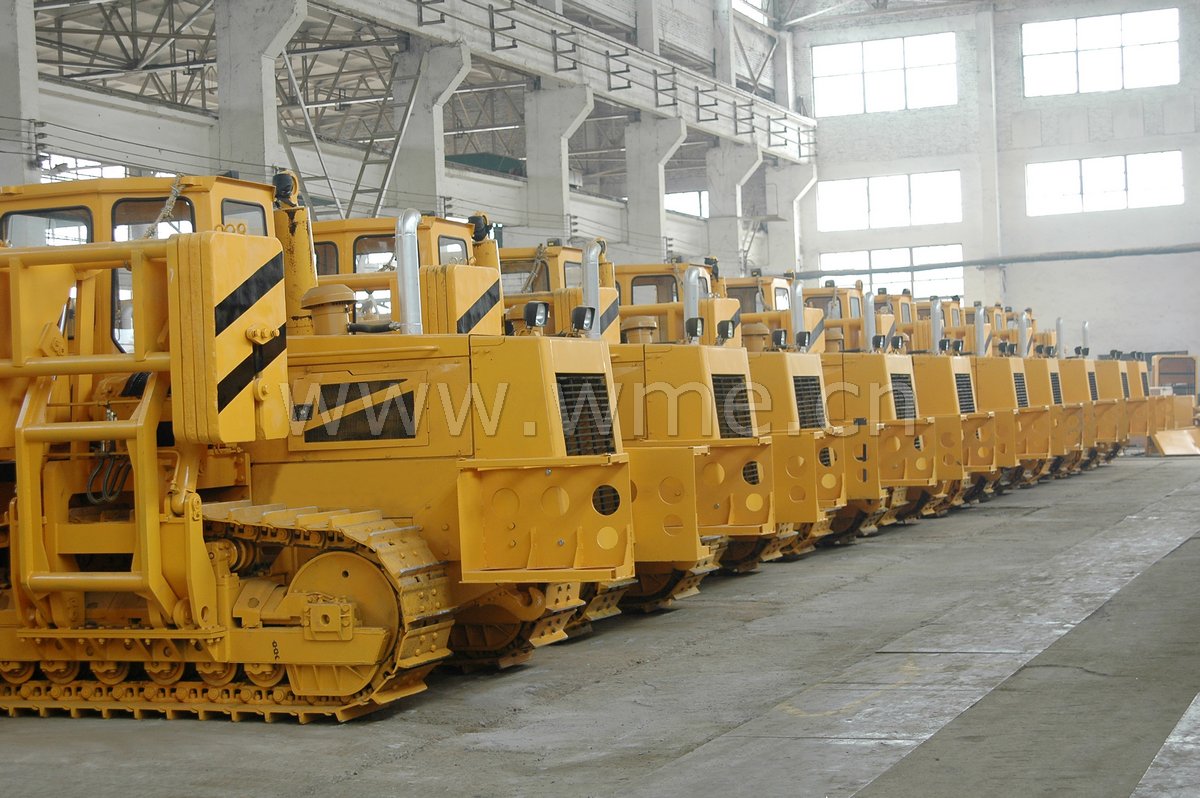

Pipelayer PMG20 in warehouse
Pipelayer PMG20 in warehouse

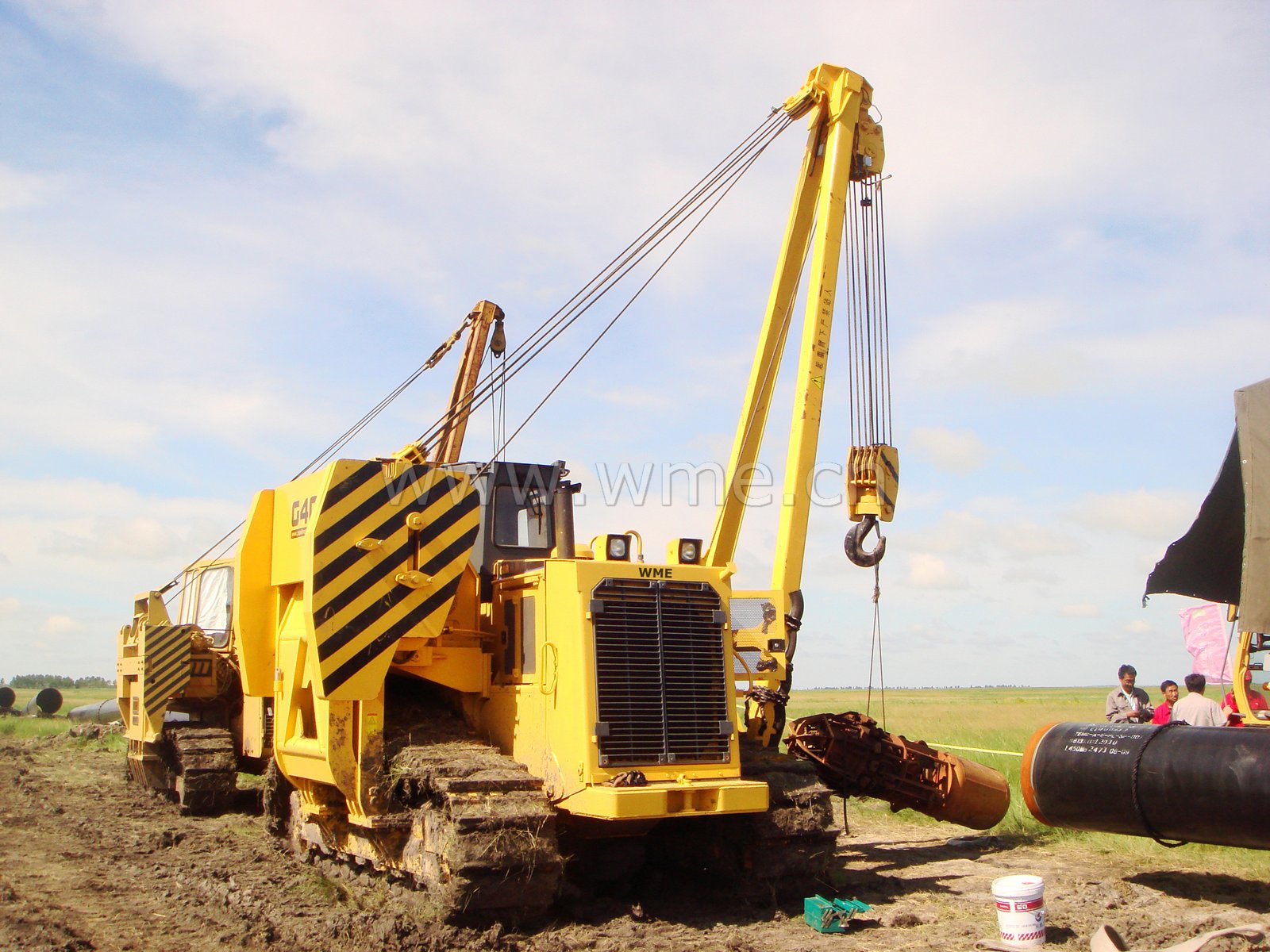

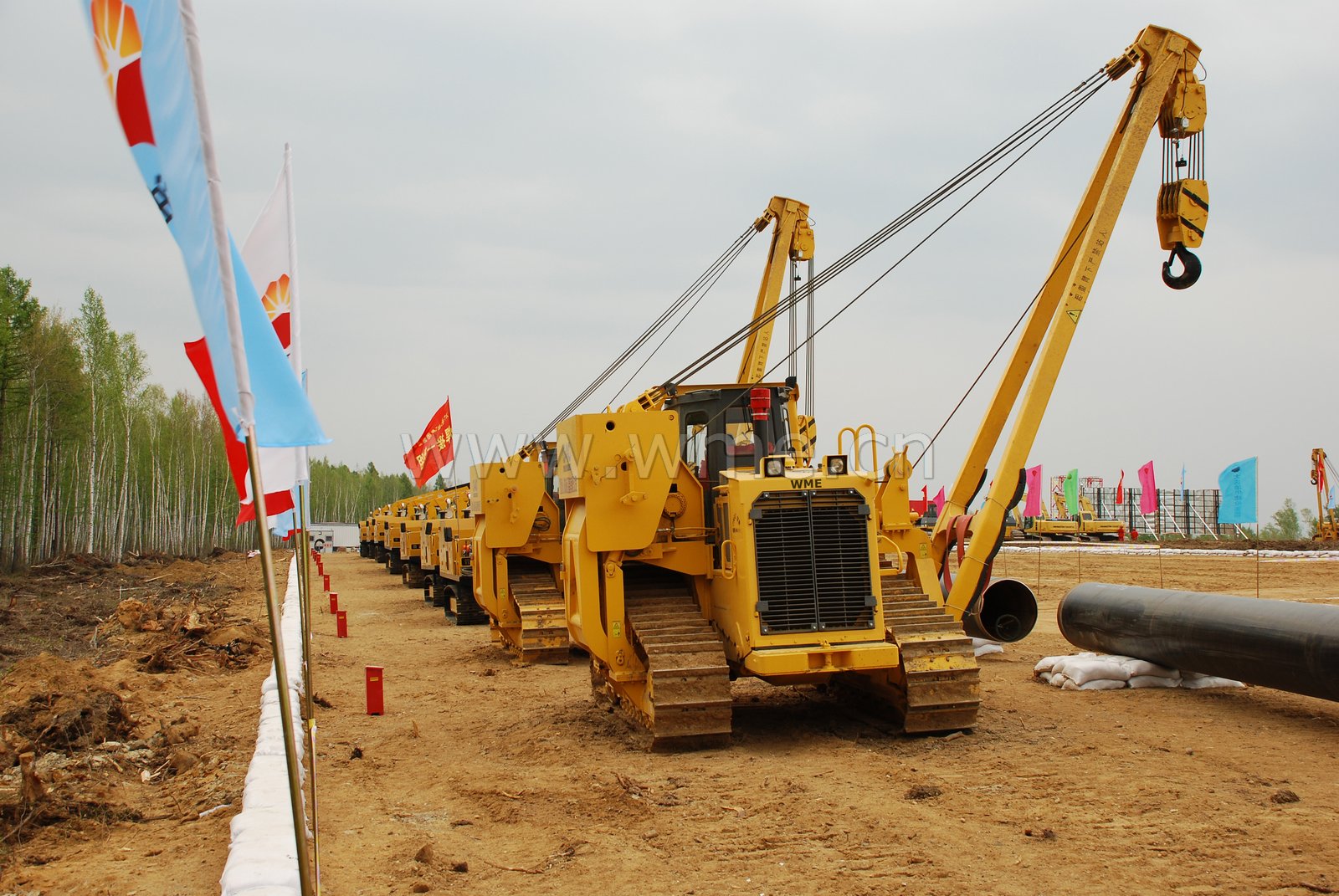

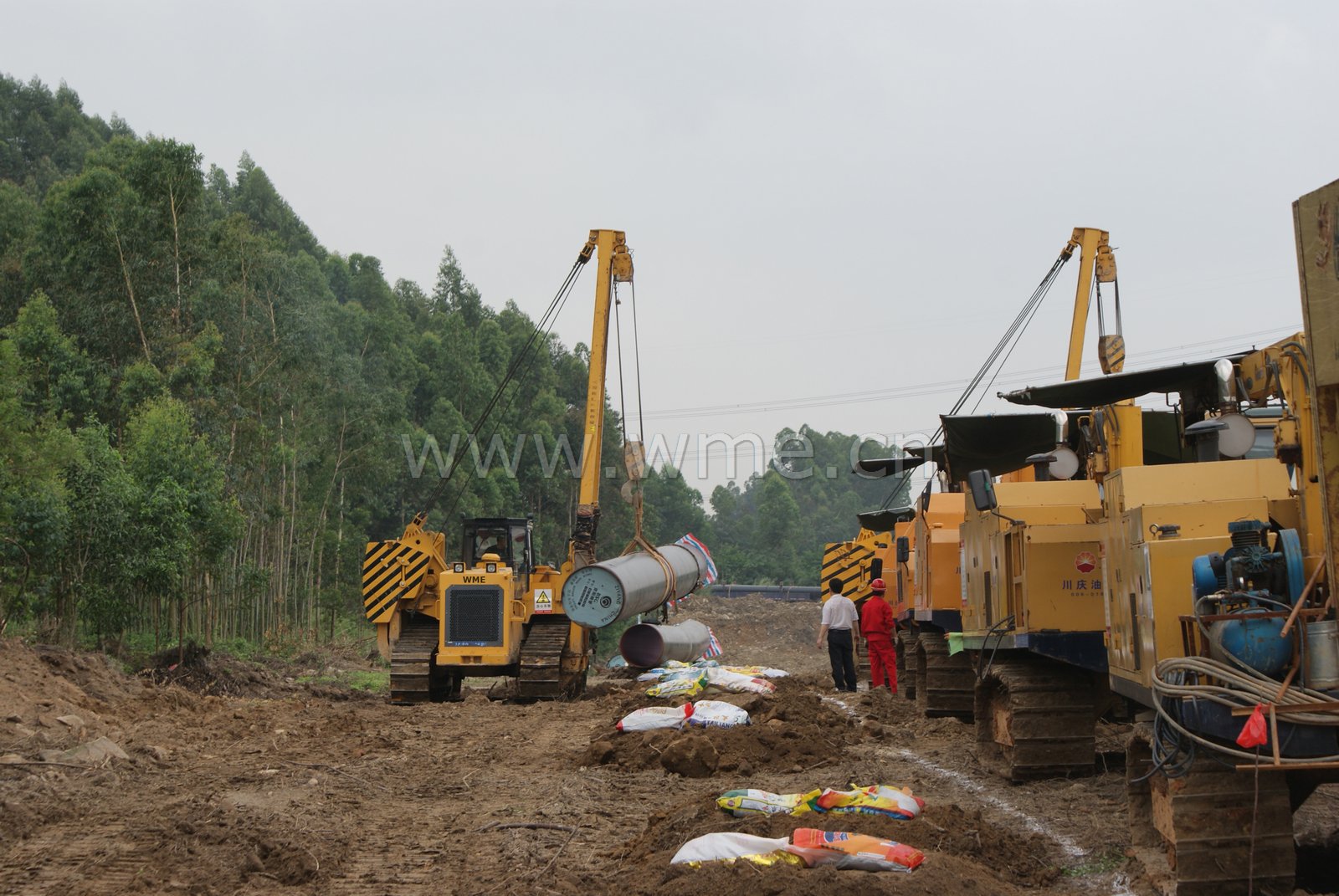

Pipelayer PMG40G in work site
Pipelayer PMG40G in work site
Pipelayer PMG40G in work site
Pipelayer PMG40G in work site
Pipelayer PMG40G in warehouse
Pipelayer PMG40G in work site





Pipelayer PMGY30 in work site
Pipelayer PMGY30 in work site
