GIA 0338XD+

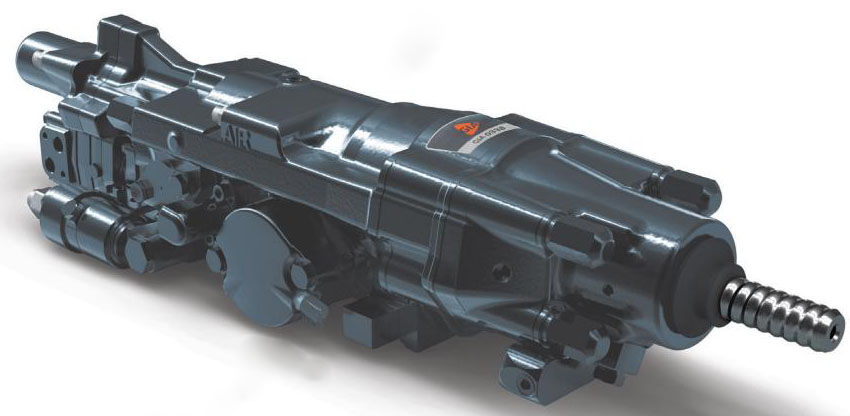

GIA 0338XD+ Hydraulic Rock Drill

Excellent production efficiency, outstanding stability, and lower operation and maintenance costs.



                Dimensions and Weight

Weight Length (excluding shank tail) Width (with joint) Overall Height Height (above rock drilling center)
186.5 kg 1008 mm 251 mm 223 mm 88 mm



GIA R35

GIA K111

GIA 0338XD+

GIA Q5

GIA Q6

GIA X1



























                 Impact Parameters

Impact Power Maximum Input Power Maximum Input Pressure Flow Rate Impact Frequency
18 kW 31 kW 230 bar 75 - 92 L/min 60 Hz





                Rotary Motor

Specification Rotation Speed Torque Maximum Working Pressure Flow Rate
05 0 - 340 rpm 640 Nm 210 bar 75 L/min
06 0 - 275 rpm 820 Nm 210 bar 75 L/min
07 0 - 215 rpm 1000 Nm 210 bar 75 L/min





                Flushing Water Flow and Pressure

Maximum Flushing Water Pressure Lubricating Air Flow at 2 bar Flushing Water Flow*
25 bar 5 L/s 55 - 120 L/min

*The flushing water flow depends to a large extent on the hole diameter, drill bit type, drill rod size and rock hardness. The above chart represents the average values of a spherical button drill bit on granite with a hardness of 200 MPa.





                Maintenance Kits

Seal Kit Overhaul Maintenance Kit Major Overhaul Maintenance Kit
5750 1951 68 5750 1951 70 5750 1951 71





                Shank Tails

Type Drilling Rod for Tunneling Connecting Drill Rod
R32 403 - 0910110 403 - 0910310
R38 404 - 0910110 404 - 0910310
T38 435 - 0910110 435 - 0910310
Magnum SR38 427 - 0910110 427 - 0910310




All specifications are approximate. Specifications are subject to change without notice.
