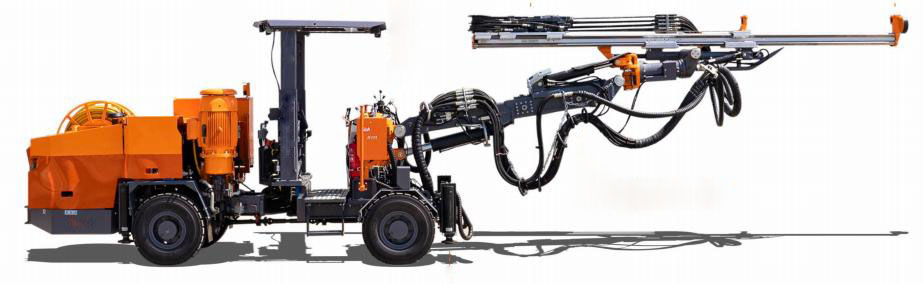

GIA K111 Mine Hydraulic Tunneling Jumbo

GIA Gaia K111 is a hydraulic tunneling jumbo, equipped with a BUT28 box - type drill boom and a GIA Gaia O338 rock drill, effectively enhancing your productivity with the lowest possible operating costs.



    Rock Drill GIA O338

Shank Tail Distance from Rock Drill Top to Rotation Center Hole Diameter Range Length (excluding Shank Tail) Impact Power Impact Frequency System Pressure Rotation System Rotation Speed Maximum Rotation Torque Lubrication Air Consumption Weight Noise Level
R38/T38 88mm 38 - 64mm 1008mm 18kW 60Hz 230 bar Independent Rotation 0 - 340rpm 1000Nm 5 L/s (at 2 bar) 186.5 kg <116 dB (A)

GIA Drillling Rig

GIA K111
GIA 0338XD+
GIA Q5
GIA Q6
GIA Q8
GIA X1
GIA C15E





























   Feed Beam (BMH2000 Series)

Model Total Length Drill Rod Length Drilling Depth Weight (including Rock Drill) Feed Force
BMH2831 4677mm 3090mm 2795mm 509kg 15.0KN
BMH2837 5287mm 3700mm 3405mm 530kg 15.0KN
BMH2843 5897mm 4310mm 4015mm 665kg 15.0KN



    Drill Boom

Drill Boom Feed Compensation Drill Boom Extension Parallel Support Feed Swivel Maximum Lifting Angle Drill Boom Left/Right Swing Angle Drill Boom Central Lubrication Function
BUT 28 Box Boom 1250mm 1250mm Omnidirectional 360° +65°/-30° ±35° -



   Air System

Electric Piston Air Compressor Maximum Air Output at 7 bar Air Gauge Air - Water Separator
LE5 8.4 L/s - -



   Water System

Hydraulic - Driven Booster Water Pump Maximum Flow of Booster Water Pump L/s Maximum Working Pressure, bar Minimum Inlet Water Pressure, bar Water Pressure Gauge Water Flow
Lowara 5SV11FO15T 0.7 - 2.4 25 2 - -



   Electrical System

Total Installed Power Main Motor Power (50Hz) Voltage Frequency Starting Method Transformer Cable Inner/Outer Diameter
65.2kW 55kW 380V 50Hz Star/Delta 3.9 kVA 66/1095mm



   Hydraulic System

Electrical System Start - up Maximum System Pressure Hydraulic Oil Tank Volume Filter Precision
24V 230 bar 124 L 20 μm



   Chassis

Rated Power Torque (1300 - 1600 rpm) Radial Steering Front Frame Rear Frame Tire Departure Angle Emergency and Parking Brake Fuel Tank Volume Battery Maximum Gradeability
55.8kW 310 Nm ±40° Steering Angle DR2O23 - VIII (O) DR2O23 - VIII (H) 8.25xR15 13° SAHR 60 L 2x70 Ah 14



    Drill Rods

Type Minimum Hole Diameter
R32 - H35 - R38 45mm
R32 - H35 - T38 45mm
R32 - H35 - T38 Quick - Connect Drill Rod 45mm
SR35 - H35 - T38 Quick - Connect Drill Rod 45mm
SR35 - H35 - T38 Threaded Drill Rod 45mm
SR35 - H35 - T38 Threaded Drill Rod 45mm
SR35 - R38 - T38 45mm
R32 - R38 - T38 45mm
R32 - R38 - T38 Quick - Connect Drill Rod 45mm
SR35 - R38 - T38 Quick - Connect Drill Rod 45mm



   Shank Tails

Type Diameter Length
R38 38mm 435mm
T38 38mm 435mm



   Couplings

Type Diameter Length
R38 65mm 170mm
T38 65mm 190mm



   Feed Beam (Equipped with BMHT 2000 Series)

Model Total Length Drill Rod Length Hole Depth Weight including Rock Drill Feed Force
BMHT 23X1/19 3407/4607mm 3000/3900mm 1624/2844mm 610 kg 15 kN
BMHT 23X7/22 3707/5007mm 2200/3200mm 1809/3406mm 630 kg 15 kN
