GIA Q5

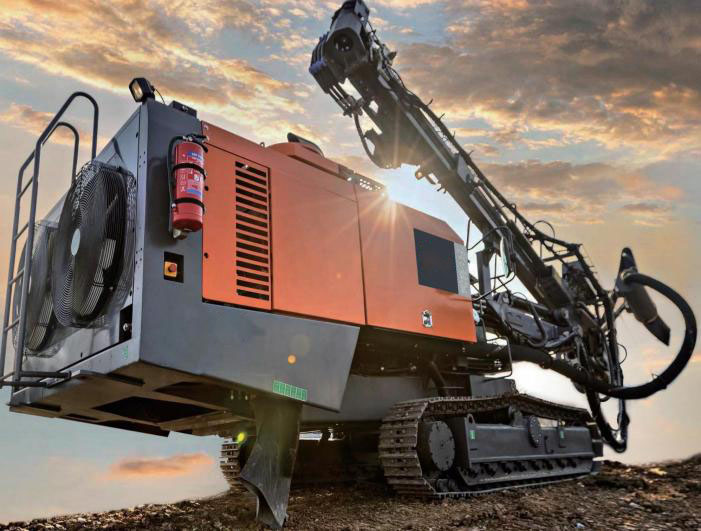

GIA Q5 Full - Hydraulic DTH Open - Pit Drill

A stable, reliable, powerful, efficient and fast - payback rock drilling tool



Main Application Scenarios Drilling Method Recommended Hammer Drill Tool Specifications Suitable Hole Diameter Maximum Hole Depth Transport Dimensions Weight
Limestone Quarry, Open - pit Mine Down - the - Hole (DTH) 3.5", 4", 5" 89mm x 4m, 64mm or 76mm x 4m (Optional) 90 mm - 140 mm, Standard 140 mm 28.3m H3450 x L9250 x W2500 mm 15300 kg

GIA Drillling Rig

GIA K111
GIA 0338XD+
GIA Q5
GIA Q6
GIA Q8
GIA X1
GIA C15E





























  Air Compressor(Two - Stage Compression Screw Air Compressor)

Maximum Working Pressure Air Volume Output
21bar 16m³/min@21bar



    Rotation Structure(Dual - Motor Upgraded Rotating Head)

Model Name Rotation Speed Maximum Torque
DRU5 128 rpm (Up to 160 rpm for Black Warrior Version) 3400 Nm



   Feed System(Hydraulic Motor - Driven Chain - Type Feed Beam)

Rod Storage Capacity Feed Force Pull Force
6 drill rods + 1 power head 12kN 23kN



   Crawler Travel System(Crawler Travel System with Mechanical Traction Function)

Travel Speed (Multi - gear Adjustment) Climbing Ability Ground Clearance Pitch Angle
1.5 - 4.0 km/h Over 20° 350 mm ±10°



   Adapter

Part No. Diameter Length Male Thread Female Thread
88058016 89mm 305mm API 2 3/8" REG API 2 3/8" REG



   Drill Pipe

Part No. Diameter Length
88058017 89mm 4m



   Drill Bit

Model Part No. Diameter
DHD 5Gold series drill bits - 140mm
EM5* convex face/Jinchi drill bits 88058254 140mm


All specifications are approximate. Specifications are subject to change without notice.
