GIA Q6

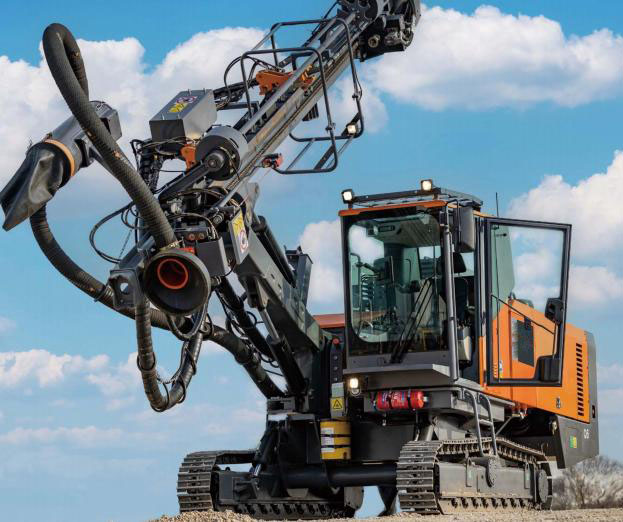

GIA Q6 Full - Hydraulic DTH Open - Pit Drill

A stable, reliable, powerful, efficient and fast - payback rock drilling tool



    Hole Diameter Range and Method

Drilling Method Hole Diameter Range Optimal Adapted Hole Diameter Hammer Drill Rod Size
Down - the - hole 90 - 165mm 152mm Suitable for 3.5" - 6" hammers 89mm

GIA R35

GIA K111

GIA 0338XD+

GIA Q5

GIA Q6

GIA X1





























    Rotation System

Rotary Head Maximum Torque of Rotary Head Maximum Speed of Rotary Head
DRU5 3400Nm 128rpm



   Detailed Configuration and Parameters of Power System

Engine Brand Engine Power Fuel Tank Capacity Urea Tank Capacity Engine Oil Capacity Engine Cooling Fluid Capacity Air Compressor Model Pressure and Air Volume Air Compressor Filter Core
YCK11 307.4kW@1900rpm 500L 38.5L 35L 60L GE810AVIII 19.7m³/min @ 25 bar Two - stage Filter



   Hydraulic System

Hydraulic Oil Tank Capacity Total Capacity of Hydraulic System Oil Filtration Precision Hydraulic Oil Filling Air Compressor Oil Capacity Air Circuit Heating Package Hole Depth/Drilling Angle Lubricating Oil Tank Capacity
350L 450L 10 μm Manual 6.3L Optional Standard Drilling Angle Display 20L



   Dust Removal System

Dust Removal Pressure Water Mist System Stepless Adjustment of Water Volume in Cab Filtration Area of Dust Collection System Number of Filter Cores Suction Force
7bar Optional (2x150L Non - pressure Type) Standard Configuration 28m² 20 850L/s



   Transport Dimensions

Transport Dimensions Weight
H3450 x L9250 x W2500mm 16600 kg



   Feed System

Drill Rod Magazine Drill Rod Handler Stroke Feed Force Pull - Back Force Feed Beam Extension Stroke Feed Speed Total Length of Feed Beam Feed Stroke Drill Rod Type Maximum Number of Rods Maximum Depth Vertical Hole - Opening Range Horizontal Hole - Opening Range
RHS 89 60mm 24kN 30kN 1400mm 0.95m/s 7560 4684 D89 6 28.3m 710mm (Above Ground)/2398mm (Below Ground) 245mm/3725mm



   Cab

Gearbox Oil Capacity Vehicle Voltage Battery Generator Front Work Light Rear Work Light Feed Beam Work Light Ground Clearance Travel Speed Tractive Force Front - Rear Climbing Ability Lateral Climbing Ability
2.2L 24VDC 2 x 12V, 180Ah 28V, 120Ah 3 x 70W 1 x 70W 2 x 70W 350mm 1.6/4.3km/h 90.5kN 20° (20 in CE)


All specifications are approximate. Specifications are subject to change without notice.
