GIA X1

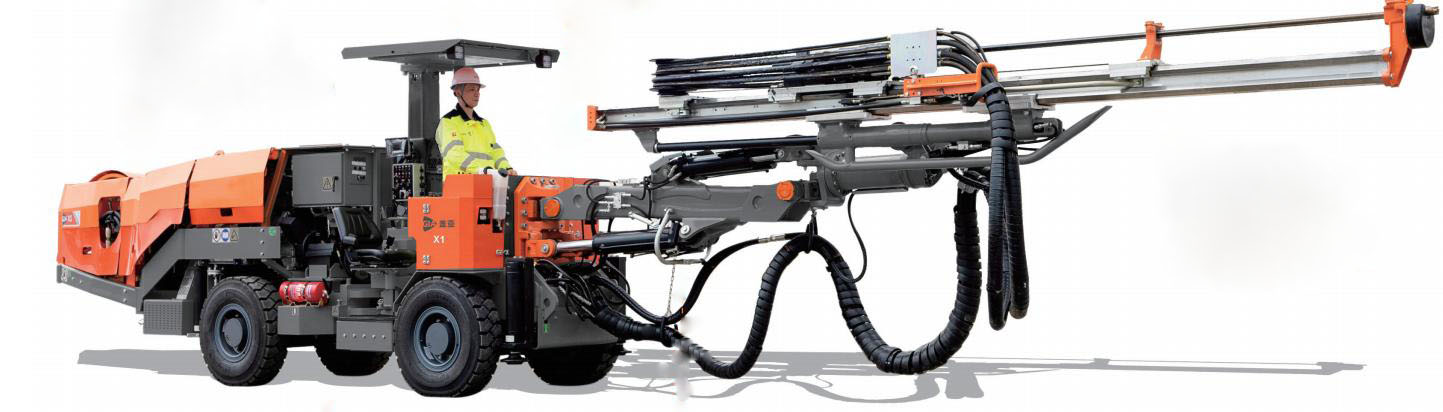

GIA X1 Mine Hydraulic Tunneling Jumbo

Excellent production efficiency, outstanding stability, and lower operation and maintenance costs are our unremitting pursuits.

Rock Drill GIA O338

Shank Tail

Distance from Rock Drill Top to Rotation Center

Hole Diameter Range

Length (excluding Shank Tail)

Impact Power

Impact Frequency

System Pressure

Rotation System

Rotation Speed

Maximum Rotation Torque

Lubrication Air Consumption

Weight

Noise Level

R38/T38

88mm

38 - 64mm

1008mm

18kW

60Hz

230 bar

Independent Rotation

0 - 340rpm

1000Nm

5 L/s (at 2 bar)

186.5 kg

<116 dB (A)

Feed Beam

Model	Total Length	Drill Rod Length	Drilling Depth	Weight (including Rock Drill)	Feed Force
BMH2000 Series	4677mm	2500mm	2205mm	492kg	15kN
BMH2825 (Optional)	4087mm	3090mm	2794mm	515kg	15kN
BMH2831 (Optional)	5287mm	3700mm	3404mm	540kg	15kN
BMH2837 (Standard)	5287mm	3700mm	3404mm	540kg	15kN

Drill Boom

Drill Boom	Feed Compensation	Feed Beam Swivel	Parallel Holding	Feed Beam Pitch Angle	Maximum Swing Angle of Drill Boom	Weight of Drill Boom Itself
BUT 4 Box Boom	1250mm	360°	Omnidirectional	97°/-3°	±25°	1410kg

Air System

Electric Piston Air Compressor	Maximum Air Output at 7 bar	Electric Piston Air Compressor	Maximum Air Output at 7 bar	Air Consumption at Maximum Power (at 7 bar)
LE3 (Standard)	4.4 L/s	LE5 (Optional, for Air - Blowing Hole Configuration)	8.4 L/s	4.4 L/s

Water System

Hydraulic - Driven Booster Water Pump	Maximum Flow of Booster Water Pump (at 3.5 bar)	Maximum Working Pressure	Minimum Inlet Water Pressure
Lowara 5SV11FO15T	2.4 L/s	25bar	2bar

Electrical System

Total Installed Power	Main Motor Power	Voltage	Frequency	Transformer	Cable Inner/Outer Diameter	Starting Method
59.9kW	55kW	380V	50Hz	18kVA	660/1000mm	Star/Delta

Hydraulic System

Hydraulic Pump Unit	Maximum System Pressure	Hydraulic Oil Tank Capacity	Return Oil Filtration Precision
1 set	230bar	124 L	10μm

Drill Rods

Type	Recommended Hole Diameter
T38 - H35 - R32	45mm
R38 - H32 - R32	45mm
R38 - H35 - R32	45mm

Shank Tails

Type	Diameter	Length
R38	38mm	435mm
T38	38mm	435mm

Couplings

Type	Diameter	Length
R38	55mm	170mm
T38	55mm	190mm

Equipment Dimensions

Model	A	B
BMH - 2825	10364mm	4087mm
BMH - 2831	10964mm	4677mm
BMH - 2837	11564mm	5287mm

Dimensions

Width (with BMH Feed Beam)	Height of Protective Canopy (Maximum/Minimum)	Length (with BMH2831 Feed Beam)	Minimum Ground Clearance
1532mm	2755.5mm/2061mm	10954mm	269mm

Weight(Total Weight, Varies by Configuration)

Total Weight	Drill Boom End	Engine End
10650kg	6700kg	3950kg

Weight (Feed Beam - Related)

Feed Beam Model	Minimum Tunneling Width	Inner Turning Diameter	Outer Turning Diameter	Articulated Steering Angle	Drill Boom Swing Angle
BMH2825	2200	R2900	R4890	35°	25°
BMH2831	2200	R2900	R4890	35°	25°
BMH2837	2500	R2900	R5150	35°	25°
