HND TBD620/CHD620CR






Diesel engine model

TBD620/CHD620CR - HND TBD620/CHD620CR - HND Power

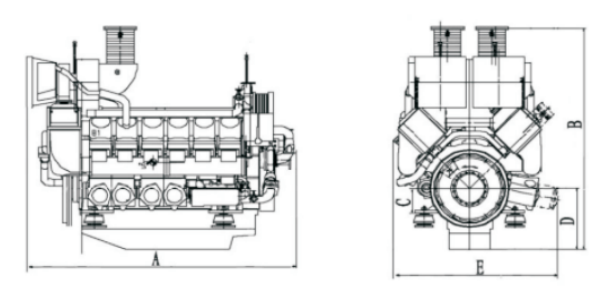

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
CHD620L6 3200 2497 2038 240 602 1378
CHD620L6CR 3200 2497 2038 240 602 1378
TBD620V8 3700 2507 2153 220 600 1450
CHD620V8CR 3700 2507 2153 220 600 1450
TBD620V12 5200 2990 2182 220 600 1485
CHD620V12CR 5200 2990 2182 220 600 1485
TBD620V16 6300 3479 2255 220 660 1516
CHD620V16CR 6300 3479 2255 220 660 1516



All specifications are approximate. Specifications are subject to change without notice.
