| Model |

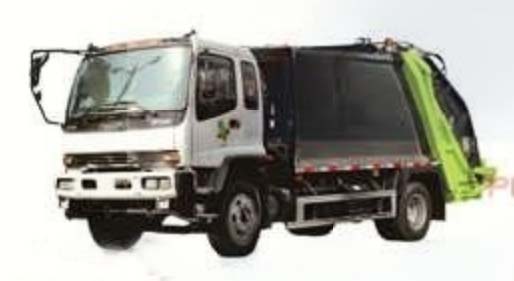

14CBM-COMPACTOR |
| Chassis Brand |
ISUZU |
| Overall Dimension |
8860*2500*2980mm
|
| GVW/Kerb Weight |
16000kg/6750kg |
| Cab Capacity |
3 persons allowed |
| Air Conditioner |
Heating/cooling air conditioner |
| Fuel Type |
Diesel |
| Engine Brand |
ISUZU |
| Power |
350 HP (205HP.240HP.300HP) |
| Displacement |
5200ml |
| Emission Standard |
Euro IV or V |
| Drive Type |
4X2, 6X4(left hand drive) |
| Transmission |
ZF 8 speed levers with 1 reverse |
| Wheelbase/No. of axle |
4500 mm/2 |
| Tire Specification |
10.00-20 |
| Tire Number |
6 tires and 1 spare tire |
| Max Speed |
95 km/h |
| Paint |
Metallic paint |
| Body capacity |
14cbm（12-20cbm） |
| Fill Hopper capacity |
1.6cbm |
| Sewage tank |
200L/400L |
| Filling work cycly time |
20~25 s |
| Discharge model |
Horizontal Ejection |
| Control system |
Electrically Hydraulic control Manual hydraulic control |
| Control panel |
English or Your language |
|
|
