| Model |

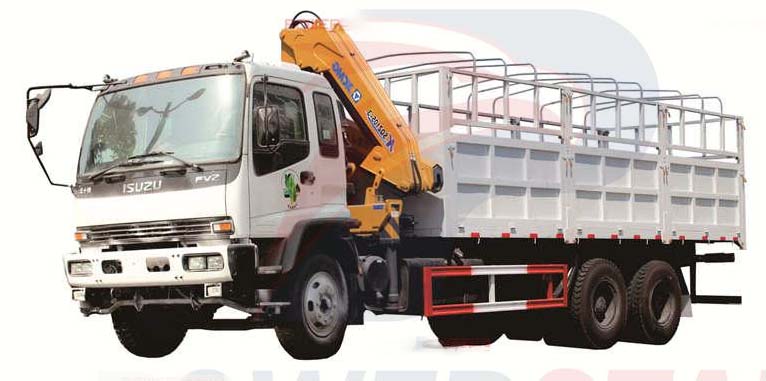

5T-CRANE-TRUCK |
| Chassis Brand |
ISUZU |
| Overall Dimension |
7350*2350*2730mm
|
| GVW/Kerb Weight |
10000kg/6750kg |
| Cab Capacity |
3 persons allowed |
| Air Conditioner |
Heating/cooling air conditioner |
| Fuel Type |
Diesel |
| Engine Brand |
ISUZU |
| Power |
190HP(98HP,120HP,130HP) |
| Displacement |
5200ml |
| Emission Standard |
EuroIVc or V |
| Drive Type |
4X2(left hand drive) |
| Transmission |
ISUZU MLD 6 speed levers with 1 reverse |
| Wheelbase/No. of axle |
3815 mm/2 |
| Tire Specification |
8.25-16 |
| Tire Number |
6 tires and 1 spare tire |
| Max Speed |
95 km/h |
| Paint |
Metallic paint |
| Crane Lifting |
5 Tons |
| Max Lifting Moment |
6.8 T.M |
| Hydraulic oil tank |
30L |
| Cargo body |
4500x2200x550 mm |
| Floor material |
Checkered plate or Wood |
| Control system |
Manual hydraulic control |
| Control panel |
English or Your language |
|
|
