| Model |

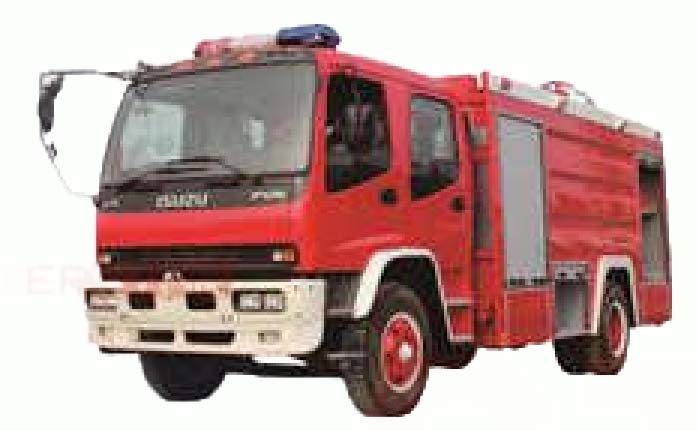

8000L-FIRE-TRUCK |
| Vehicle Brand Series |
ISUZU |
| Vehicle Model |
PT5250GXFPM50 |
| Overall dimensions |
12350*2500*3500mm |
| Gross weight |
25000kg |
| Curb weight |
14580kg |
| wheel base |
5100+1300 |
| Driving type |
6*4 |
| Number of axles |
3 |
| Tire spaecification |
12.00-20 |
| Number of Tires |
10+1 |
| Passengers in cab |
2+4 |
| Engine model |
6HK1-TCG40 |
| Type of fuel |
Diesel |
| Power/Displacement |
280HP/7790ml |
| Max speed |
110Km/h |
| Emission standard(TAS) |
EURO 4/ |
| TANk capacity |
Water tank capacity:8000L |
| Foam tank capacity:2000L |
| Powder tank capacity:1000L |
| Fire pump |
Model:CB10/60 |
| Pressure(Mpa):1.0 |
| Rate(L/S):60 |
| Fire monitor |
Model:Ps48 |
| Flow:48L/S |
| Water jet distance:255m |
| Foam jet distance: >50m |
| Electronic alarm |
LY CJB-100-C24 |
| Alarm lamp |
LY TBD-XF-168LED |
|
|
