| Model |

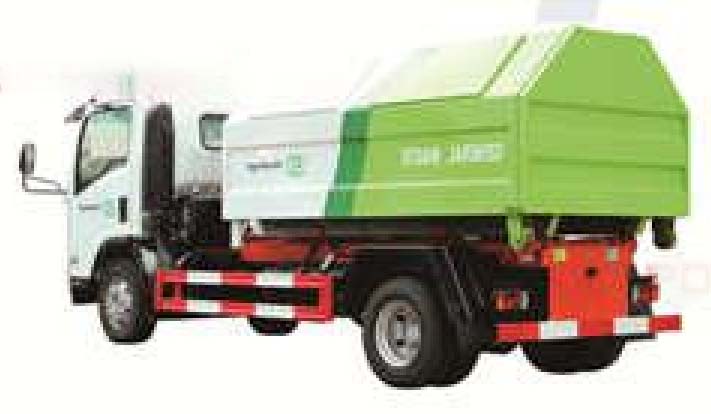

8CBM-HOOK-LIFT |
| Chassis Brand |
ISUZU NKR |
| Overall Dimension |
6100*2200*2650mm
|
| GVW/Kerb Weight |
11000kg/4100kg |
| Cab Capacity |
3 persons allowed |
| Air Conditioner |
Heating/cooling air conditioner |
| Fuel Type |
Diesel |
| Engine Brand |
ISUZU |
| Power |
190 HP |
| Displacement |
5199ml |
| Emission Standard |
Euro IV or V |
| Drive Type |
4X2(left hand drive) |
| Transmission |
5 speed levers with 1 reverse |
| Wheelbase/No. of axle |
3815 mm/2 |
| Tire Specification |
8.25-16 |
| Tire Number |
6 tires and 1 spare tire |
| Max Speed |
90 km/h |
| Paint |
Metallic paint |
| Lift Capacity |
8 Tons |
| Max dump angel |
51° |
| Garbage bin volume |
8 cubic meters |
| Hydraulic system pressure |
16MPa |
| Control |
Hydraulic Manual |
| Discharge method |
Rear dumping |
|
|
