| Model |

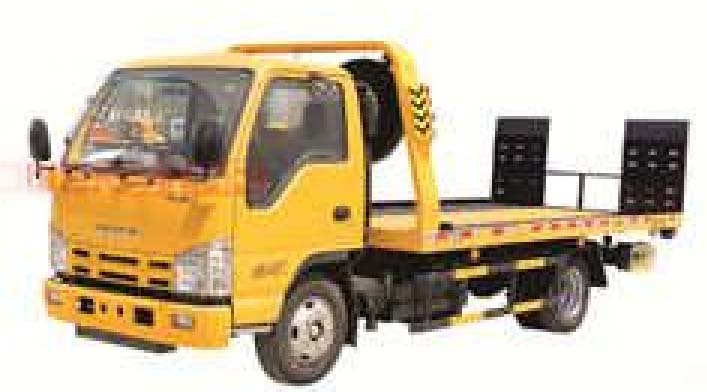

PT5100TQZ |
| Driving Type |
4*2(Left hand drive) |
| Wheelbacw |
4475mm |
| Cab |
Forward control over engine, all-steel-welded construction |
| Rated towing weight |
7000kg |
| Max. Lifting weight |
2500kg |
Max. Lifting weight of full extending
boom |
1800kg |
| Effective length of boom |
1600mm |
| Extension traveling of boom |
1200mm |
| Elevation of boom (upper/ lower) |
9°~-10° |
Min. Elevation of full extending
platform |
8° |
| Max. Loading of platform |
5000kg |
External dimension of platform
(LxWxH) |
6200*2400mm |
| Ground clearance of cage floor |
1035mm |
| Max. Pulling power of winch |
4000kg |
| Dia. Of steel cable |
10mm |
| Length of steel cable |
25m |
| Min. Speed of steel cable |
4.5m/min |
| Engine Model |
4HK1-TCG40 |
| Engine Type |
Diesel,turbo charged inter-cooled,4 cylundel |
| Max.Power |
139KW |
