SEM518

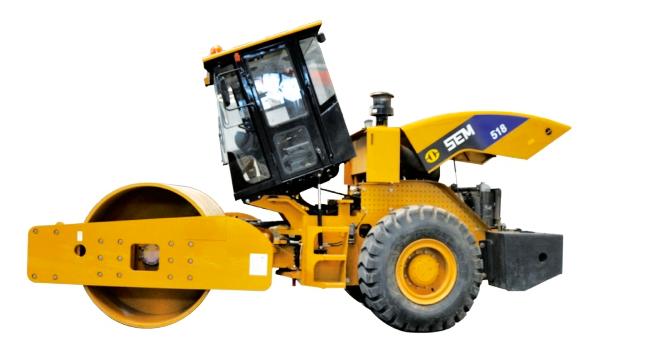

SEM518 - Soil Compactor

Model	SEM518
Operating Weight	18000kg
Compaction
Vibration Frequency(High/Low)	30/28Hz
Amplitude (High/Low)	2/1mm
Excitation Force (High/Low)	327/188KN
Static Pressure	415N/cm
Engine
Rated Power	129kw
Speed	2000r/min
Fuel Tank Volume	262L
Hydraulic Oil Tank Volume	80L
Drum
Dum Width	2130mm
Dum Diameter	1600mm
Dum Thickness	40mm
Tires
Tres Type	20.5-25
Speed
FRI	2.98km/h
FRII	5.88km/h
FRIII	9.60km/h
Swing Angle	±12*
Sleering Angle	±33*
Outer Tuming Radius	6350mm
Max. Gradeability	34%

SEM518

SEM520

SEM522

All specifications are approximate. Specifications are subject to change without notice.
