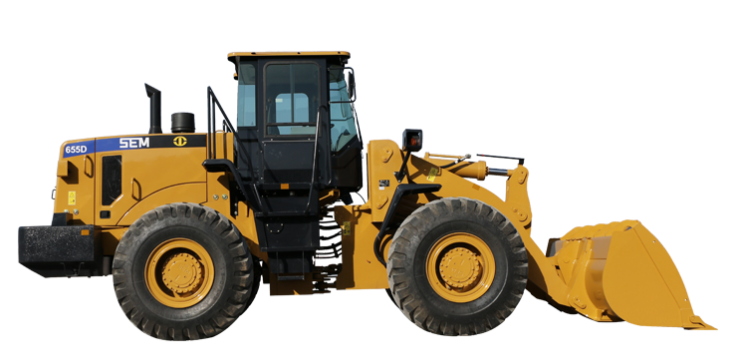

| Model |
SEM 655D Weichai |
SEM 655D Cummins |
| Rated Payload |
5000kg |
5000kg |
| Operating Weight with Standard Bucket |
16800kg |
16700kg |
| Bucket Capacity |
2.7-4.5m³ |
2.7-4.5m³ |
| Wheel Base |
3200m |
3200mm |
| Overall Dimension |
8085×2963×3463mm |
8085×2963×3463mm |
| Breakout Force |
168kN |
168kN |
| Dump Clearance |
3058mm |
3058mm |
| Articulated Angle |
38±1° |
38±1° |
| Transmission Type |
Power shift Countershaft |
| Transmission Gears |
F4/R4 |
| Torque Converter Type |
Sigle stage 3 elements |
| Forward I/Reverse I |
7.8/7.8km/h |
| Forward II/Reverse II |
15/15km/h |
| Forward III/Reverse III |
22/22km/h |
| Forward IV/Reverse IV |
39/39km/h |
| Maker & Type |
SEM TR200 |
| Main Reducer type |
Spiral bevel gear, single stage |
|
| Final Drive Reduction Type |
Planetary type, singe stage |
|
| Rear- oscillation +/- |
±11° |
|
| Engine Model |
Weichai WD10G |
Cummins 6LT9.3 |
| Rated Power |
162kW |
162kW |
| Rated Speed |
2,000r/min |
2,000r/min |
| Displacement |
9.726L |
9.242L |
| Implement System Type |
Twin pump flow merging hydraulic system |
Twin pump flow merging hydraulic system |
| Hydraulic Cycle Time |
9.5s |
9.5s |
| System Pressure Setting |
17Mpa |
17Mpa |
| Raise |
5.13s |
5.13s |
| Service Brake |
Dry & caliper, air to oil control |
Dry & caliper, air to oil control |
| Parking Brake |
Drum type shoe brake, spring applied & oil released |
Drum type shoe brake, spring applied & oil released |
| System Type |
Flow amplifying |
Flow amplifying |
| Steering Pump Type |
Gear pump |
Gear pump |
| System Pressure Setting |
16Mpa |
16Mpa |
| Steering Angle (L/R) |
38±1° |
38±1° |
| Engine Lubricating Oil |
21L |
21L |
| Hydraulic System |
165L |
165L |
| Transmission Oil |
53L |
53L |
| Size |
23.5-25 |
23.5-25 |
| Type |
Bias |
Bias |
| Layer |
16 |
16 |
| Textured Type |
L3/E3 |
L3/E3 |
|
|
