| Model |

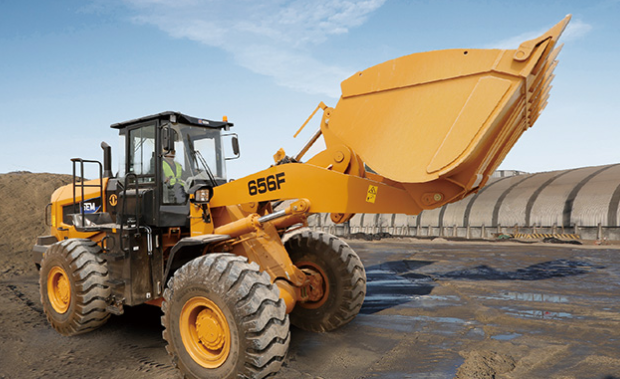

SEM 656F |
| Rated Payload |
5500kg |
| Operating Weight with Standard Bucket |
17385kg |
| Bucket Capacity |
2.6-5m³ |
| Wheel Base |
3350mm |
| Overall Dimension |
8472×3117×3465mm |
| Max. Drawbar Force |
170kN |
| Breakout Force |
161kN |
| Dump Clearance |
2,991mm |
| B-Pin Height |
4162mm |
| Transmission Type |
Countershaft, power shift |
| Transmission Gears |
F4/R4 |
| Torque Converter Type |
Single stage, 3 elements |
| Forward I/Reverse I |
7.6/7.6 |
| Forward II/Reverse II |
14/14 |
| Forward III/Reverse III |
22/22 |
| Forward IV/Reverse IV |
39/39 |
| Maker & Type |
TR200 |
| Main Drive Type |
Spiral bevel gear, single stage |
| Final Drive Reduction Type |
Planetary type, single stage |
| Rear- oscillation +/- |
±11 |
| Engine Model |
WD10G220E23 |
| Rated Power |
162kW |
| Rated Speed |
2,000r/min |
| Displacement |
9.7L |
| Implement System Type |
Open center flow sharing |
| Boom Raise Time |
5.13s |
| Hydraulic Cycle Time |
9.3s |
| System Pressure Setting |
17MPa |
| Service Brake |
Dry&caliper, air to oil control |
| Parking Brake |
Drum/Shoe |
| System Type |
Load sensing |
| Steering Pump Type |
Gear pump |
| System Pressure Setting |
16MPa |
| Steering Angle (L/R) |
38±1 |
| Size |
23.5-25 |
| Type |
Bias |
| Layer |
16 |
| Textured Type |
L-3 |
|
|
