| Model |

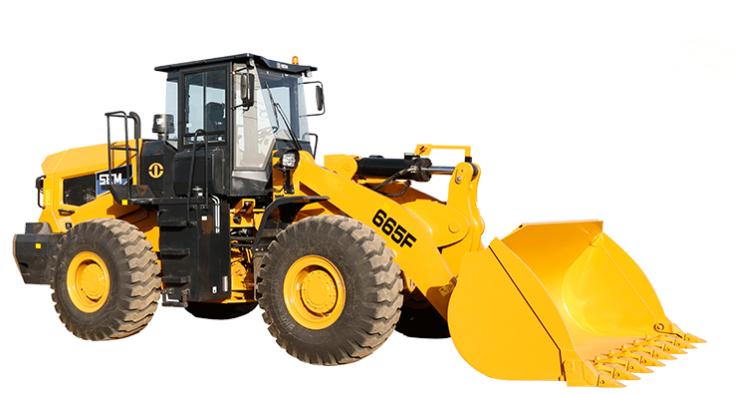

SEM 665F |
| Rated Payload |
6500 (for Std. Linkage) kg |
| Operating Weight with Standard Bucket |
20500kg |
| Bucket Capacity |
2.9-5.5m³ |
| Wheel Base |
3400mm |
| Overall Dimension |
8704×3092×3458mm |
| Max. Drawbar Force |
220kN |
| Breakout Force |
188kN |
| Dump Clearance |
3050mm |
| B-Pin Height |
4196 (for Std. Linkage) mm |
| Transmission Type |
EH countershaft. power shift |
| Transmission Gears |
F2/R1 |
| Maker & Type |
SEM TR220 |
| Forward I |
11.6km/h |
| Forward II |
38.5km/h |
| Reverse l |
15.5km/h |
| Main Drive Type |
Spiral bevel gear, single stage |
| Final Drive Reduction Type |
Planetary type, single stage |
| Rear- oscillation +/- |
±11° |
| Engine Model |
WD10G240 |
| Rated Power |
178kW |
| Rated Speed |
2000r/min |
| Displacement |
9.7L |
| Implement System Type |
Open center flow sharing |
| Boom Raise Time |
5.7s |
| Hydraulic Cycle Time |
9.8s |
| System Pressure Setting |
20MPa |
| Service Brake |
Dry & caliper, air to oil contro |
| Parking Brake |
Drum/Shoe |
| System Type |
Load sensing |
| Steering Pump Type |
Piston pump |
| System Pressure Setting |
18MPa |
| Steering Angle (L/R) |
38±1° |
| Size |
23.5-25 |
| Type |
Bias |
| Layer |
20 |
| Textured Type |
L-3 |
