| Model |

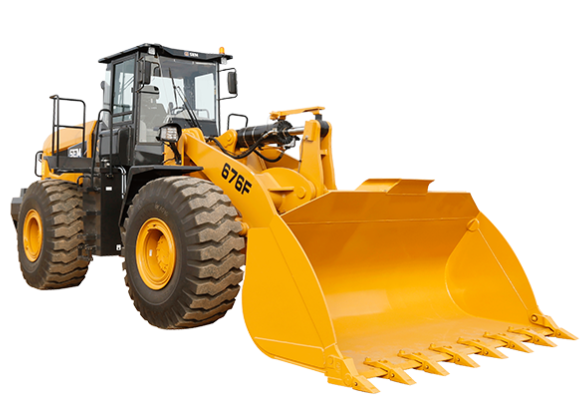

SEM 676F |
| Rated Payload |
7100 (for Std. Linkage) kg |
| Operating Weight with Standard Bucket |
23350kg |
| Bucket Capacity |
4.2-6.5m³ |
| Wheel Base |
3550mm |
| Overall Dimension |
9012× 3259×3529mm |
| Max. Drawbar Force |
215kN |
| Breakout Force |
215kN |
| Dump Clearance |
3250mm |
| B-Pin Height |
4411 (for Std. Linkage)mm |
| Transmission Type |
EH countershaft. power shift |
| Transmission Gears |
F4/R3 |
| Torque Converter Type |
Single stage, 3 elements |
| Forward I/Reverse I |
7.1/7.1km/h |
| Forward II/Reverse II |
12.7/12.7km/h |
| Forward III/Reverse III |
23.8/23.8km/h |
| Forward IV |
39km/h |
| Maker & Type |
SEM TR240 |
| Main Drive Type |
Spiral bevel gear, single stage |
| Final Drive Reduction Type |
Planetary type, single stage |
| Rear- oscillation +/- |
±11° |
| Engine Model |
WP10G270 |
| Rated Power |
199kW |
| Rated Speed |
2200r/min |
| Displacement |
9.7L |
| Implement System Type |
Open center flow sharing |
| Boom Raise Time |
5.7s |
| Hydraulic Cycle Time |
9.8s |
| System Pressure Setting |
24MPa |
| Service Brake |
Dry & caliper, air to oil contro |
| Parking Brake |
Drum/Shoe |
| System Type |
Load sensing |
| Steering Pump Type |
Piston pump |
| System Pressure Setting |
20MPa |
| Steering Angle (L/R) |
35±1° |
| Size |
26.5-25 |
| Type |
Bias |
| Layer |
24 |
| Textured Type |
L-3 |
|
|
