| Transport type |

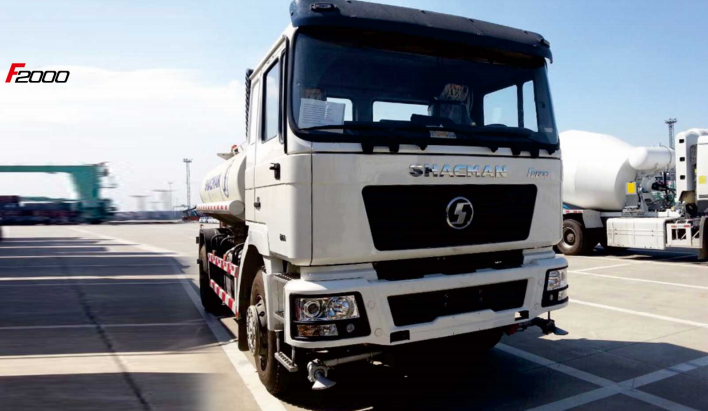

Sprinkler |
| Logistics type |
Water |
| Distance (km) |
≤50 |
| Road type |
Paved roads |
| Drive |
4×2 |
6×4 |
| Max weight(t) |
≤20 |
≤40 |
| Max speed(km/h) |
90 |
90 |
| Loaded speed(km/h) |
50~70 |
50~70 |
| Vehicle model |
SX5185GSSJL461 |
SX5255GSSJM434 |
| Engine |
WP10.270 |
WP10.290 |
| Emission standard |
Euro Ⅱ |
Euro Ⅱ |
| Displacement |
9.7L |
9.7L |
| Rated Output |
199kW |
233kW |
| Max. torque |
1100N·m |
1160N·m |
| Transmission |
9JS119+QH50 |
9JS119+QH50 |
| Clutch |
430 |
430 |
| Frame |
850×300(8 + 5) |
850×300(8 + 5) |
| Front axle |
MAN 7.5T |
MAN 7.5T |
| Rear axle |
13T STR double reduction 4.8 |
13T STR double reduction 4.8 |
| Tire |
12.00R20 |
12.00R20 |
| Front Suspension |
Multi leaf springs |
Multi leaf springs |
| Rear Suspension |
Multi leaf springs |
Multi leaf springs |
| Fuel |
Diesel |
Diesel |
| Capacity of the fuel tank |
400L (Aluminum shell) |
400L (Aluminum shell) |
| Battery |
165Ah |
165Ah |
| Dimensions(L×W×H) |
7450×2495×3270 |
9275×2495×3774 |
| Volume(m³) |
10 |
25 |
| Wheelbase |
4600 |
4375 + 1400 |
| Approach / Departure angle (°) |
20/18 |
20/18 |
| Max.gradeability(%) |
34 |
34 |
| Cab Type |
MAN F2000, lengthened flat roof |
| Cab Equipments |
Rear window
Mechanical clerestory
Hydraulic suspension of cab
Hydraulic driver seat with seatbelts
One sleeping bed
Hydraulic reversal
Radio with MP3 player |
| Cab Optional |
Air cushioned drivers seat
Full vehicle WABCO valve
Electronic air conditioning with temperature control |
