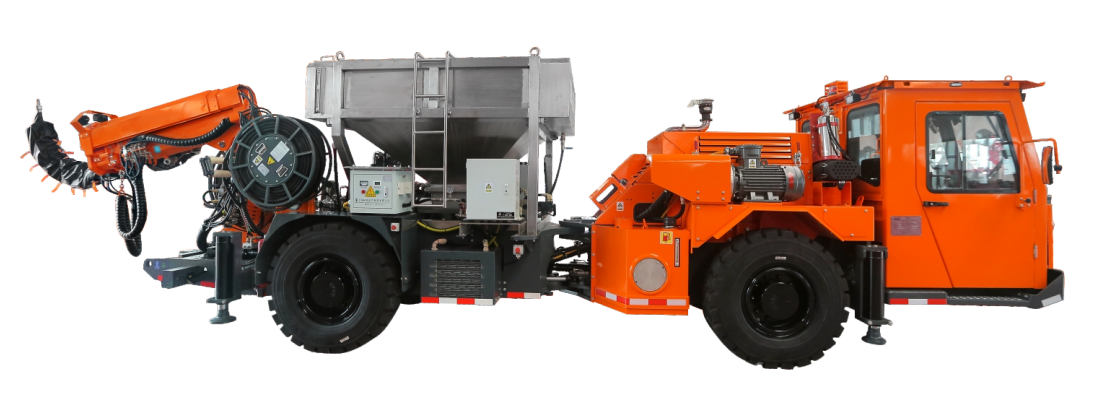

SITON BCJR-2000

BCJR-2000 - SITON BCJR-2000 - China SITON Mining Auxiliary Vehicles

Model	BCJR-2000
Applicable Materials	Bulk Emulsified Explosive or Matrix
Charging Speed (kg/min)	40 - 80
Pipe - feeding Speed (mm/s)	40 - 80
Maximum Pipe - feeding Depth (m)	50
Medicine Return Rate (%)	≤1
Charging Vessel Capacity (kg)	2500
Number of Operators	2 persons
Equipment Overall Dimensions (mm)	7450×2000×2650
Travel Speed (km/h)	0 - 8
Turning Radius (m)	Inside 4080, Outside 6300
Operation Mode	Wireless Remote Controller
Climbing Ability (Heavy Load)	Longitudinal 14°, Lateral 7°

QM1

QM2

QM2C

QM3

UPT-96/2500

HP4

HP7

KJCJ-4

CY-3500

CY-5000

FCB-3

FCB-5

FQ-2A

FQ-2B

FL-5A

FL-5B

RU-23

UC-1.5A

UC-1.5B

UC-2

UCB-0.5

UCB-0.5A

UX-6A

BCJR-2000

All specifications are approximate and subject to change without notice.
