| Model |

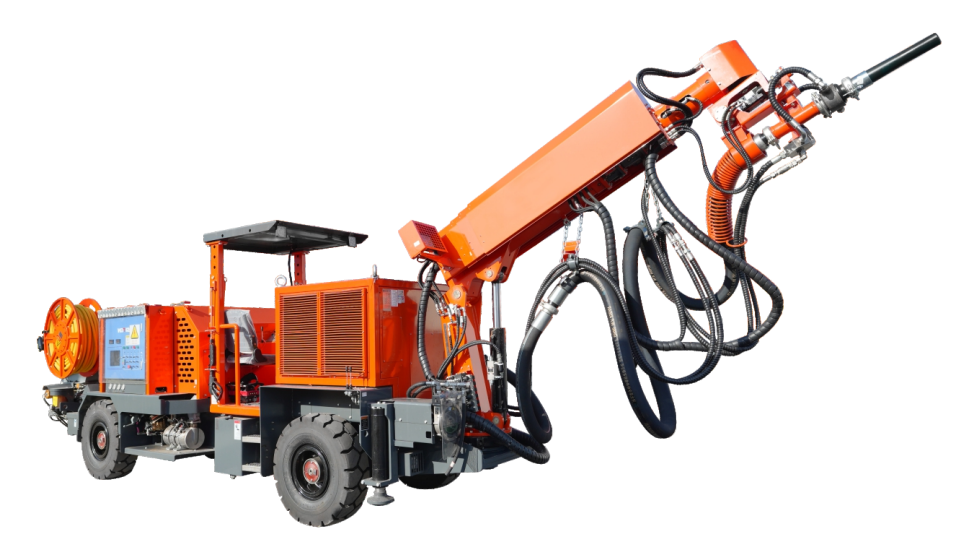

HP4 |
| Length×Width×Height (mm) |
10419×1750×2355 |
| Dead Weight (kg) |
12800 |
| Rated Power of Motor (kw) |
45 (Plateau) |
| Rated Power of Diesel Engine (kw) |
59 |
| Engine Model |
YCD4T23T8 - 80 |
| Front and Rear Axle Drive Mode |
4×4 |
| Maximum Travel Speed (km/h) |
9 |
| Maximum Climbing Gradient (°) |
20 |
| Minimum Outer Turning Radius (mm) |
6200 |
| Minimum Inner Turning Radius (mm) |
3800 |
| Boom Structure Form |
Telescopic |
| Maximum Vertical Jet Height (m) |
8 |
| Maximum Horizontal Jet Width (m) |
2×6.5 |
| Jet Depth (m) |
2.5 |
| Boom Pitch Angle (°) |
-35~+60 |
| Boom Telescopic Range (mm) |
2900 |
| Nozzle Rotation Angle (°) |
360 |
| Nozzle Swing Angle (°) |
240 |
| Theoretical Displacement (m³/h) |
20 |
| Pumping Outlet Pressure (Mpa) |
≤7.5 |
| Delivery Cylinder Bore×Stroke (mm) |
Φ160×800 |
| Delivery Pipe Diameter (mm) |
Φ125 - Φ90 |
| Nozzle Diameter (mm) |
Φ50 |
| Cable (m) |
70 |
| External Power Supply |
380V/50HZ |
| Operation Mode |
Wireless Remote Control |
| Control Mode |
Controller Control + Touch Screen Display |
| Air Compressor Displacement (m³/min) |
9.5 |
| Air Compressor Working Pressure (Mpa) |
0.5 |
| Maximum Output of Additive (L/h) |
500 |
| Additive System Pressure (Mpa) |
0.5 |
| Accelerator Tank Volume (L) |
200 |
| Receiving Height (mm) |
1270 |
