| Model |

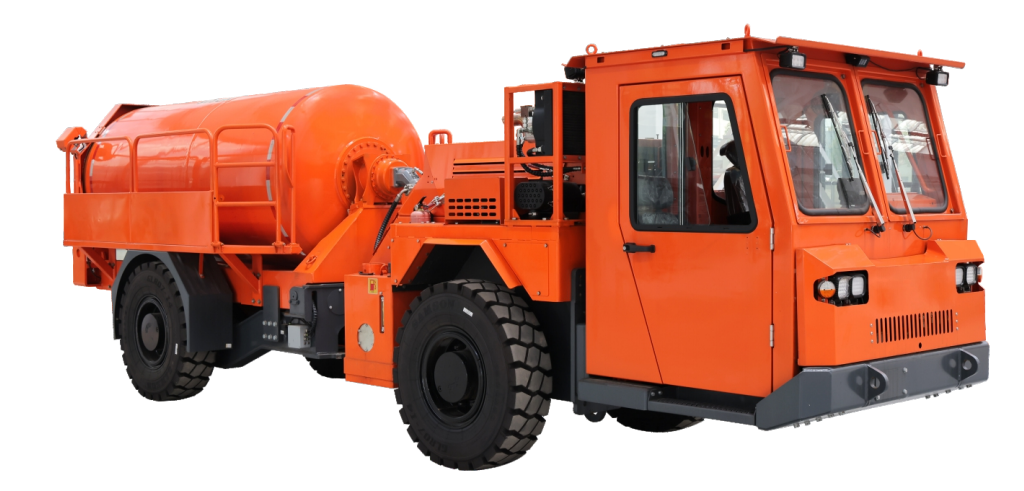

KJCJ-4 |
| Load (KG) |
10000 |
| Dead Weight (KG) |
12000 |
| Gross Weight (KG) |
22000 |
| Maximum Climbing Gradient (°) |
15 |
| Maximum Speed (km/h) |
25 |
| Overall Dimension - Total Length (mm) |
9135 |
| Overall Dimension - Total Width (mm) |
2000 |
| Overall Dimension - Total Height (mm) |
2499 |
| Wheelbase (mm) |
3700 |
| Track (mm) |
1680 |
| Minimum Ground Clearance (mm) |
≥270 |
| Front Axle Swing Angle (°) |
±8 |
| Engine Model |
F4.5CSC4168 Four - Cylinder |
| Total Engine Power |
125kW |
| Transmission Model |
BED431800099 |
| Front Axle |
Split Wide Drive Axle DRS0 - 22C - I(Q) |
| Rear Axle |
Split Wide Drive Axle DRS0 - 22C - I(H) |
| Steering System Type |
Full - Hydraulic Steering |
| Steering Angle (°) |
40 |
| Minimum Turning Radius (m) |
Inside |
3.9±0.2 |
| Outside |
6.5±0.2 |
| Forward (km/h) |
Gear I |
5 |
| Gear II |
8 |
| Gear III |
15 |
| Gear IV |
25 |
| Backward (km/h) |
Gear I |
5 |
| Gear II |
8 |
| Gear III |
10 |
| Geometric Volume (m³) |
5.5 |
| Unloading Speed (m³/min) |
0.5 - 0.86 |
| Agitation Speed (rpm) |
Unloading |
10 - 0.8 |
| Traveling |
0.8 |
