| Model |

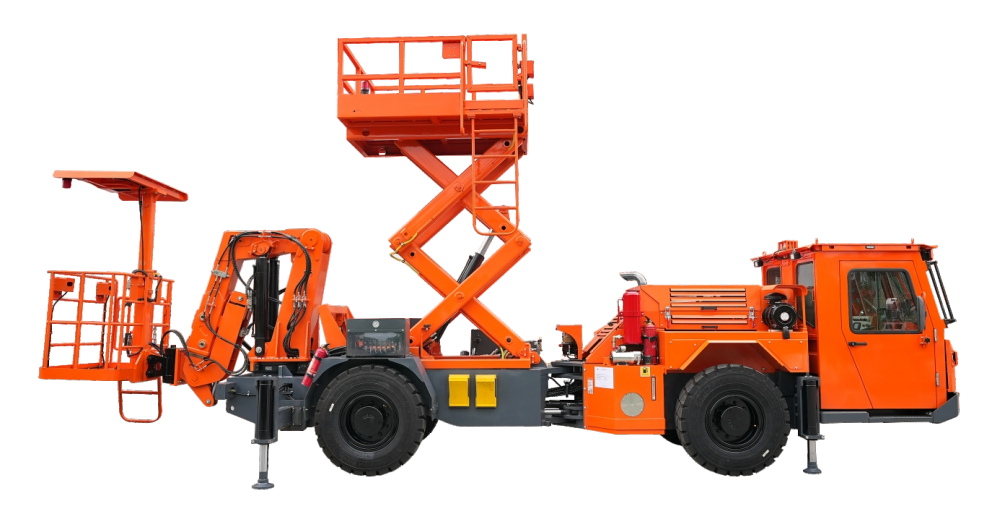

UC-2 |
| Load (KG) |
500/2000 |
| Dead Weight (KG) |
15500 |
| Gross Weight (KG) |
18000 |
| Maximum Climbing Gradient (°) |
14 |
| Maximum Speed (km/h) |
25 |
| Overall Dimension - Total Length (mm) |
9720±100 |
| Overall Dimension - Total Width (mm) |
2095±100 |
| Overall Dimension - Total Height (mm) |
2600±100 |
| Wheelbase (mm) |
3650 |
| Track (mm) |
1680 |
| Minimum Ground Clearance (mm) |
≥300 |
| Front Axle Swing Angle (°) |
±8 |
| Engine Model |
F4.5CSC4168 Four - Cylinder |
| Total Engine Power |
125kW |
| Transmission Model |
BED431800099 |
| Front Axle |
Split Wide Drive Axle DR50 - 22C - I(Q) |
| Rear Axle |
Split Wide Drive Axle DR50 - 22C - I(H) |
| Steering System Type |
Full - Hydraulic Steering |
| Steering Angle (°) |
40 |
| Minimum Turning Radius (m) |
Inside |
3950±100 |
| Outside |
6690±100 |
| Forward (km/h) |
Gear I |
5 |
| Gear II |
8 |
| Gear III |
15 |
| Gear IV |
25 |
| Backward (km/h) |
Gear I |
5 |
| Gear II |
8 |
| Gear III |
15 |
| Tire |
12R20 |
| Maximum Lifting Weight of Basket (kg) |
500 |
| Maximum Working Height of Basket (mm) |
3900 |
| Working Angle of Basket (°) |
±35 |
| Maximum Height of Basket (mm) |
6020 |
| Maximum Lifting Weight of Scissor Platform (kg) |
2000 |
| Maximum Lifting Height of Scissor Platform (mm) |
2000 |
| Maximum Working Height of Scissor Platform (mm) |
3750 |
