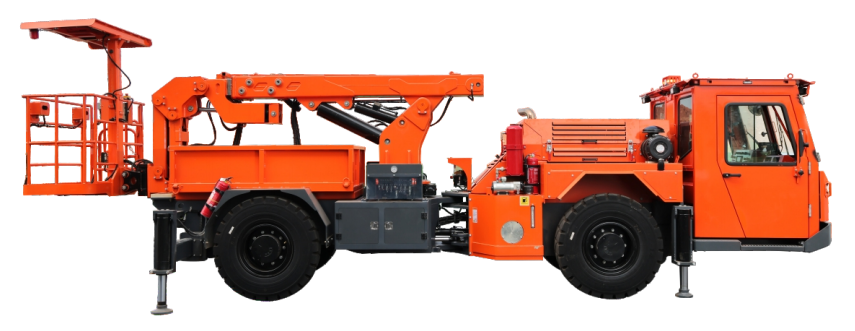

| Model |
UCB-0.5A |
| Load (KG) |
500/2000 |
| Dead Weight (KG) |
14500 |
| Gross Weight (KG) |
17000 |
| Maximum Climbing Gradient (°) |
14 |
| Maximum Speed (km/h) |
25 |
| Overall Dimension - Total Length (mm) |
9000 |
| Overall Dimension - Total Width (mm) |
2000 |
| Overall Dimension - Total Height (mm) |
2530 |
| Wheelbase (mm) |
3650 |
| Track (mm) |
1680 |
| Minimum Ground Clearance (mm) |
≥270 |
| Front Axle Swing Angle (°) |
±8 |
| Engine Model |
F4.5CSC4168 Four - Cylinder |
| Total Engine Power |
125kW |
| Transmission Model |
BED431800099 |
| Front Axle |
Split Wide Drive Axle DR50 - 22C - I(Q) |
| Rear Axle |
Split Wide Drive Axle DR50 - 22C - I(H) |
| Steering System Type |
Full - Hydraulic Steering |
| Steering Angle (°) |
40 |
| Minimum Turning Radius (m) |
Inside |
3.95±0.2 |
| Outside |
6.5±0.2 |
| Forward (km/h) |
Gear I |
5 |
| Gear II |
8 |
| Gear III |
15 |
| Gear IV |
25 |
| Backward (km/h) |
Gear I |
5 |
| Gear II |
8 |
| Gear III |
10 |
| Tire |
12R20 |
| Maximum Lifting Weight (kg) |
500 |
| Maximum Working Height (m) |
8.28 |
| Working Angle (°) |
Up and Down |
0 - 60 |
| Left and Right |
±30 |
| Maximum Height of Basket (m) |
6.1 (Bottom of Platform), 8.15 (Top of Shed) |
| Size of Basket (m) |
1.4×0.85 |
| Cargo Compartment Load (KG) |
2000 |
| Cargo Compartment Length (m) |
2 |
| Cargo Compartment Width (m) |
1.45 |
| Cargo Compartment Height (m) |
0.5 |
