| Model |

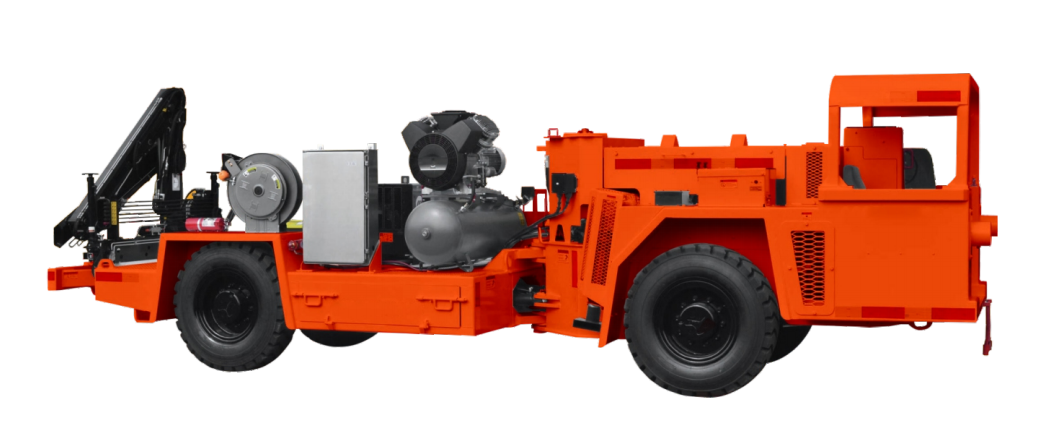

UX-6A |
| Load (KG) |
6000 |
| Dead Weight (KG) |
10000 |
| Maximum Climbing Gradient (°) |
15 |
| Maximum Speed (km/h) |
25 |
| Overall Dimension - Total Length (mm) |
7930 |
| Overall Dimension - Total Width (mm) |
1950 |
| Overall Dimension - Total Height (mm) |
2570 |
| Wheelbase (mm) |
3650 |
| Track (mm) |
1560 |
| Minimum Ground Clearance (mm) |
≥270 |
| Front Axle Swing Angle (°) |
±8 |
| Engine Model |
F4.5CSC4119 |
| Total Engine Power |
88kW |
| Transmission Model |
HTCE33322ILD |
| Front Axle |
Split Wide Drive Axle DR3022A - I(Q) |
| Rear Axle |
Split Wide Drive Axle DR3022A - I(H) |
| Steering System Type |
Full - Hydraulic Steering |
| Steering Angle (°) |
40 |
| Minimum Turning Radius (m) |
Inside |
4030±200 |
| Outside |
6350±200 |
| Forward (km/h) |
Gear I |
5.5 |
| Gear II |
8 |
| Gear III |
12 |
| Gear IV |
25 |
| Backward (km/h) |
Gear I |
5.5 |
| Gear II |
12 |
| Gear III |
25 |
| Generator Model |
WPG33/B13 |
| Rated Power of Generator (KW) |
24 |
| Output Voltage of Generator (V) |
Three - phase 400/230 |
| Model of Micro - Oil Air Compressor |
UP5 - 5TAS - 14 - 272 |
| Rated Power of Micro - Oil Air Compressor (KW) |
5.5 |
| Output Pressure of Micro - Oil Air Compressor (bar) |
14 |
| Air Displacement of Micro - Oil Air Compressor (m³/min) |
0.51 |
| Crane Model |
FS404J |
| Crane Lifting Requirement |
At a lifting amplitude of 4.5m, 800kg |
| Maximum Lifting Torque (KN.m) |
40 |
| Maximum Working Amplitude of Crane (m) |
4.5 |
| Slewing Angle of Crane (°) |
±165 |
| Welding Machine Model |
ZX7 - 315B1 |
| Input Power of Welding Machine (V/Hz) |
380 50/60 |
| Rated Input Capacity of Welding Machine (kVA) |
11.5 |
