| Model |

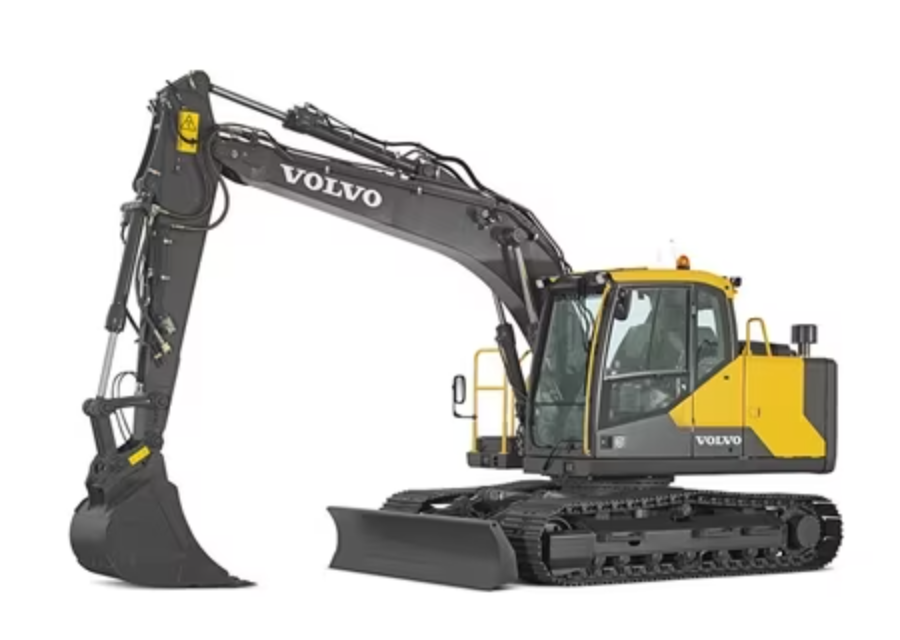

EC140E |
| Operating weight |
28,880 - 35,620 lbs |
| Bucket capacity |
0.33 - 1.01 yd³ |
| Lifting capacity, along undercarriage |
8,200 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
27'5" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
20,480 lbf |
| Breakout force, SAE J1179 (Boost) |
21,720 lbf |
| Tear out force, SAE J1179 (Normal) |
14,280 lbf |
| Tear out force, SAE J1179 (Boost) |
15,150 lbf |
| Overall width |
8'6" ft in |
| Tail swing radius |
7'3" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
