| Model |

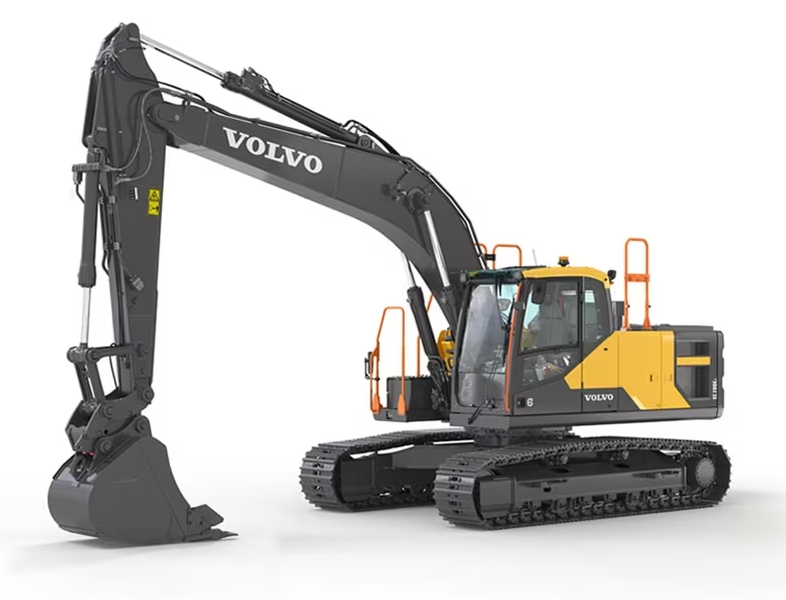

EC200E |
| Operating weight |
44,974 - 54,388 lbs |
| Bucket capacity |
0.36 - 1.44 yd³ |
| Lifting capacity, along undercarriage |
16,138 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
32'9" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
28,101 lbf |
| Breakout force, SAE J1179 (Boost) |
29,675 lbf |
| Tear out force, SAE J1179 (Normal) |
22,706 lbf |
| Tear out force, SAE J1179 (Boost) |
24,055 lbf |
| Overall width |
9'10" ft in |
| Tail swing radius |
9'4" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
