| Model |

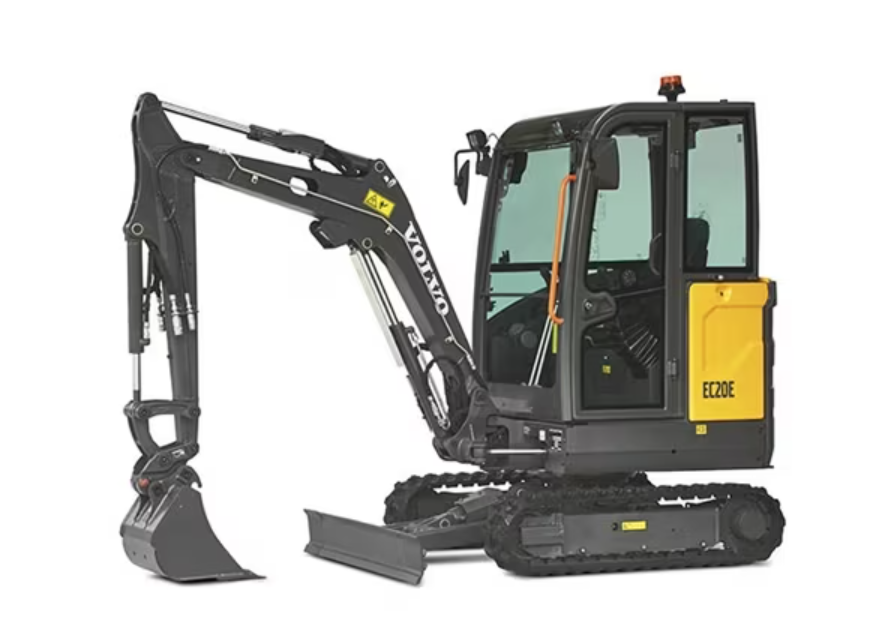

EC20E |
| Engine |
Volvo D0.9A |
| Gross power |
16.1 hp |
| Net power |
15.8 hp |
| ...at engine speed |
2,300 rpm |
| Operating weight |
4,332 lbs |
| Operating weight, canopy version |
4,147 lbs |
| Bucket capacity |
0.04 - 0.1 yd³ |
| Travel speed, low / high |
1.6 / 2.9 mph |
| Slewing speed |
9.5 rpm |
| Breakout force |
4,114 lbf |
| Tear out force (arm breakout force) |
2,765.2 lbf |
| Overall width |
3′ 3.2″ ft in |
| Overall length |
12′ 1.9″ ft in |
| Main hydraulic pump max. flow |
12.7 gal/min |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
