| Model |

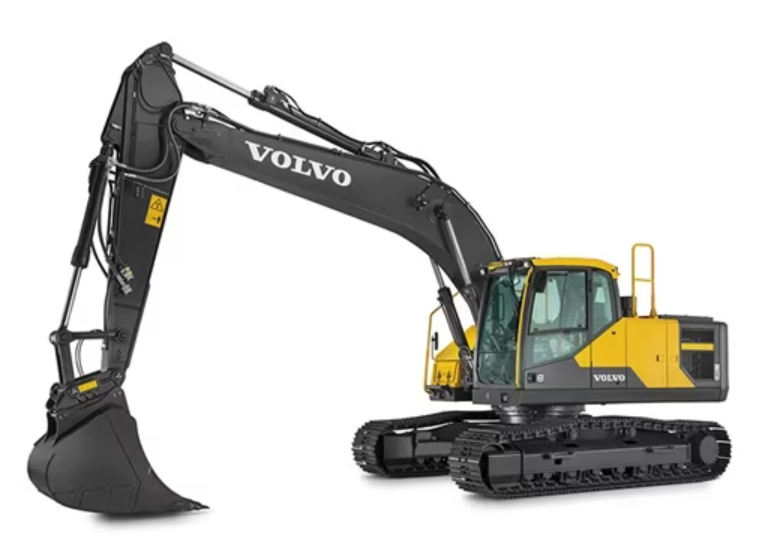

EC220E |
| Operating weight |
45,350 - 55,360 lbs |
| Bucket capacity |
0.63 - 1.88 yd³ |
| Lifting capacity, along undercarriage |
16,400 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
32' 7" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
31,700 lbf |
| Breakout force, SAE J1179 (Boost) |
33,500 lbf |
| Tear out force, SAE J1179 (Normal) |
23,380 lbf |
| Tear out force, SAE J1179 (Boost) |
24,730 lbf |
| Overall width |
9'10" ft in |
| Tail swing radius |
9'4" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
