| Model |

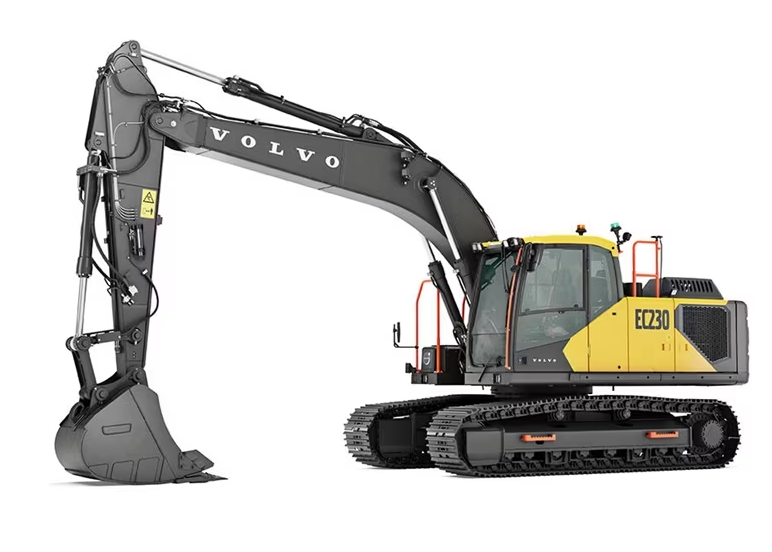

EC230 |
| Operating weight |
45,560 - 57,640 lbs |
| Bucket capacity |
0.6 - 1.88 yd³ |
| Lifting capacity, along undercarriage |
11,398 lbs |
| ...at reach / height |
24.6 / 19.7 ft |
| Max. digging reach |
32' 7" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
28,100 lbf |
| Breakout force, SAE J1179 (Boost) |
29,670 lbf |
| Tear out force, SAE J1179 (Normal) |
22,710lbf |
| Tear out force, SAE J1179 (Boost) |
24,050 lbf |
| Tail swing radius |
9'5" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
