| Model |

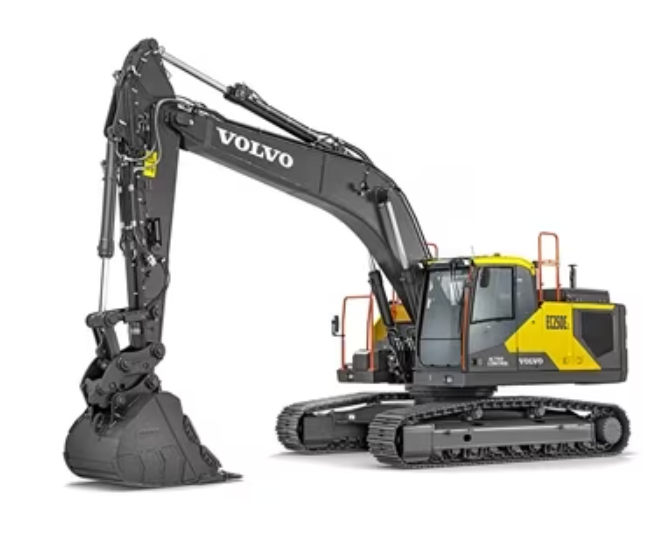

EC250E |
| Operating weight |
57,342 - 69,776 lbs |
| Bucket capacity |
0.73 - 2.3 yd³ |
| Lifting capacity, along undercarriage |
22,156.4 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
34'0" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
32,597 lbf |
| Breakout force, SAE J1179 (Boost) |
35,295 lbf |
| Tear out force, SAE J1179 (Normal) |
25,628 lbf |
| Tear out force, SAE J1179 (Boost) |
27,876 lbf |
| Overall width |
10'6" ft in |
| Tail swing radius |
10'1" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
