| Model |

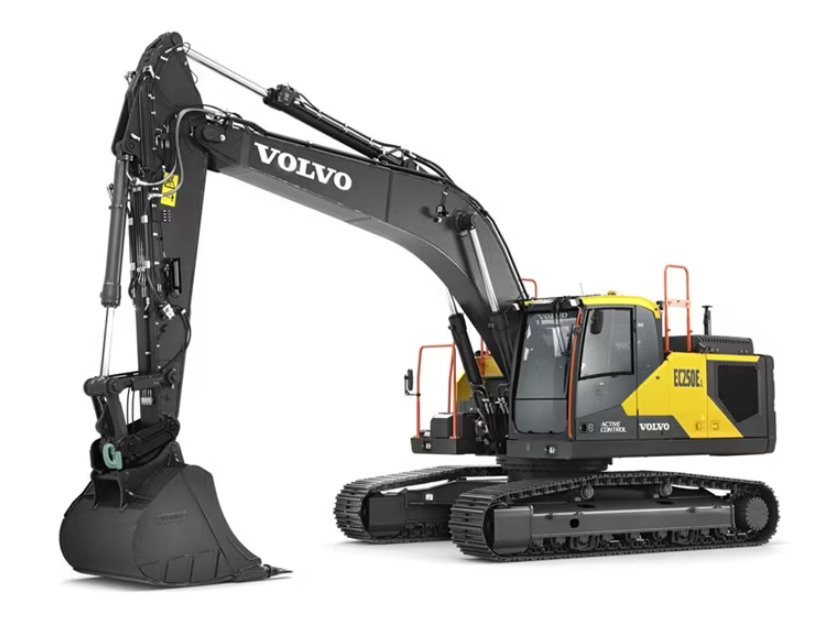

EC250E Hybrid |
| Operating weight |
60,032 - 62,413 lbs |
| Bucket capacity |
1 - 2 yd³ |
| Lifting capacity, along undercarriage |
22,156 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
33' 11" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
32,597.3 lbf |
| Breakout force, SAE J1179 (Boost) |
35,294.9 lbf |
| Tear out force, SAE J1179 (Normal) |
25,628.2 lbf |
| Tear out force, SAE J1179 (Boost) |
27,876.3 lbf |
| Overall width |
10'6" ft in |
| Tail swing radius |
10'1" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
