| Model |

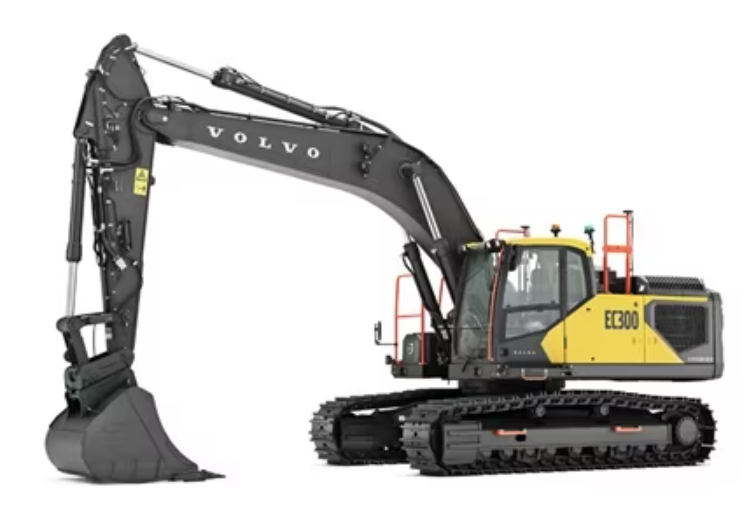

EC300 Hybrid |
| Operating weight |
65,477 - 85,539 lbs |
| Gross power |
253 hp |
| ...at engine speed |
1,400 rpm |
| Bucket capacity |
0.68 - 2.69 yd³ |
| Lifting capacity, along undercarriage |
19,820 lbs |
| ...at reach / height |
15 / 20 ft |
| Max. digging reach |
33' 5" ft in |
| Max. digging depth |
22' 5" ft in |
| Breakout force, SAE J1179 (Normal) |
36,940 lbf |
| Breakout force, SAE J1179 (Boost) |
40,200 lbf |
| Tear out force, SAE J1179 (Normal) |
35,460 lbf |
| Tear out force, SAE J1179 (Boost) |
38,590 lbf |
| Overall width |
10'6" ft in |
| Tail swing radius |
10'3" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
