| Model |

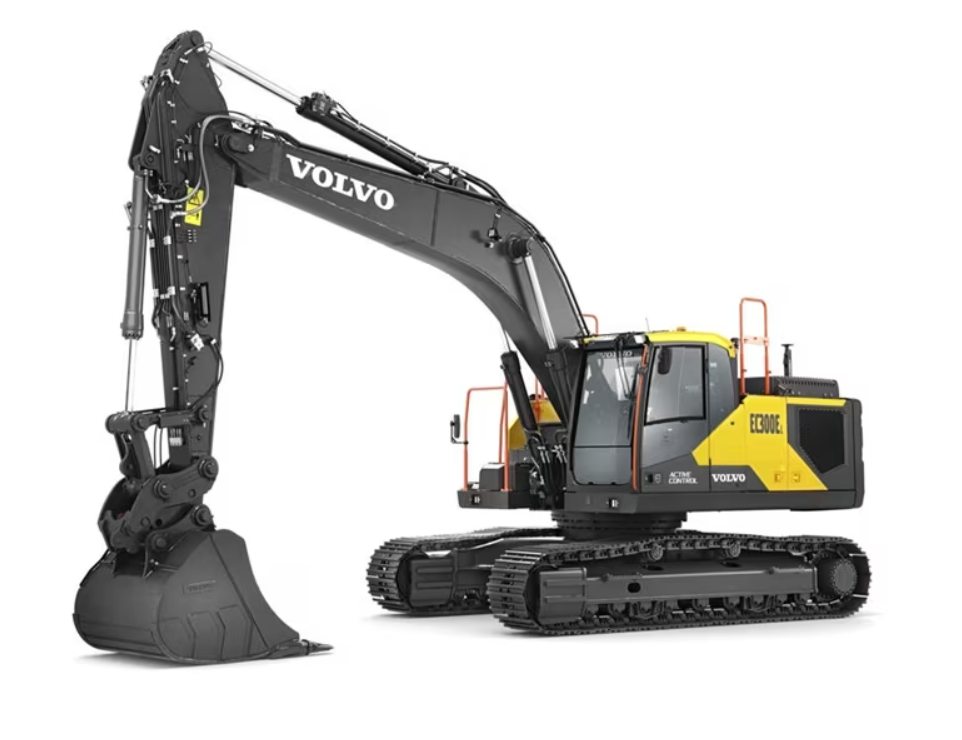

EC300E Hybrid |
| Operating weight |
68,608 - 72,135 lbs |
| Bucket capacity |
1 - 3 yd³ |
| Lifting capacity, along undercarriage |
25,264.9 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
35' 2" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
37,093.5 lbf |
| Breakout force, SAE J1179 (Boost) |
40,240.8 lbf |
| Tear out force, SAE J1179 (Normal) |
29,899.6 lbf |
| Tear out force, SAE J1179 (Boost) |
32,372.5 lbf |
| Overall width |
10'6" ft in |
| Tail swing radius |
10'3" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
