| Model |

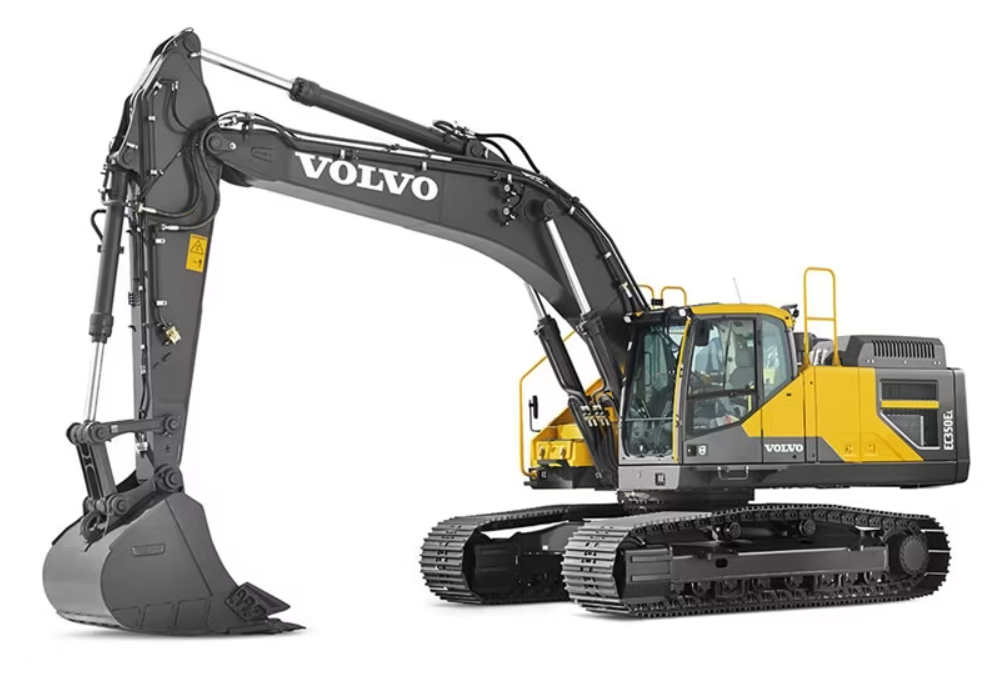

EC350E |
| Operating weight |
78,940 - 92,760 lbs |
| Bucket capacity |
1.1 - 2.5 yd³ |
| Lifting capacity, along undercarriage |
23,990 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
36' 10" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
44,510 lbf |
| Breakout force, SAE J1179 (Boost) |
48,335 lbf |
| Tear out force, SAE J1179 (Normal) |
44,040 lbf |
| Tear out force, SAE J1179 (Boost) |
47,860 lbf |
| Overall width |
11'1" ft in |
| Tail swing radius |
11'10" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
