| Model |

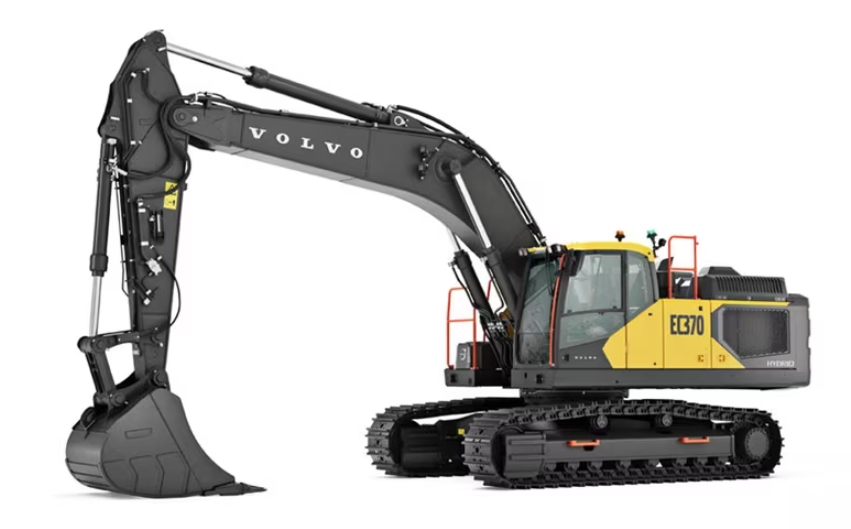

EC370 Hybrid |
| Operating weight |
82,890 - 87,460 lbs |
| Gross power |
344 hp |
| ...at engine speed |
1,200 rpm |
| Bucket capacity |
1.14 - 3.19 yd³ |
| Lifting capacity, along undercarriage |
25,360 lbs |
| ...at reach / height |
15 / 20 ft |
| Max. digging reach |
36' 10" ft in |
| Max. digging depth |
24' 11" ft in |
| Breakout force, SAE J1179 (Normal) |
44,512 lbf |
| Breakout force, SAE J1179 (Boost) |
48,559 lbf |
| Tear out force, SAE J1179 (Normal) |
36,419 lbf |
| Tear out force, SAE J1179 (Boost) |
39,791 lbf |
| Overall width |
11'2" ft in |
| Tail swing radius |
11'10" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
