| Model |

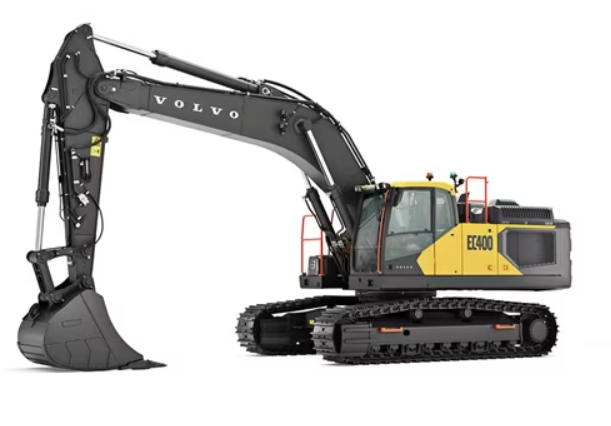

EC400 |
| Operating weight |
86,800 - 91,600 lbs |
| Bucket capacity |
1.14 - 3.79 yd³ |
| Lifting capacity, along undercarriage |
25,010 lbs |
| ...at reach / height |
15 / 20 ft |
| Max. digging reach |
36' 10" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
44,512 lbf |
| Breakout force, SAE J1179 (Boost) |
48,559 lbf |
| Tear out force, SAE J1179 (Normal) |
36,419 lbf |
| Tear out force, SAE J1179 (Boost) |
39,791 lbf |
| Tail swing radius |
11'10" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
