| Model |

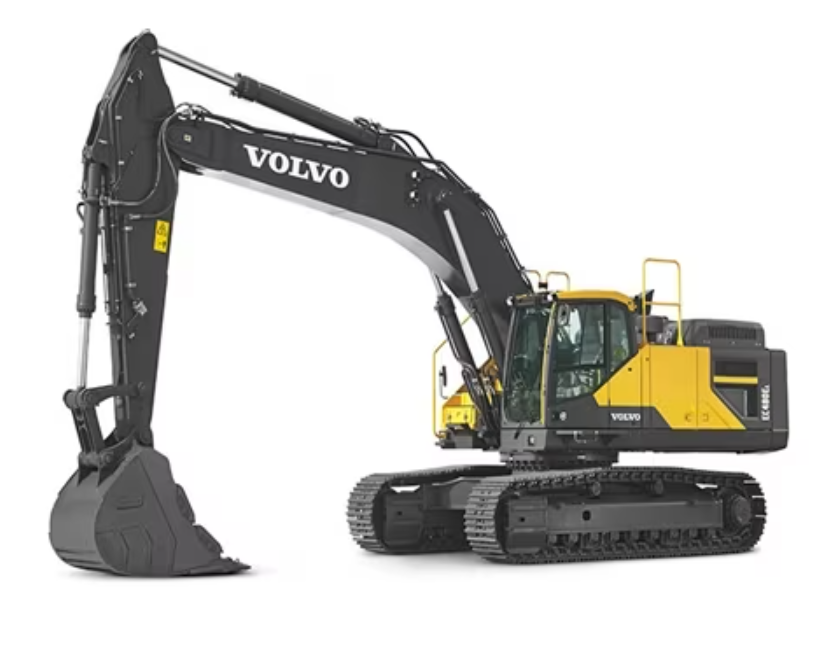

EC480E |
| Operating weight |
100,310 - 117,510 lbs |
| Bucket capacity |
2.03 - 4.32 yd³ |
| Lifting capacity, along undercarriage |
38,040 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
38'10" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
51,616 lbf |
| Breakout force, SAE J1179 (Boost) |
56,472 lbf |
| Tear out force, SAE J1179 (Normal) |
44,085 lbf |
| Tear out force, SAE J1179 (Boost) |
48,311 lbf |
| Overall width |
11'11" ft in |
| Tail swing radius |
|
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
