| Model |

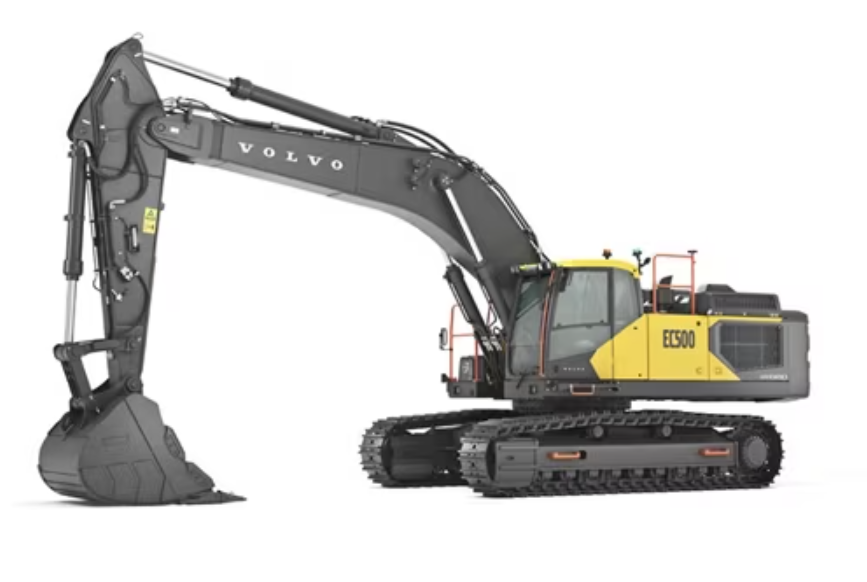

EC500 Hybrid |
| Operating weight |
106,110 - 116,400 lbs |
| Gross power |
424 hp |
| ...at engine speed |
1,300 rpm |
| Bucket capacity |
1.5 - 4.33 yd³ |
| Lifting capacity, along undercarriage |
22,980 lbs |
| ...at reach / height |
15.0 / 25.0 ft |
| Max. digging reach |
38'9" ft in |
| Max. digging depth |
24'6" ft in |
| Breakout force, SAE J1179 (Normal) |
51,706 lbf |
| Breakout force, SAE J1179 (Boost) |
56,427 lbf |
| Tear out force, SAE J1179 (Normal) |
47,435 lbf |
| Tear out force, SAE J1179 (Boost) |
51,706 lbf |
| Overall width |
11'4" ft in |
| Tail swing radius |
12'9" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
