| Model |

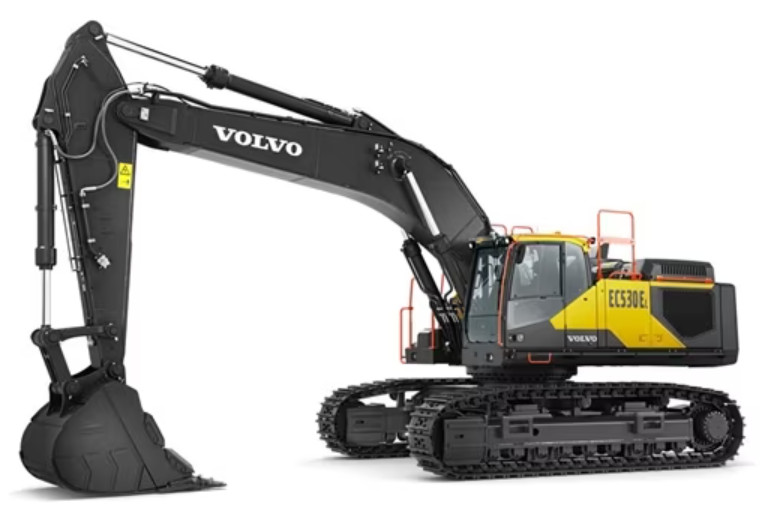

EC530E |
| Operating weight |
115,830 - 119,560 lbs |
| Bucket capacity |
3.14- 5 yd³ |
| Lifting capacity, along undercarriage |
35,957 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
40′ 0″ ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
56,450 lbf |
| Breakout force, SAE J1179 (Boost) |
60,500 lbf |
| Tear out force, SAE J1179 (Normal) |
49,480 lbf |
| Tear out force, SAE J1179 (Boost) |
52,850 lbf |
| Overall width |
11′5″ ft in |
| Tail swing radius |
12′9″ ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
