| Model |

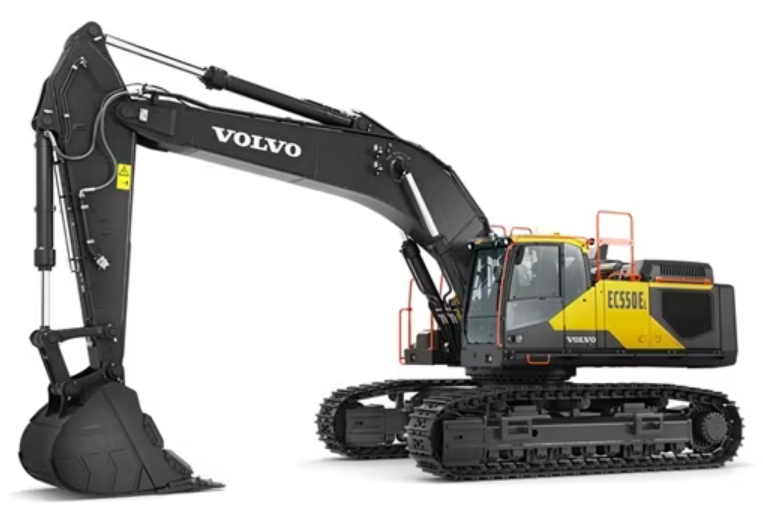

EC550E |
| Operating weight |
120,000 - 124,100 lbs |
| Bucket capacity |
3.14- 6 yd³ |
| Lifting capacity, along undercarriage |
35,957 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
40' 0" ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
56,450 lbf |
| Breakout force, SAE J1179 (Boost) |
60,500 lbf |
| Tear out force, SAE J1179 (Normal) |
49,480 lbf |
| Tear out force, SAE J1179 (Boost) |
52,850 lbf |
| Overall width (extended) |
13' 9" ft in |
| Overall width feet inches retracted |
12' 2" ft in |
| Tail swing radius |
12' 9" ft in |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
