| Model |

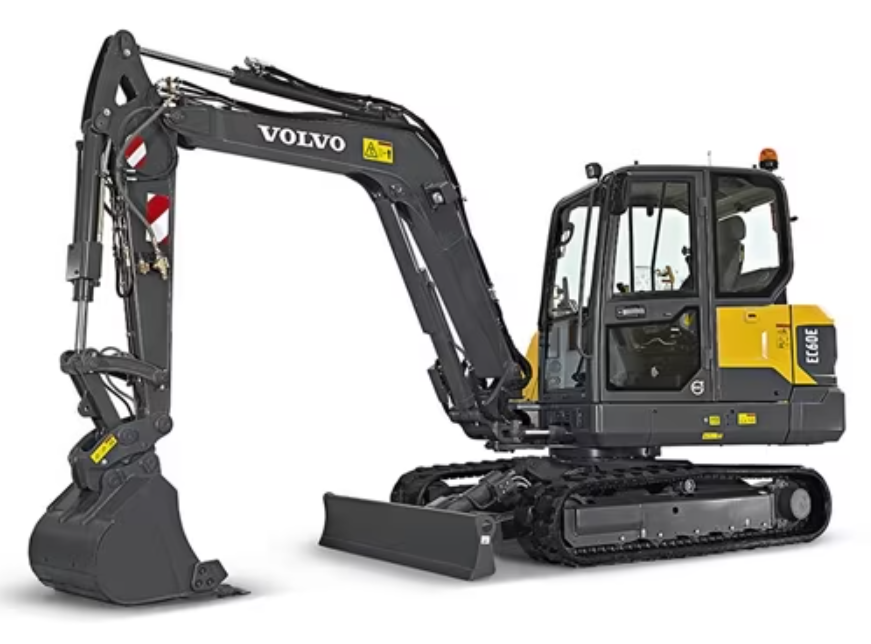

EC60E |
| Engine |
Volvo D2.6H |
| Gross power |
59 hp |
| Net power |
57 hp |
| ...at engine speed |
2,200 rpm |
| Operating weight |
12,700 - 15,440 lbs |
| Bucket capacity |
0.09 - 0.35 yd³ |
| Travel speed, low / high |
1.4 / 2.7 mph |
| Slewing speed |
9.5 rpm |
| Breakout force |
9,720 lbf |
| Tear out force (arm breakout force) |
6,470 lbf |
| Overall width |
6′ 4″ ft in |
| Overall length |
19′ 0″ ft in |
| Main hydraulic pump max. flow |
16 gal/min |
| Boom swing angle, left / right |
70 / 60° |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
