| Model |

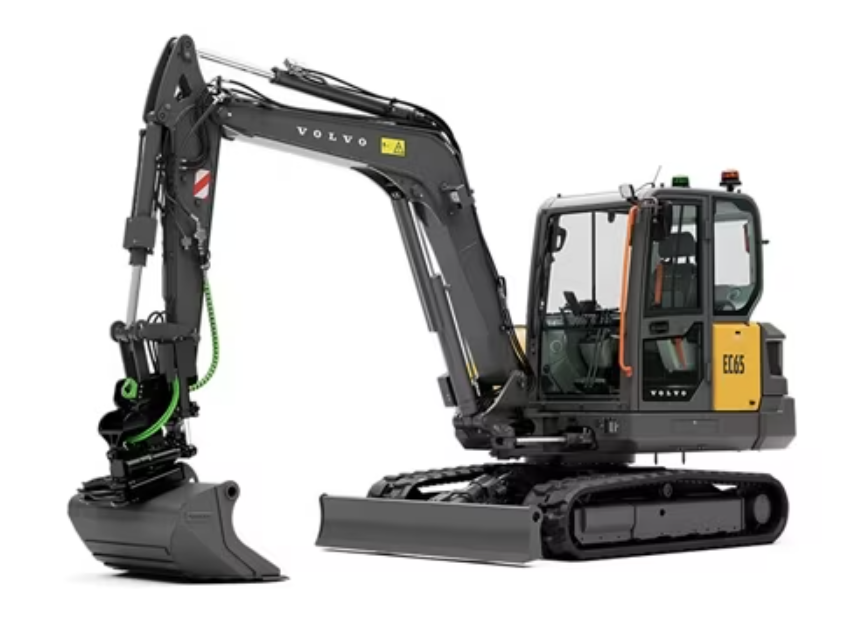

EC65 |
| Engine |
Volvo D2.6H |
| Gross power |
62 hp |
| Net power |
60 hp |
| ...at engine speed |
2,200 rpm |
| Operating weight |
12,680 - 15,020 lbs |
| Bucket capacity |
0.09 - 0.35 yd³ |
| Travel speed, low / high |
2.7 mph |
| Slewing speed |
9.1 rpm |
| Breakout force |
8,470 lbf |
| Tear out force (arm breakout force) |
6,340 lbf |
| Overall width |
6' 2" ft in |
| Overall length |
19'2" ft in |
| Main hydraulic pump max. flow |
32 gal/min |
| Boom swing angle, left / right |
80 / 50° |
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
