| Model |

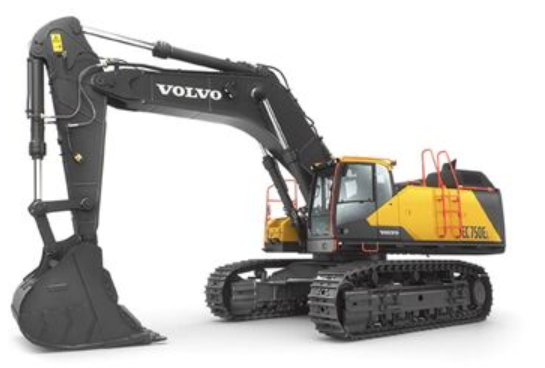

EC750E |
| Operating weight |
162,040 - 166,008 lbs |
| Bucket capacity |
4.3- 6.7 yd³ |
| Lifting capacity, along undercarriage |
67,184 lbs |
| ...at reach / height |
20 / 5 ft |
| Max. digging reach |
37′ 7.2″ ft in |
| Max. digging depth |
|
| Breakout force, SAE J1179 (Normal) |
72,614 lbf |
| Breakout force, SAE J1179 (Boost) |
76,885 lbf |
| Tear out force, SAE J1179 (Normal) |
69,916 lbf |
| Tear out force, SAE J1179 (Boost) |
73,962 lbf |
| Overall width |
14′ 0.9″ ft in |
| Tail swing radius |
|
|
All specifications are approximate. Specifications are subject to change without notice.
|
|
|
